YL9130 Column Compartment

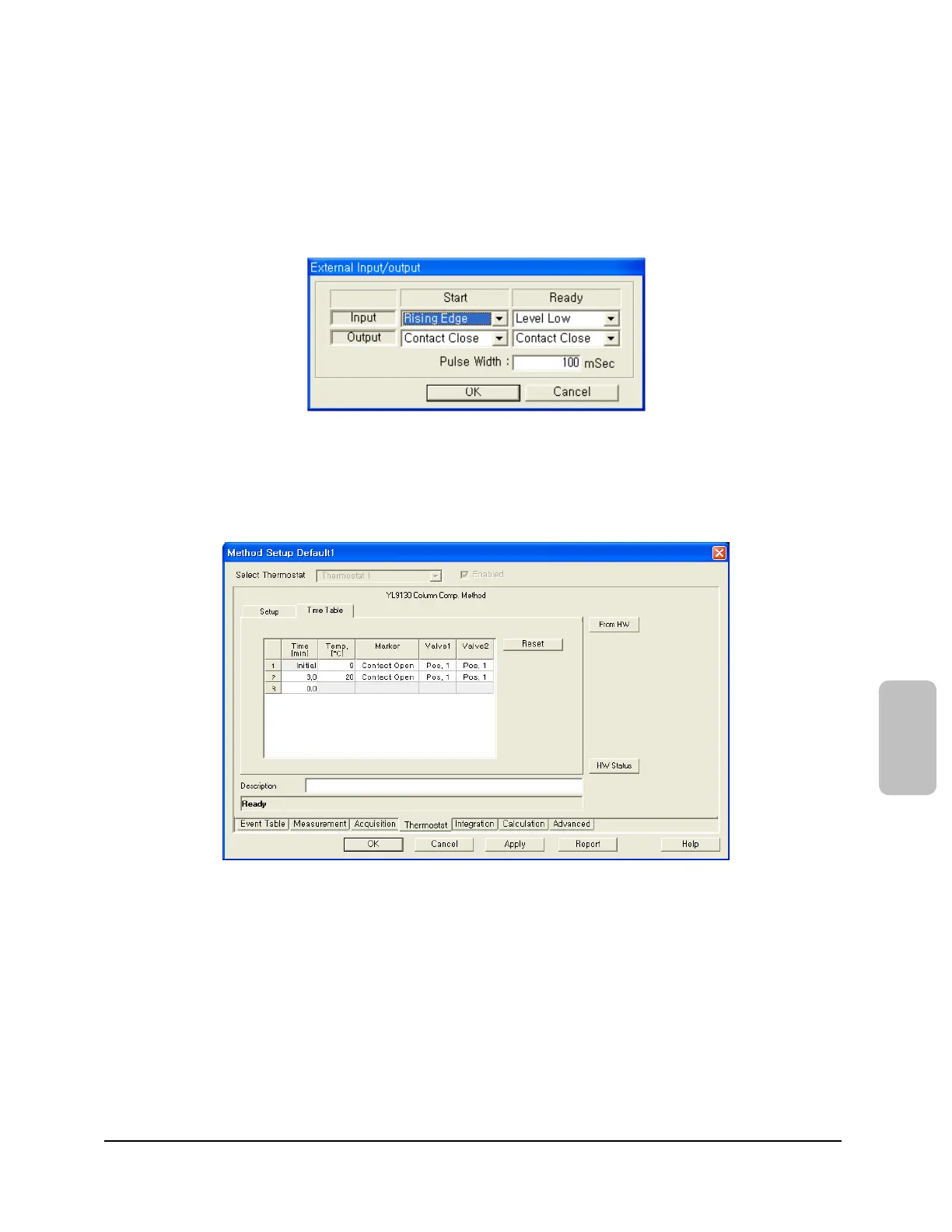

External In/Out
Set external input and output signal. If the signal is opposite when you use with the other device, change it
on the External In/Out Set.
.
Pulse Width
If you select “Pulse” as a external in/out method, set the time of maintaining output signal. The setup
range is 100 ~ 100000 mSec.
L9130
Time Table
It is a table to program temperature, Marker output, Valve position according to time. The temperature
value is limited by limit temperature and consider the temperature unit(℃, ℉, K) selected on the System
Configuration window.
Reset
Delete the lines except first line. First line is same with initial temperature on the Setup Tab.
11
