YL9160 PDA Detector
W Lamp Time : Display used time of W lamp..
W Lamp Status : Display whether W lamp is on or off.

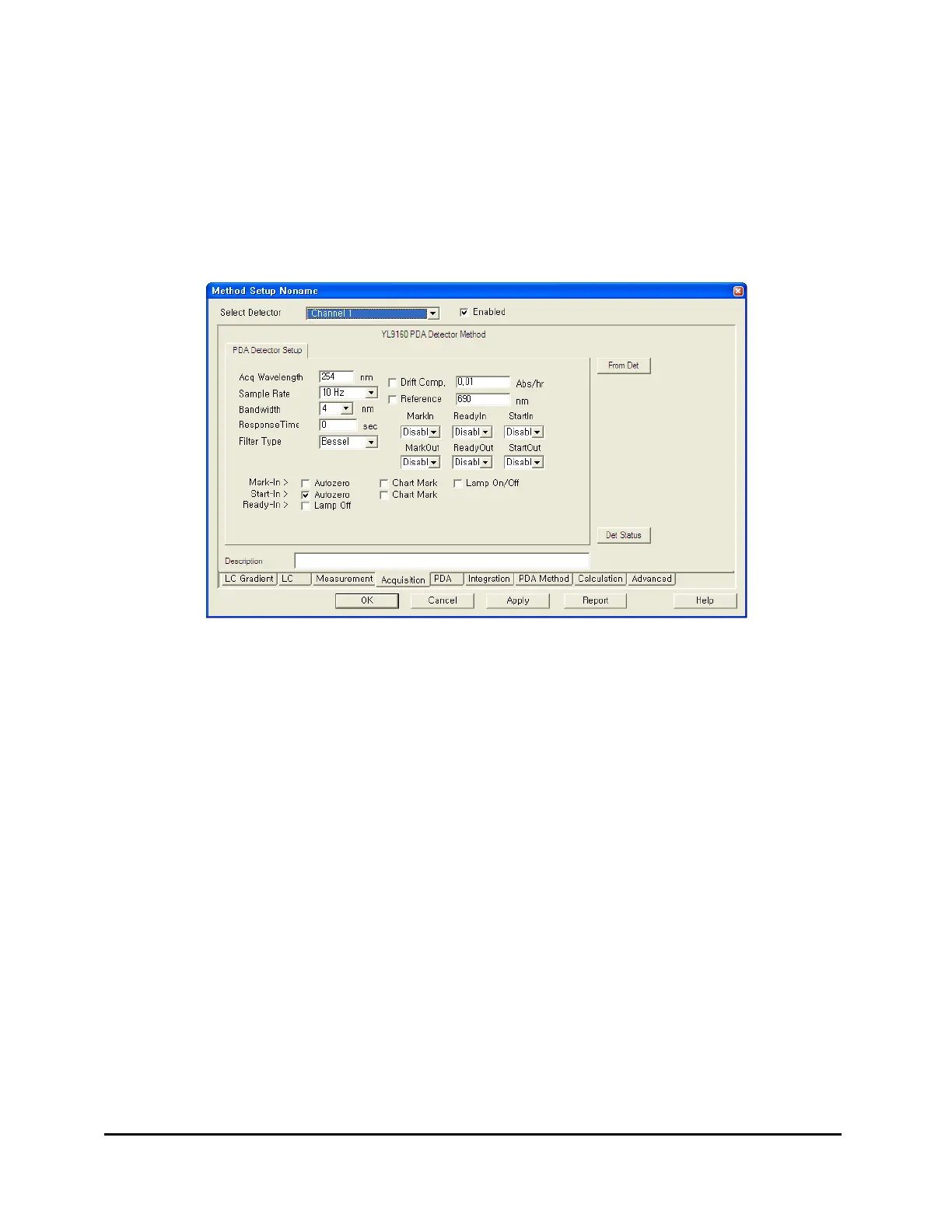

[Setup of acquisition]
In this window, can select acquisition wavelength for each channel. Can specify up to 8 channels and
other parameters except wavelength are applied to all channels.
Acq Wavelength : specify wavelength that want to acquire.
Sampling Rate : input sample rate.
Bandwidth : select bandwidth.
Response Time : input response time for the acquisition date from 0.1 ~ 9.9.
Filter Type : select filter type applied to the response time.
Drift Comp : select if want to compensate drift. If selected, automatically compensate
the drift within the specified valve.
Reference : select if want to compensate drift and specify the wavelength to
use for drift compensation.
Mark-In > : Select Able if want to use Mark-in. Also select Autozero, Char Mark and Lamp on/off if
want to perform any of them when marker is inputted.
Start-In > : Select Able if want to use Start-in. Also select Autozero and Chart Mark when start signal
is inputted.
Ready-In> : Select Lamp Off when Ready-in signal is inputted.
12
