YL9170 RI Detector

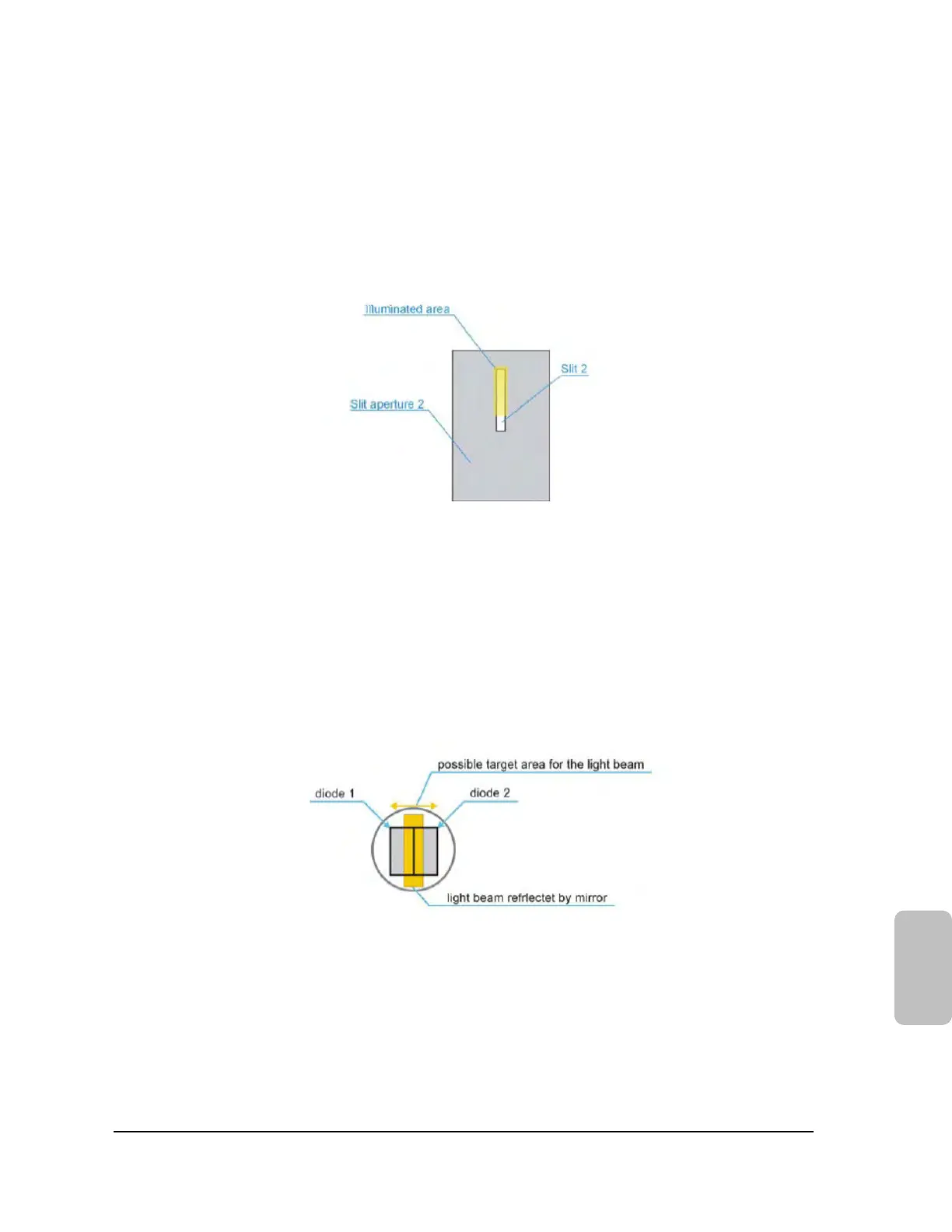

Make sure that only 2/3 of the slit are illuminated by the light source. This is illustrated in the following

figure.

[Slit aperture]

NOTE

The projected picture at the light sensor should be a sharp one. The full height of the photodiodes has to

be illuminated by the light beam. This is shown in the following figure.

L9170

[Photodiode]
