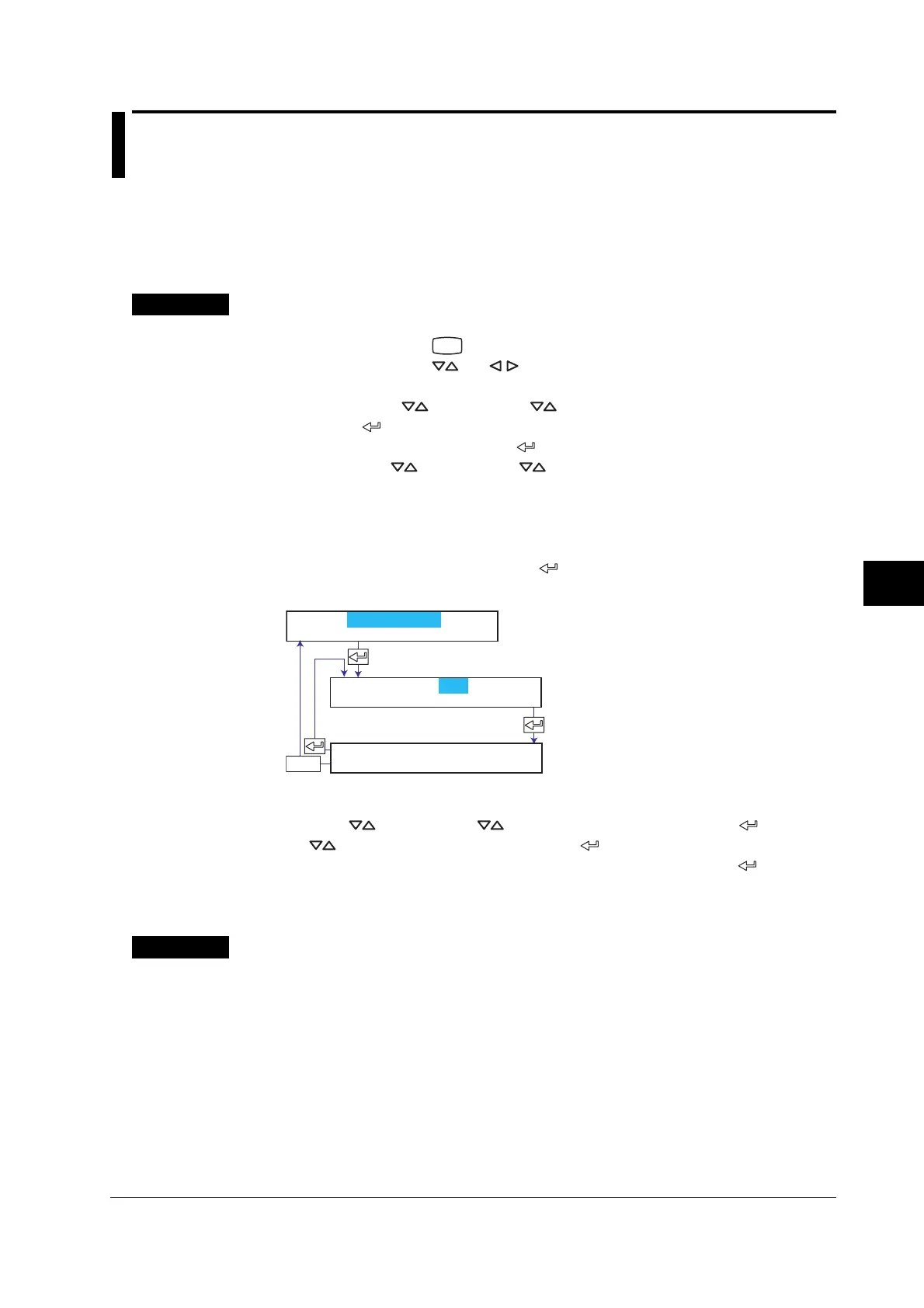

Setup Operations for Changing/Adding Functions (Basic Setting Mode)
7
7.11 Enabling the Moving Average Function (Dot
Model)
This section explains the details of enabling/disabling the moving average function on
the dot model.
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).
Procedure
Changing the Settings
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the
and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3. Press the key or SHIFT + key to select Moving_AVE and then press
the
key.
4. Set each item and press the key.
Use the key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up
to then are cancelled, and the display returns to a higher level menu.
5. When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
Enable/Disable moving average.
The new setting takes effect.
ESC/?
Move AVE
Setting complete
Basic=Moving_AVE
Moving_AVE=Not
Applying the Changes and Returning to Operation Mode
Press the key or SHIFT + key to select End and then press the key. Press
the key to select Store and then press the key. The changes are applied, and
the screen returns to Operation mode. If you select Abort and press the
key, the
changes are discarded, and the screen returns to Operation mode. Press the ESC key
to return to the Basic= screen.
Explanation
Moving_AVE
Use: Enables the setting of the number of samples of the moving average in Setting
mode.
Not: The Moving_AVE item does not appear in Setting mode.
<Related Topics>
Setting the moving average function: Section 6.3
