Operations Related to the Computation Function (/M1 Option)
9
9.3 Setting the Unit
This section explains the details of setting the unit on computation channels.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Press the
key or SHIFT + key to select Math and then press the
key.
3. Press the key or SHIFT + key to select Unit and then press the
key.
4. Set each item and press the key.
Use the key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up
to then are cancelled, and the display returns to a higher level menu.
5. When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
6. Hold down the
MENU
key for 3 seconds to return to Operation mode.

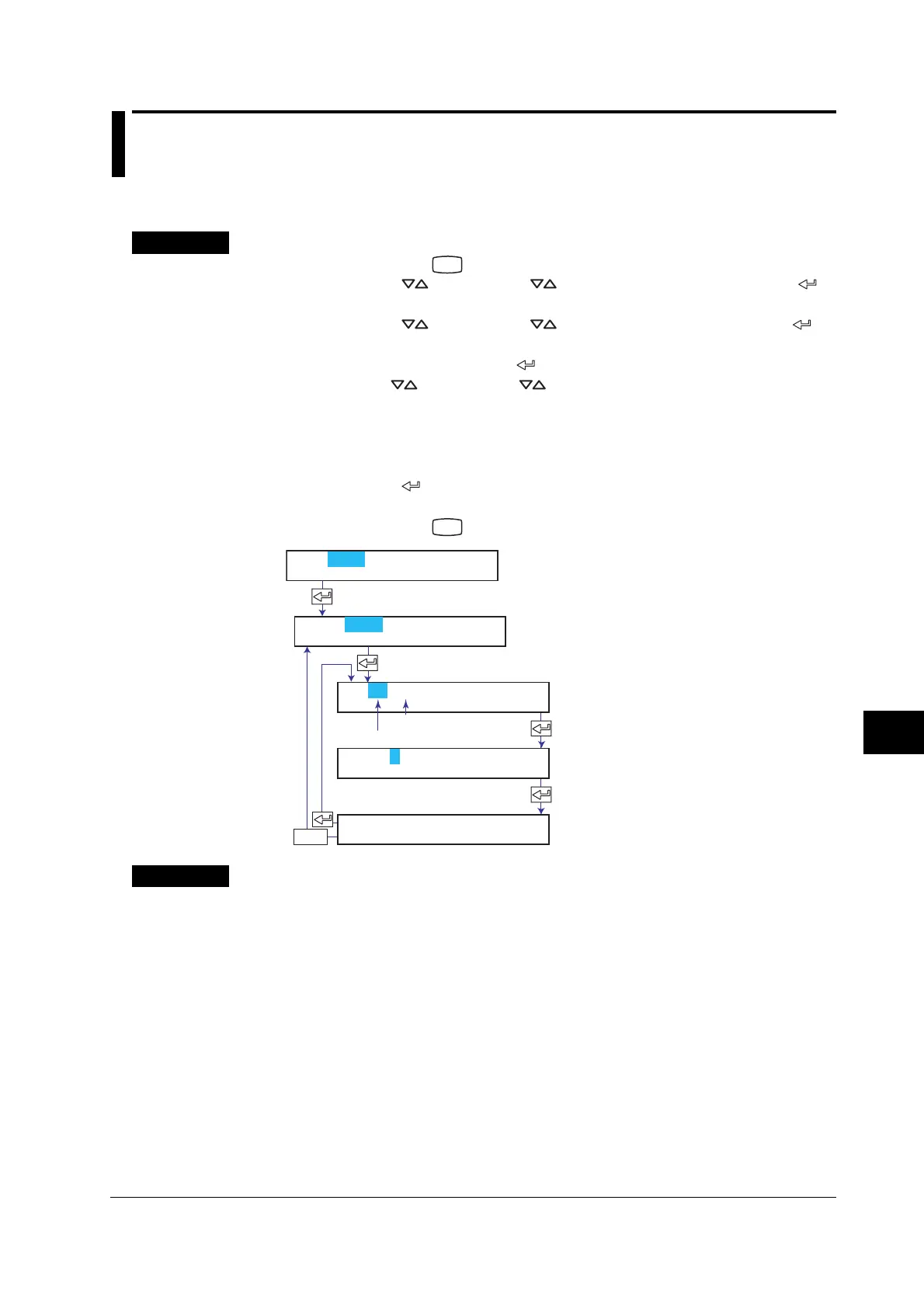

Set the channel range.
The new setting takes effect.
ESC/?
Set the unit.
First channel
Last channel
0A-0A Channel
Setting complete
Set=Math
Math=Unit
CH=0A-0A
Unit=
Explanation
Characters That Can Be Used for Units
Set the unit using up to 6 characters.
The available characters are as follows:
Alphabet, numbers, symbols (%, #, °, @, +, –, *, /, (, ), µ, Ω,
2
,
3
, .), and space
