YOKOGAWA 436101 User Manual

9-23
IM 04P02B01-01E
Operations Related to the Computation Function (/M1 Option)
9

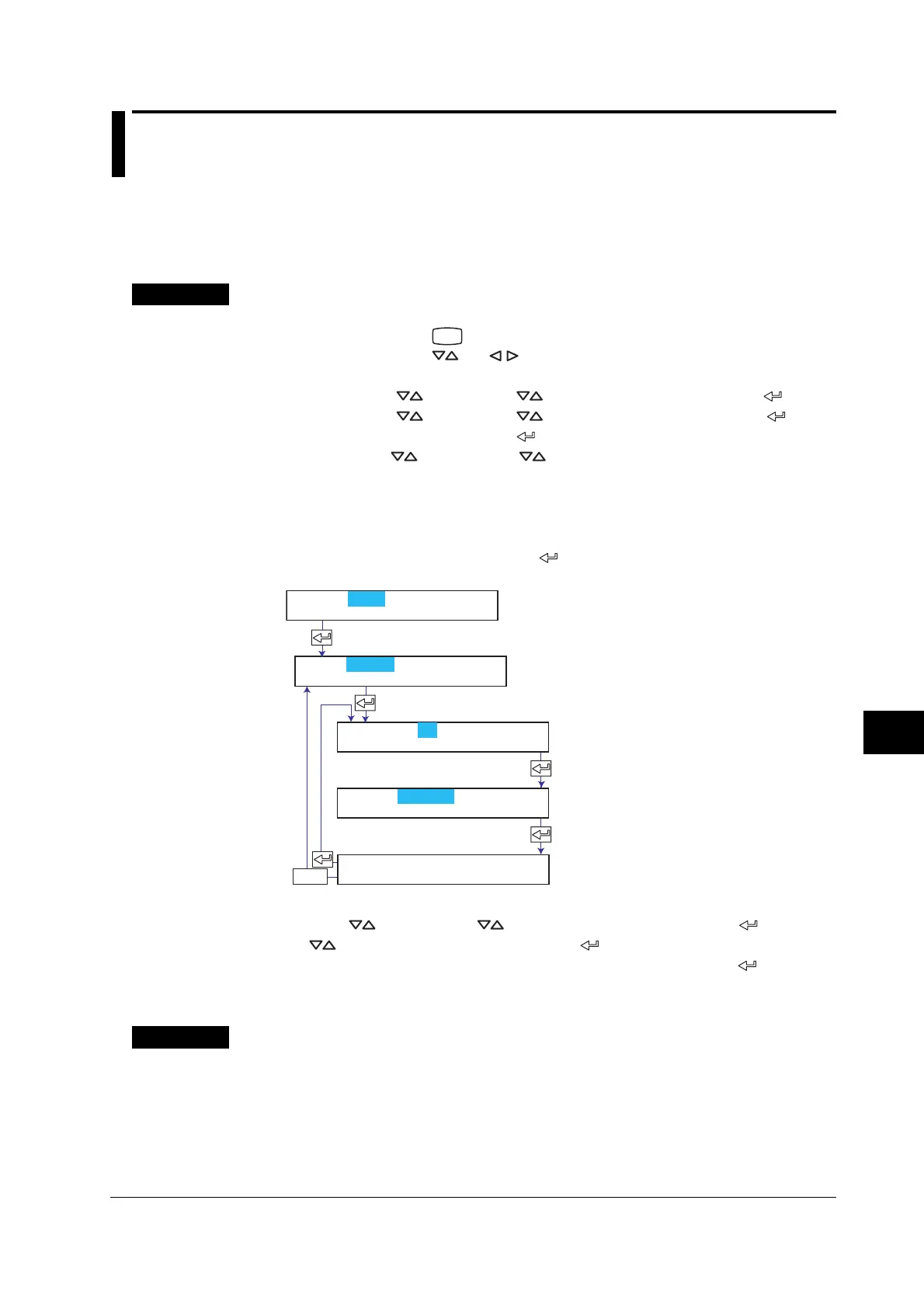

9.13 Changing the Channel Recording Color (Dot
Model)
This section explains the details of changing the recording colors of computation
channels.
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).
Procedure
Changing the Settings
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3. Press the
key or SHIFT + key to select Math and then press the key.
4. Press the key or SHIFT + key to select Color and then press the key.
5. Set each item and press the
key.
Use the key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up
to then are cancelled, and the display returns to a higher level menu.
6. When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
Select the channel.
The new setting takes effect.
ESC/?
Select the recording color.
0A Channel color
Setting complete
Basic=Math
Math=Color
Channel=0A
Color=Purple
Applying the Changes and Returning to Operation Mode
Press the key or SHIFT + key to select End and then press the key. Press
the
key to select Store and then press the key. The changes are applied, and
the screen returns to Operation mode. If you select Abort and press the key, the
changes are discarded, and the screen returns to Operation mode. Press the ESC key
to return to the Basic= screen.
Explanation
Color
This section explains the details of changing the recording colors of computation
channels.
The default values are as follows:
Purple: Channels 0A, 0G, 1A, and 1G. Red: Channels 0B, 0J, 1B, and 1J.
Green: Channels 0C, 0K, 1C, and 1K. Blue: Channels 0D, 0M, 1D, and 1M.
Brown: Channels 0E, 0N, 1E, and 1N. Black:Channels 0F, 0P, 1F, and 1P.
