App-2
IM 04P02B01-01E
• Scale
Prints the leftmost and rightmost values of the recording span and the channel
number or tag for channels that have scale printout specified. The scale is printed for
one channel at each periodic printout. The channel whose scale is printed changes in
ascending order. The scale of channels that are being zone recorded is printed within
the recording range of the zone.
• Recording color
Prints the recording colors of channels that have scale printout and recording color
printout specified.
• Chart speed
Prints the chart speed.

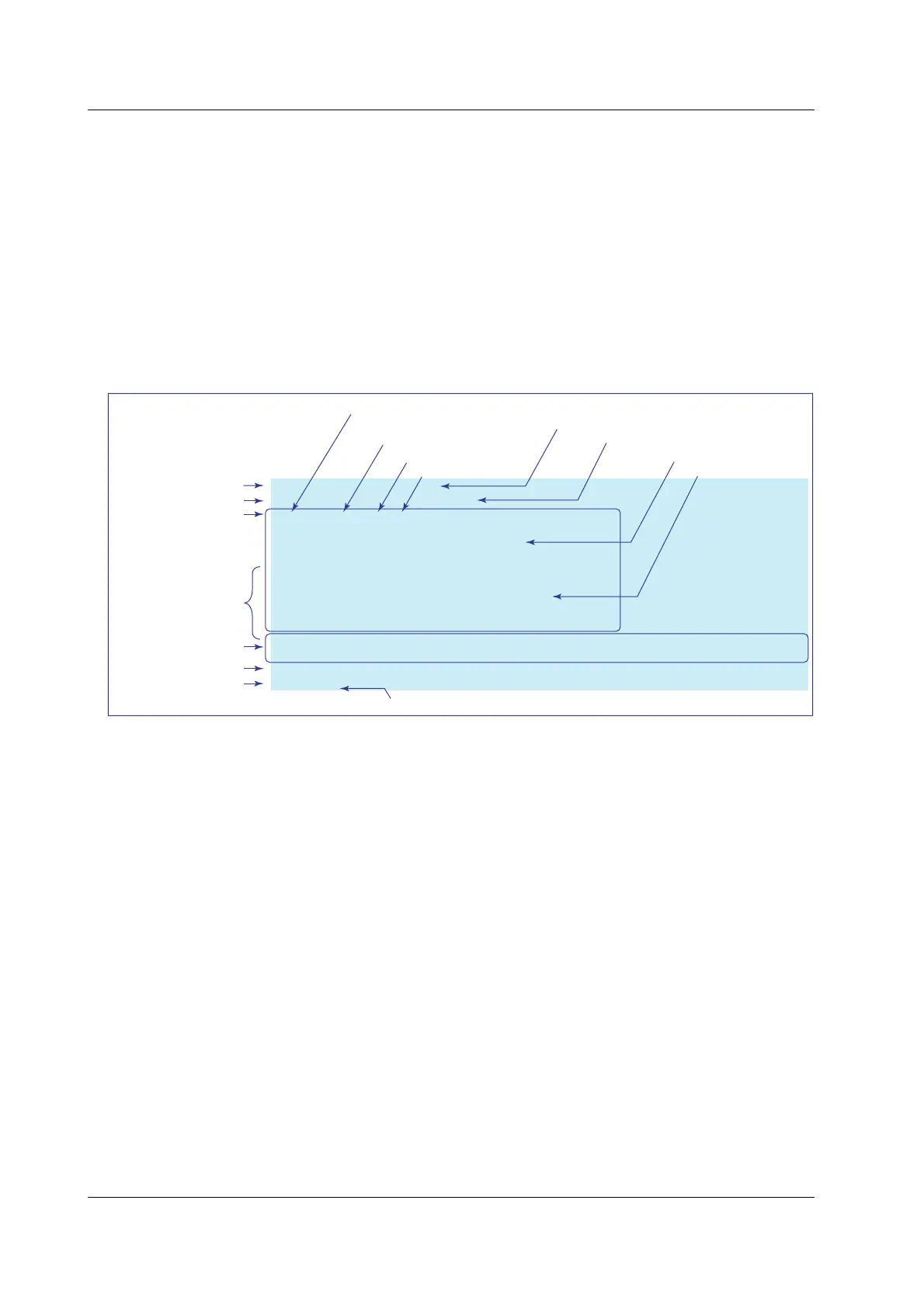

Report Mode
Time tick cancel mark
Offset compensation mark/event
Sum value
Min./Max./Ave.
Unit
Range change
occurrence mark
Measured value
Channel No. or tag
Report start date/time
Report end date/time
Channel data
Computation channel
Scale
Recording color
Chart speed
Time tick
Mar.31.2004 15:00!
-Apr.01.2004 15:00*TPR
TAG-001*1.000V
2 -1.000V
3 -2.105500E+03UNIT03
4 2.000V
TAG-00A 1UNIT0A
C *1.00
D -10.00/150.00/100.00UNIT0D
E 1.0000%
J -1.00UNIT0J
0.000 2.000
TAG-001 V
RED
50mm/h_
• Report start date/time and report end date/time
The start date/time and end date time of the report (statistical calculation) (periodic
printout interval).
• Time tick and time tick cancel mark
These are the same as with the instantaneous mode.
• Offset compensation mark
This is the same as with the instantaneous mode.
• Event
Prints the events that occurred in the interval.
T: Time change
P: Power failure or power OFF/ON
R: Data reset
• Channel data
Prints the channel numbers (1 to 6 or A to J) or tags, report data, and unit.
An asterisk (*) is printed for channels whose range type was changed in the interval.
On the printout of the minimum, maximum, and average values, the channel number
is printed even if a tag name is assigned to the channel.
• Scale, recording color, and chart speed
These are the same as with the instantaneous mode.
Appendix 1 Periodic Printout and Printout Using the TLOG Timer (/M1 Option)
