7. Install a new ribbon cassette.
First, insert the right-hand part and then the left-hand part into the cassette holder.
Check that the cassette is properly engaged with the cassette holder tab.
If inserting the ribbon cassette is difficult, turn the ribbon feeding knob in the
direction of the arrow to align the ribbon feeding shaft of the cassette with the
ribbon feeding shaft hole of the holder.

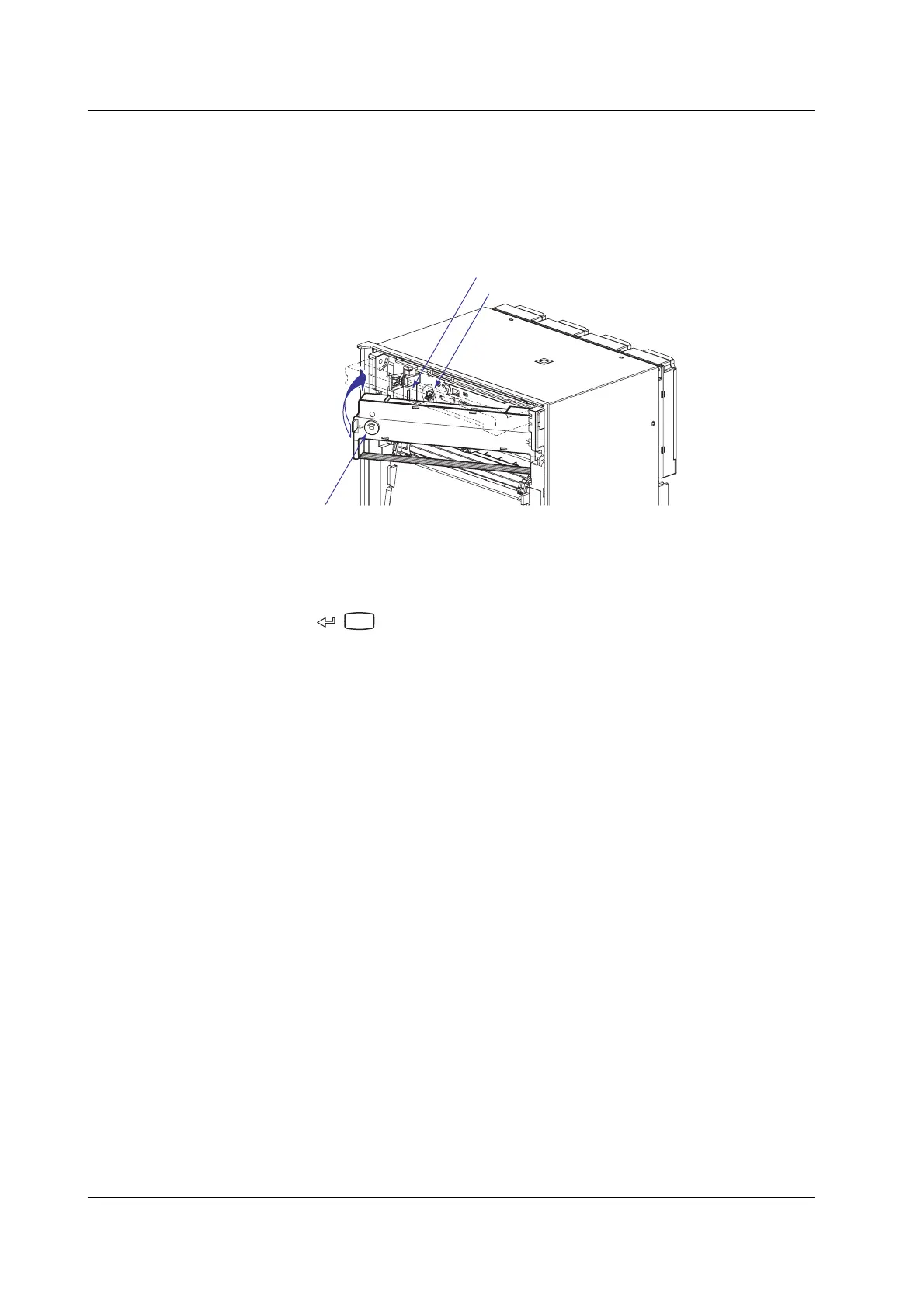

Groove for the ribbon cassette stopper
Ribbon feed shaft
Ribbon feeding knob
8. Turn the ribbon feeding knob in the direction of the arrow a half turn or more to
check that the ribbon is feeding properly. If the ribbon is loose, turn the knob in
the direction of the arrow to tighten it.
9. Return the display and key panel section to its original position, and press the
(
CH UP
) key.
The screen returns to the data display screen.
3.4 Installing/Replacing the Ribbon Cassette (Dot Model)
