YOKOGAWA 436101 User Manual

5-3
IM 04P02B01-01E
Frequently Used Setup Operations (Setting Mode)
5

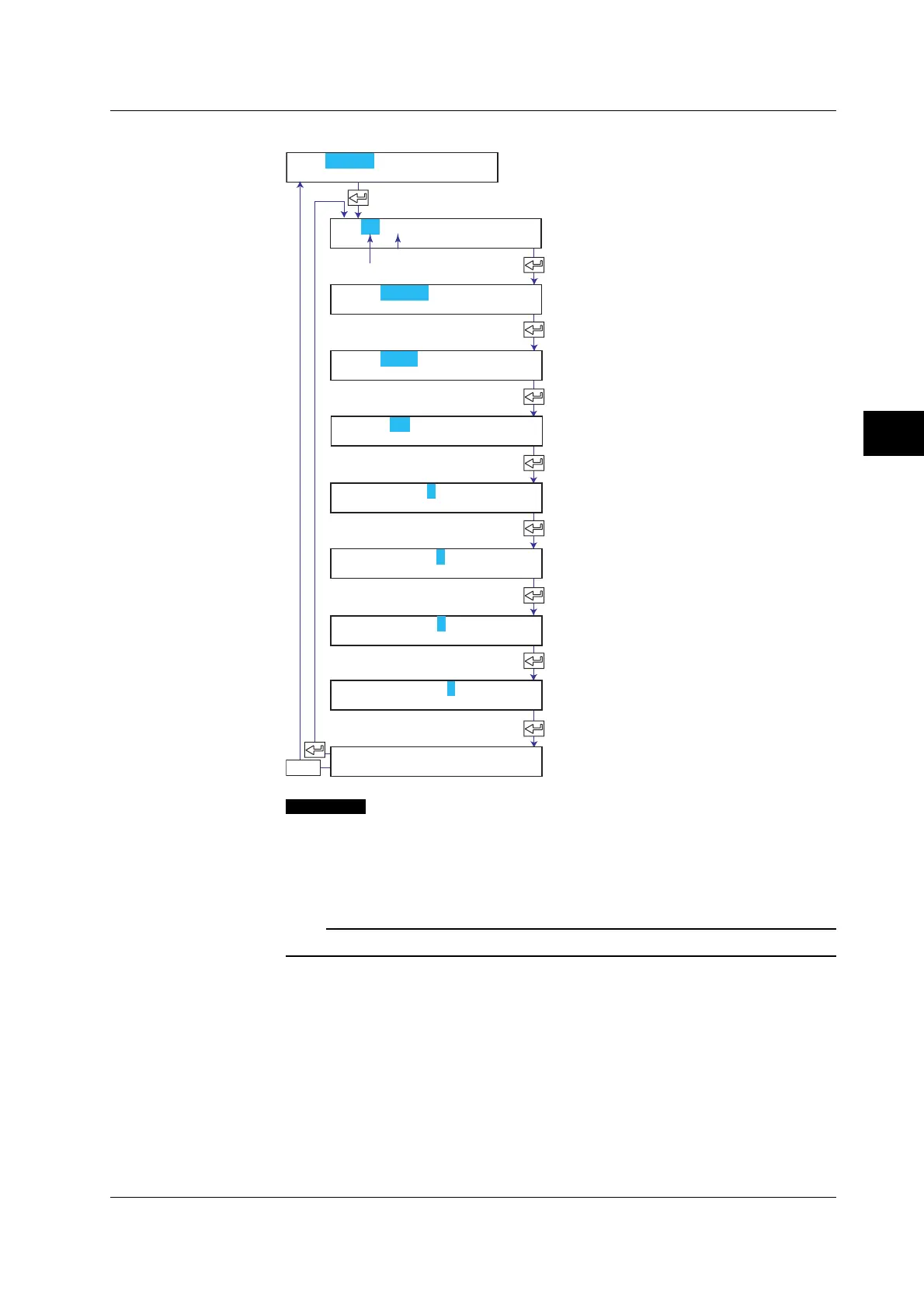

Linear Scaling
Select Scale.
Set the channel range.
Select Volt, TC, RTD, or DI.
Select the range type.
Set the left span value.
Set the right span value.
Set the left scale value.
Set the right scale value.
The new setting takes effect.
ESC/?
Set=Range
CH=01-01
Mode=Scale
Type=Volt
Range=2V
Span left= -2.000
Span right= 2.000
Scale left= 0.00
Scale right= 200.00
01-01 Channel
Setting complete
First channel
Last channel
Description
• Scale Left and Scale Right
Selectable range (mantissa): –20000 to 30000
Decimal position: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX
The decimal position is the position specified by scale left.
Note
The displayable/printable range of scale values is –19999 to 30000 excluding the decimal.
5.1 Setting the Input range
