YOKOGAWA AQ6375E User Manual

1-1
IM AQ6375E-02EN
1
2
3
4
5
6
App
Index
Part Names and Functions
Chapter 1 Part Names and Functions

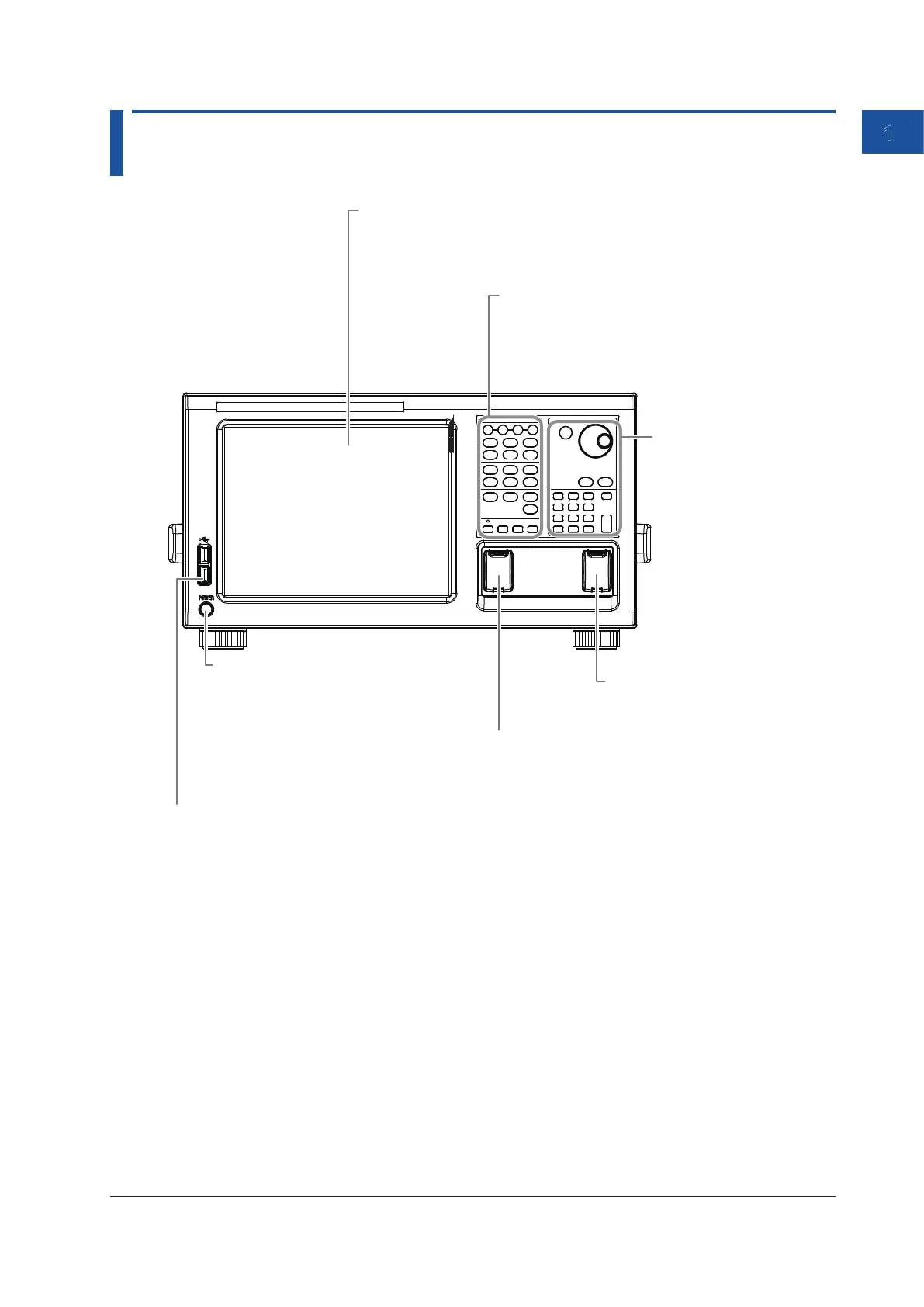

1.1 Front Panel
DATA ENTRY section
Used for measurement
condition parameter input,
label input, etc.
For details on the keys,
see "DATA ENTRY
Section " in section 1.3.
FUNCTION section
Used to enter settings pertaining to all
measurements (sweep, measurement conditions,
data analysis, and various functions). For details on
the keys, see "DATA ENTRY Section " in section
1.3.
OPTICAL INPUT
Optical input connector. For
details on the usable optical
fiber cables, see section 3.9.
POWER
Used to start and shut down the
instrument. For details on the Power
ON/OFF, see section 3.3.
USB interface
Used to connect USB storage media. For details on the devices, see section 3.2.
Touch panel
Displays measured waveforms, measurement conditions, measured
values, and various controls.
For details on the LCD screen, see section 1.4. For details on touch panel
operations, see section 4.1.
CALIBRATION OUTPUT
Reference light source optical
output connector used for alignment
adjustments and wavelength
calibration (when the built-in light
source specification is -L1), see
section 3.5.
