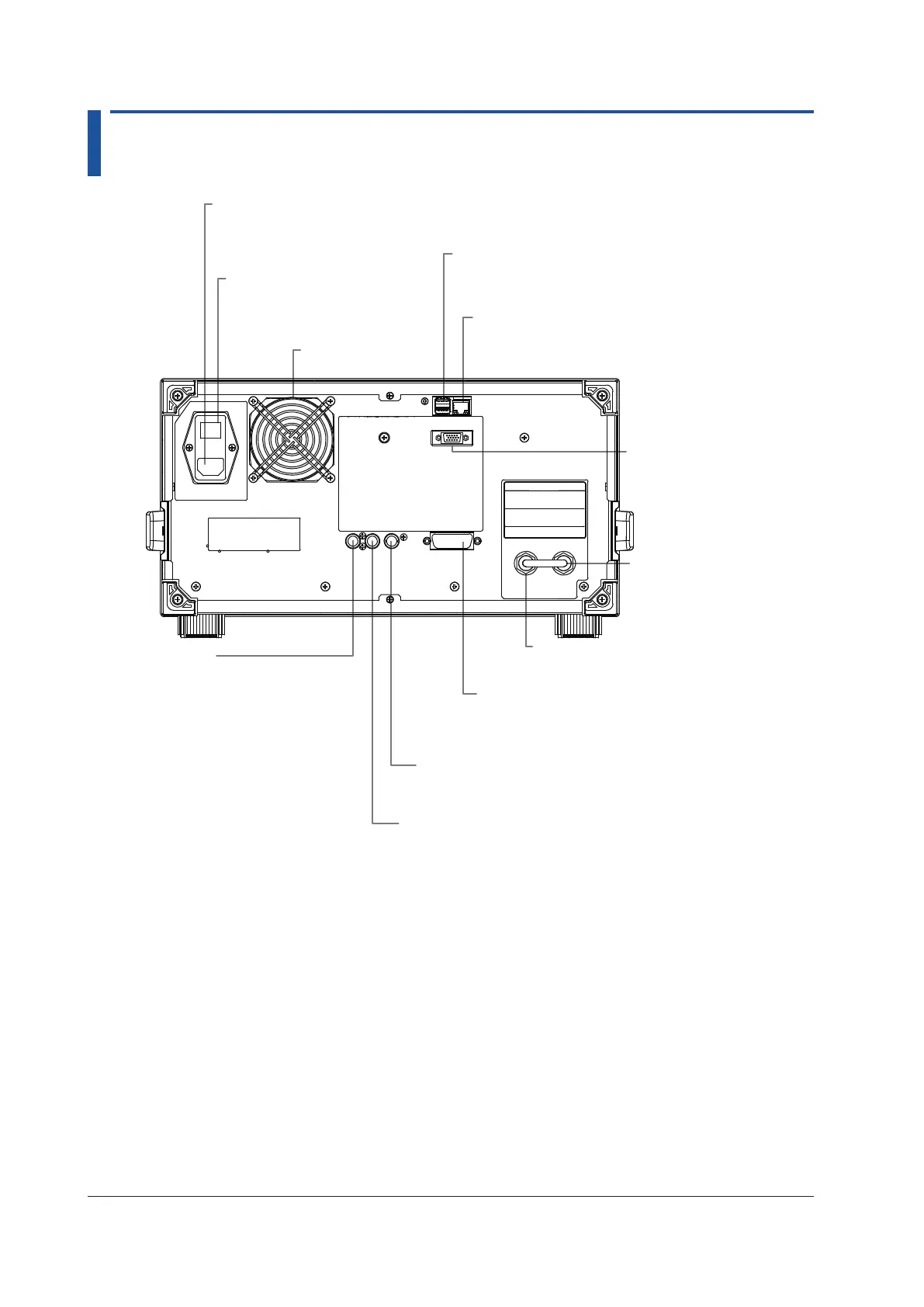

1.2 Rear Panel
ETHERNET
Ethernet Interface. For details on the Ethernet,
see section 9.5 in IM AQ6375E-01EN.
USB interface
Used to connect USB storage media. For details on
the devices, see section 3.2.
VIDEO OUT (XGA)
Analog RGB video signal
interface.
GAS IN
Purge gas filling port.
For details on the
purge, see section 3.6.
GAS OUT
Purge gas outlet port. For details on
the purge, see section 3.6.
GP-IB
GP-IB port for controlling this unit through an
external computer. For details on the GP-IB,
see chapter 2 in IM AQ6375E-17EN.
TRIGGER IN
Trigger input. For details on the
trigger input, see section 3.5 in
IM AQ6375E-01EN.
ANALOG OUT
Analog output. For details on the analog output,
see section 3.7 in IM AQ6375E-01EN.
TRIGGER OUT
Trigger output. For details on the trigger output, see section
3.6 in IM AQ6375E-01EN.
Exhaust holes
MAIN POWER
Used to turn the main power
ON/OFF. For details on the
Power ON/OFF, see section 3.3.
Power cord connector
Connect the power cord to this
connector. For details on the Power
cord, see section 3.3.
