Note

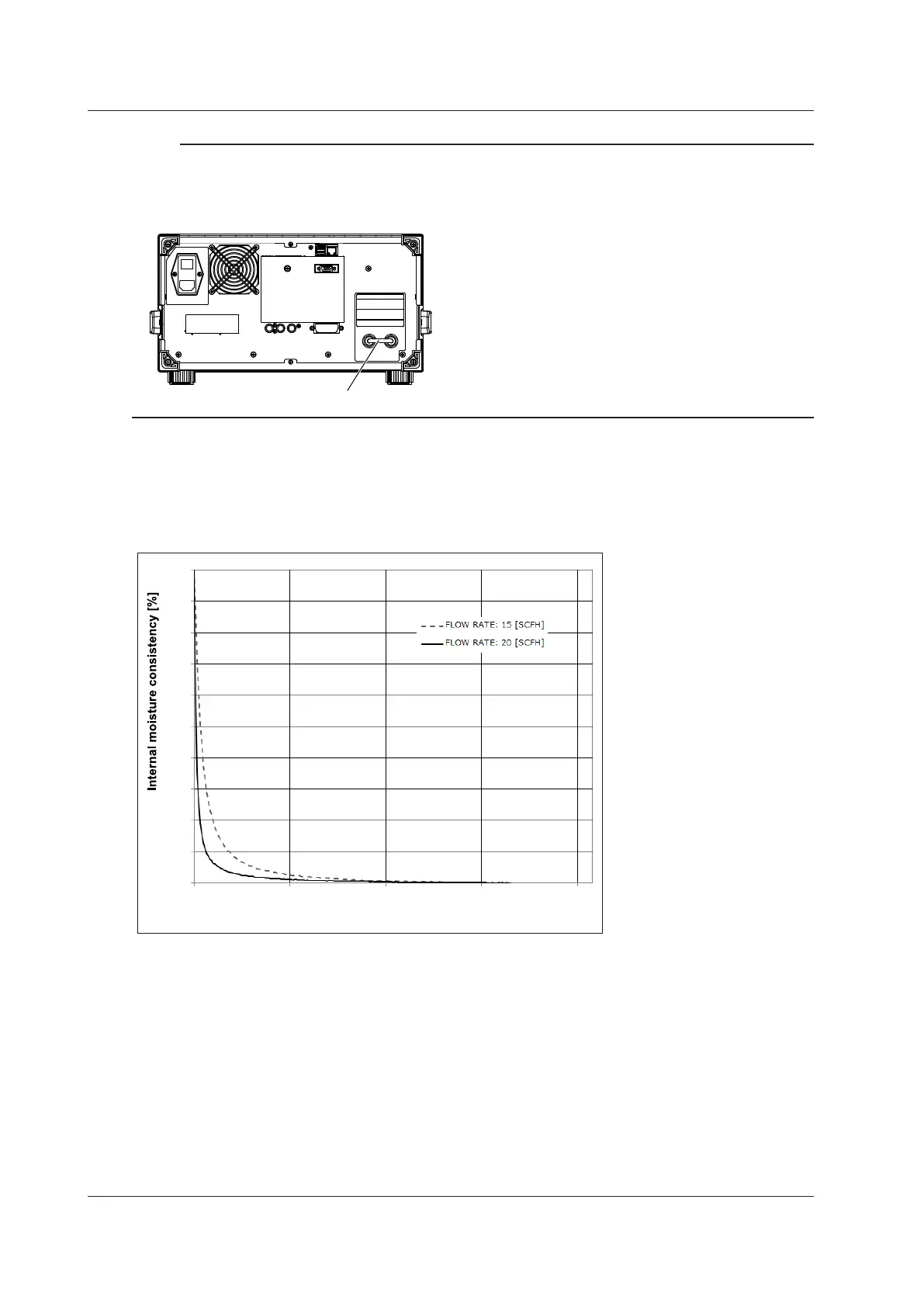

When the AQ6375E is shipped from the factory, a resin tube is attached to the PURGE GAS IN and PURGE
GAS OUT terminals to prevent dust from entering the inside.
When installing required equipment and components, remove this resin tube.
The recommended purge gas flow rate into the AQ6375E is 15 to 20 SCFH (7 to 9.5 L/min).
The figure below shows the purge efficiency by 20 SCFH pure nitrogen gas flow rate.
Purge efficiency of the AQ6375E
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.00 0.30 1.00 1.30 2.00
Elapsed time [hour]
3.6 Purge
