YOKOGAWA AQ6375E User Manual

Preparing for Measurement
3-27
IM AQ6375E-02EN
1
2
3
4
5
6
App
Index
Connecting Optical Fibers
5.
Open the instrument’s optical input connector cover.
6.
Connect the optical fiber’s optical connector to the optical input connector on the instrument.

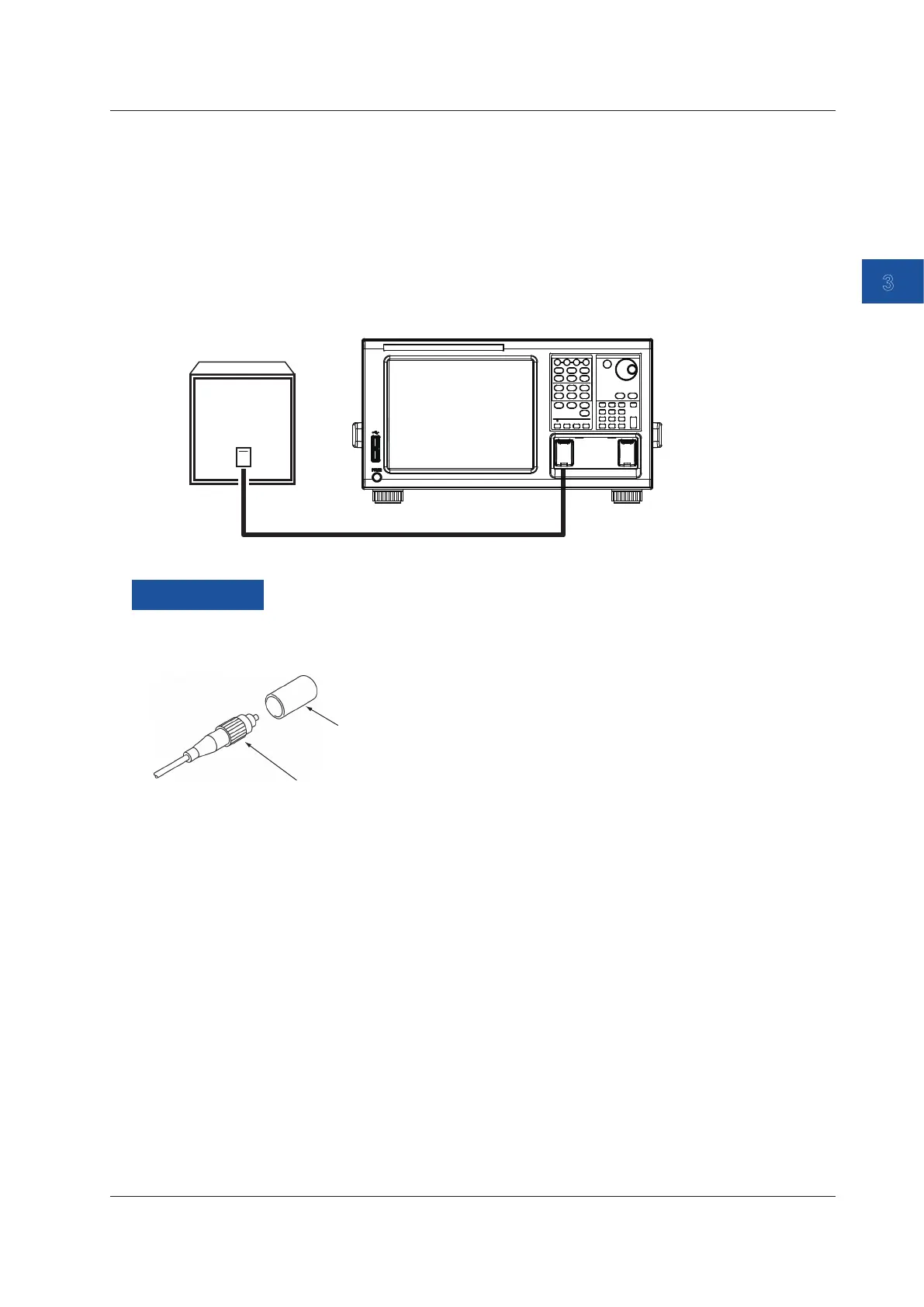

Connecting the DUT (Light Source)
7.
Clean the top of the optical connector on the other end of the optical fiber with a fiber cleaner.
8.
Connect the optical connector on the other end of the optical fiber to the optical connector on
the DUT.
Light source
9.5/125 μm Single mode MIR optical fiber
AQ6375E
Explanation
Optical Connectors Types
The instrument can use FC type optical connectors.
FC type optical connector
Cap
3.7 Connecting the DUT
