9-8
IM 701510-01E

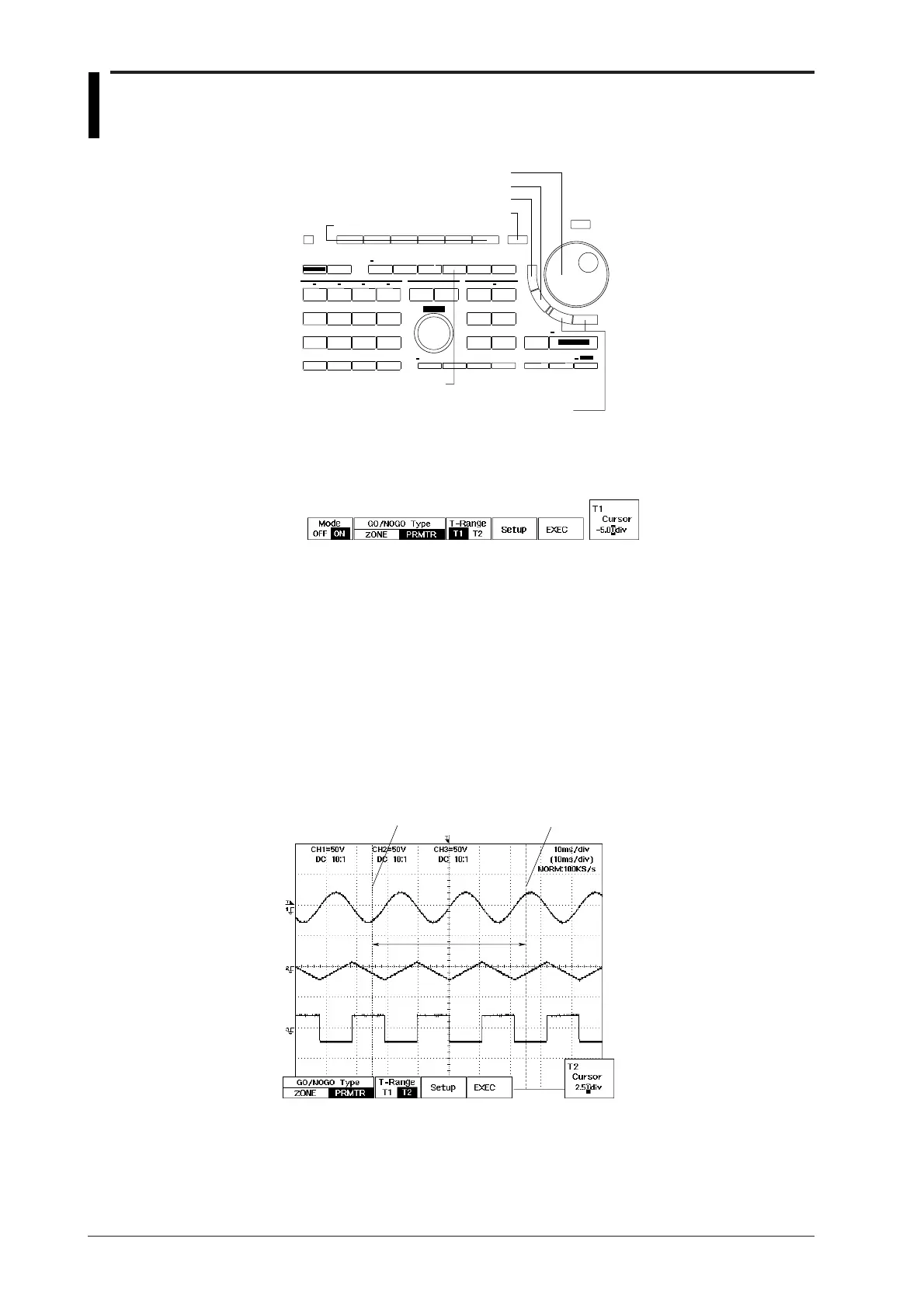

9.2 Judging using Measured Values of Waveform
Parameters
Operating Procedure
1. Press the GO/NO-GO key to display the GO/NO-GO setting menu.
2. Press the “Mode” soft key and select “ON”. The GO/NO-GO top menu appears.
3. Press the “PRMTR” soft key. The default setting is “ZONE”.
The parameters which can be selected/set at this setting consist of the following.
• Determination range (refer to page 9-8);
• Determination conditions, such as parameter setup, determination logic, sequence
determination, and action after determination (refer to page 9-9, 9-10);
• Executing/aborting determination after setting/selecting the parameters. (refer to page 9-
10).
Setting the determination range
4. After having pressed the “T-Range” soft key, select either “T1” or “T2” to set either
boudary of the determination range. Then use the rotary knob to edit the boundary
position. You may also use the < or > keys. Do this for both the left (T1) and right side
boundary (T2).
T1 cursor T2 cursor
Determination range
Relevant Keys
Rotary knob
Soft keys
SELECT key
ESC key
<, > keys
GO/NO-GO key
RESET key
To Next Page
