3-5
IM 701510-01E
Before Starting Observation and Measurement of Waveforms
3
3.4 Connecting the Power Cord
Before Connecting the Power
Make sure that you perform the following steps before connecting the power. Failure to do
so may cause electric shock or damage to the instrument.
WARNING
• Connect the power cord after confirming that the voltage of the power
supply complies to the rated electric power voltage for this instrument.
• Connect the power cord after confirming that the power switch is OFF.
• Always use protective ground to prevent electric shock. Connect the
accessory power cord to a power outlet with grounding terminal.
• Do not use non-grounding extension cords or other measures that defect
the protective grounding.
• Never use an extension cord that does not have protective grounding,
otherwise the protection feature will be negated.
Connecting the Power Cord
1. Make sure that the main power switch is OFF.
2. Plug the power cord into the power connector socket on the rear panel of the instrument.
3. Plug the other end of the power cord into an AC outlet that meets the following
specifications. The AC outlet must be of 3-pin type with a protective grounding
terminal.
Item DL1540, DL1540L DL1520, DL1520L
Suffix code -1 and -5 Suffix code -1 Suffix code -5
Rated supply voltage 100 to 120 VAC/220 to 240 VAC 100 to 120 VAC 200 to 240 VAC
Permitted supply voltage range 90 to 132 VAC/180 to 264 VAC 90 to 132 VAC 180 to 264 VAC
Rated supply voltage frequency 50/60 Hz 50/60 Hz 50/60 Hz
Permitted supply voltage frequency range 48 to 63 Hz 48 to 63 Hz 48 to 63 Hz
Maximum power consumption 220 VA/280 VA 130 VA 140 VA
(when the built-in printer is used)
Typical power consumption 150 VA (at 100 VAC) 75 VA (at 100 VAC) 85 VA (at 200 VAC)
(when the built-in printer is not used) /190 VA (at 200 VAC)

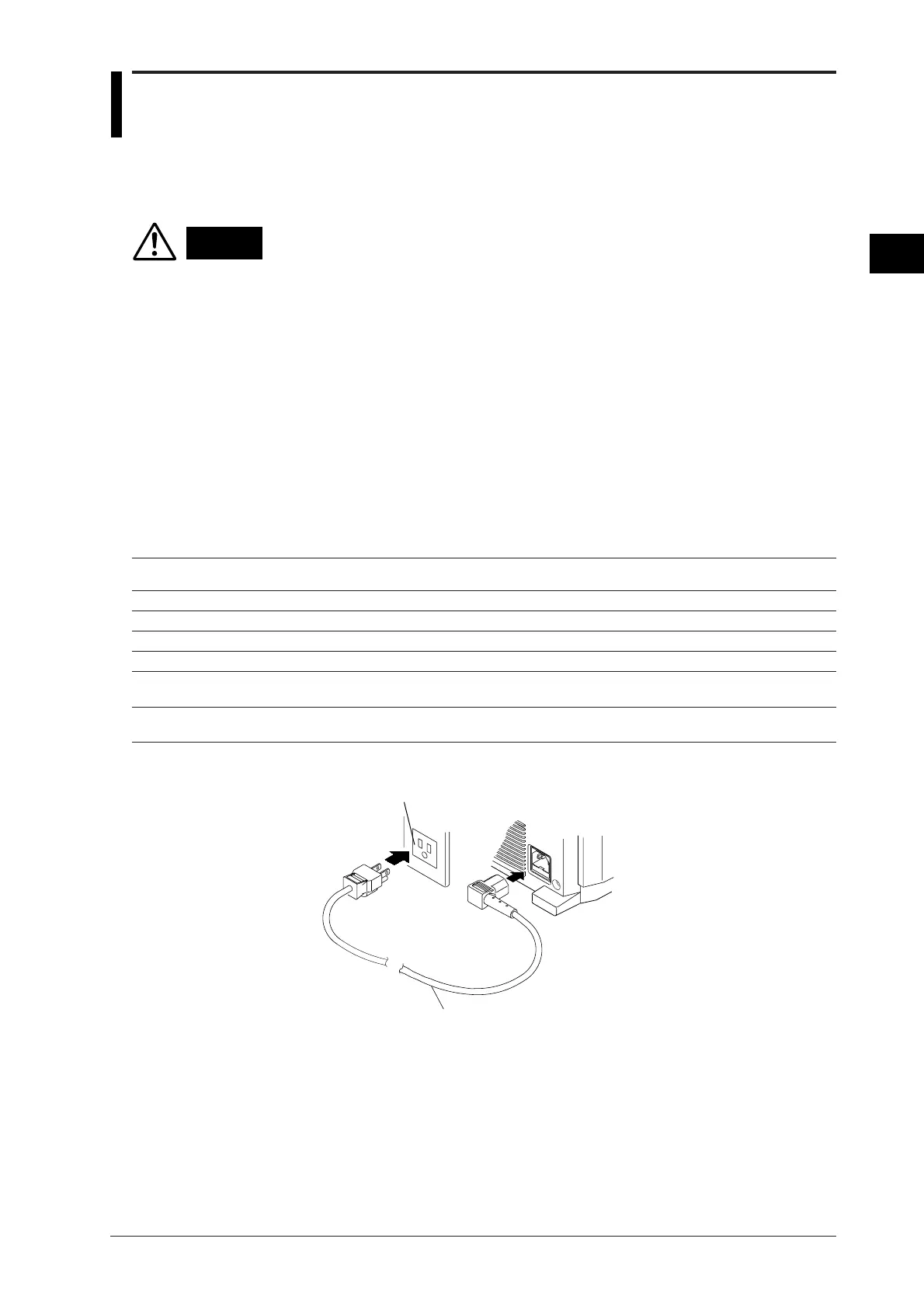

3-pin AC outlet
Power cord
(supplied with instrument)
To Next Page
