8.2 Measuring an X-Y Waveform using Cursors

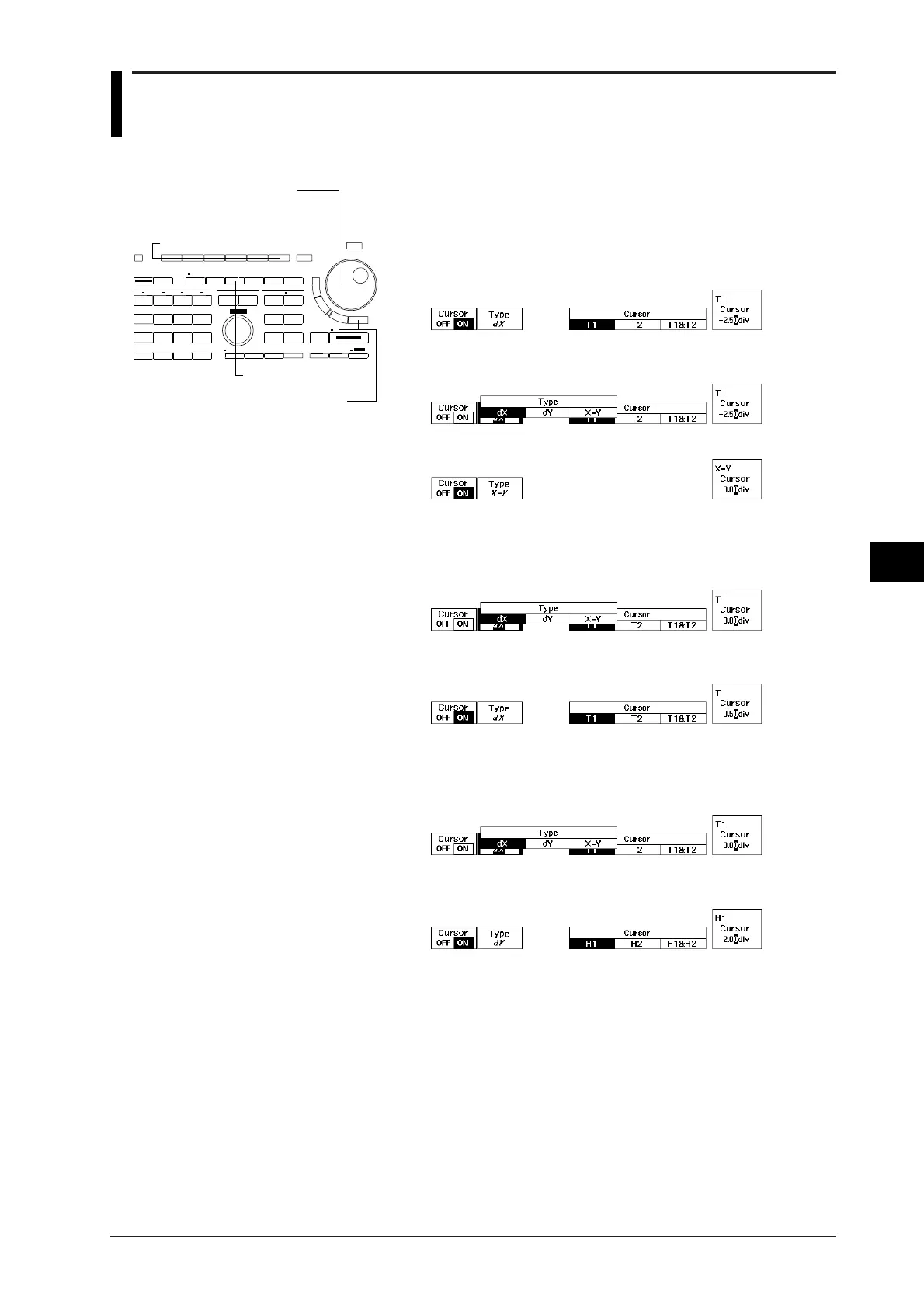

1. Display both the T-Y and the X-Y waveform in the same display.
2. Press the CURSOR key to display the cursor measurement setting
menu.
3. Press the “Cursor” soft key and select “ON”.
4. Press the “Type” soft key to display the measurement type selection
menu.
Measuring time difference/ voltage using the X-Y cursors
5. Press the “X-Y” soft key. The X-Y cursors will appear on the screen.
6. Use the rotary knob to adjust the position of the X-Y cursor.
Measuring only voltage difference on the X axis using the vertical
cursors
5. After step 4 has been completed, press the “dX” soft key to display the
cursor setting menu. The vertical cursors will appear on the screen.
6. After having pressed any of the “T1”, “T2” or “T1&T2” soft keys, use
the rotary knob to adjust the position of the cursor.
Measuring only voltage difference on the Y axis using the
horizontal cursors
5. After step 4 has been completed, press the “dY” soft key to display the
cursor setting menu. The horizontal cursors will appear on the screen.
6. After having pressed any of the “H1”, “H2” or “H1&H2” soft keys,
use the rotary knob to adjust the position of the cursor.
Explanation
Channel assignment for the X-Y axis
X-axis Input voltage of CH1
Y-axis Input voltage of CH2
Waveforms which cannot be measured
For waveforms which cannot be measured, refer to page 8-2.
Keys and Procedure
CURSOR key
Rotary knob
Soft keys
<, > keys
