7-11
IM 701510-01E
Changing Acquisition and Display Conditions
7

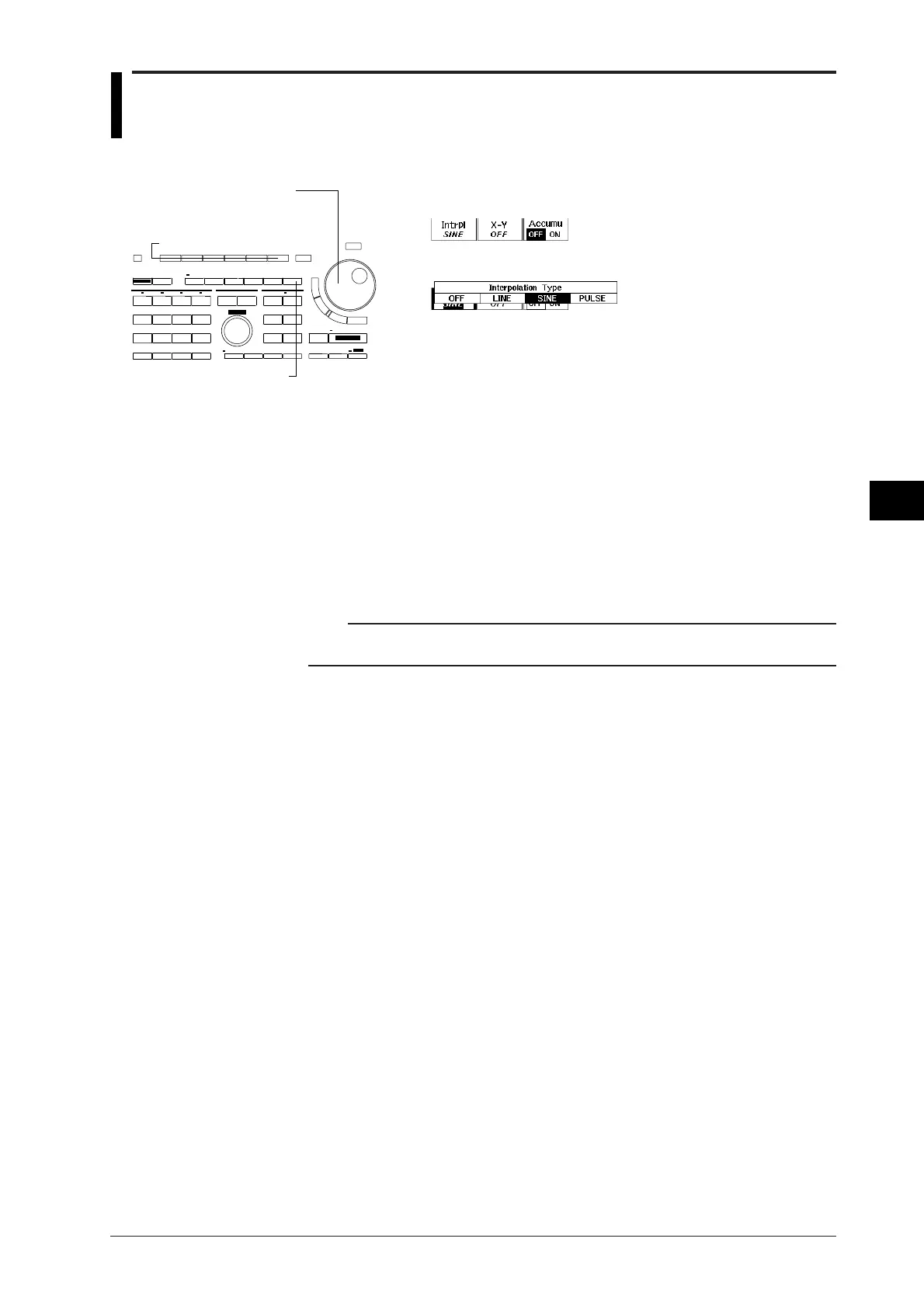

7.6 Changing the Interpolation Settings
1. Press the DISPLAY key to display the setting menu.
2. Press the “Intrpl” soft key to display the interpolation selection menu.
3. Press the soft key corresponding to the desired interpolation type.
Explanation
Selecting the interpolation type: Intrpl
The following four interpolation types are available. The default is “SINE”.
OFF No interpolation; Displays the sampling data as a horizontal line.
LINE Interpolates between two dots with a straight line.
SINE Generates interpolation data using a sine function and interpolates between two
dots using a sine curve.
PULSE Draws a horizontal line to a point directly above or below the next data point and
then interpolates using two dots so that the end of the horizontal line is connected
to the next data point by a vertical line.
Note
LINE, SINE and PULSE can only be selected if the number of display points per division is 50 or less.
OFF can always be selected.
Keys and Procedure
DISPLAY key
Royary knob
Soft keys
