2-26
IM DL350-03EN
2.10 Connecting Probes
720254 (4CH 1M16)
Maximum input voltage (at a frequency of 1 kHz or less)
In combination with an safety probe (10:1) 700929 or (100:1) 701947 or a wide
temperature range type (10:1) 7029021
600 V (DC + ACpeak)
In combination with a safety cable (1:1) (701901+701954)
3
200 V (DC + ACpeak) (as a value that meets the safety standard)
400 V (DC + ACpeak) (maximum allowable voltage, as a value that does not damage
the instrument when applied)
Direct input (cable that does not comply with the safety standards)
5
42 V (DC + ACpeak)
Maximum rated voltage to ground (at a frequency of 1 kHz or less)
In combination with an safety probe (10:1) 700929 or (100:1) 701947 or a wide
temperature range type (10:1) 7029022, or a safety cable (1:1) (701901+701954)
4
400 Vrms (measurement category Other (O))
300 Vrms (CAT II)

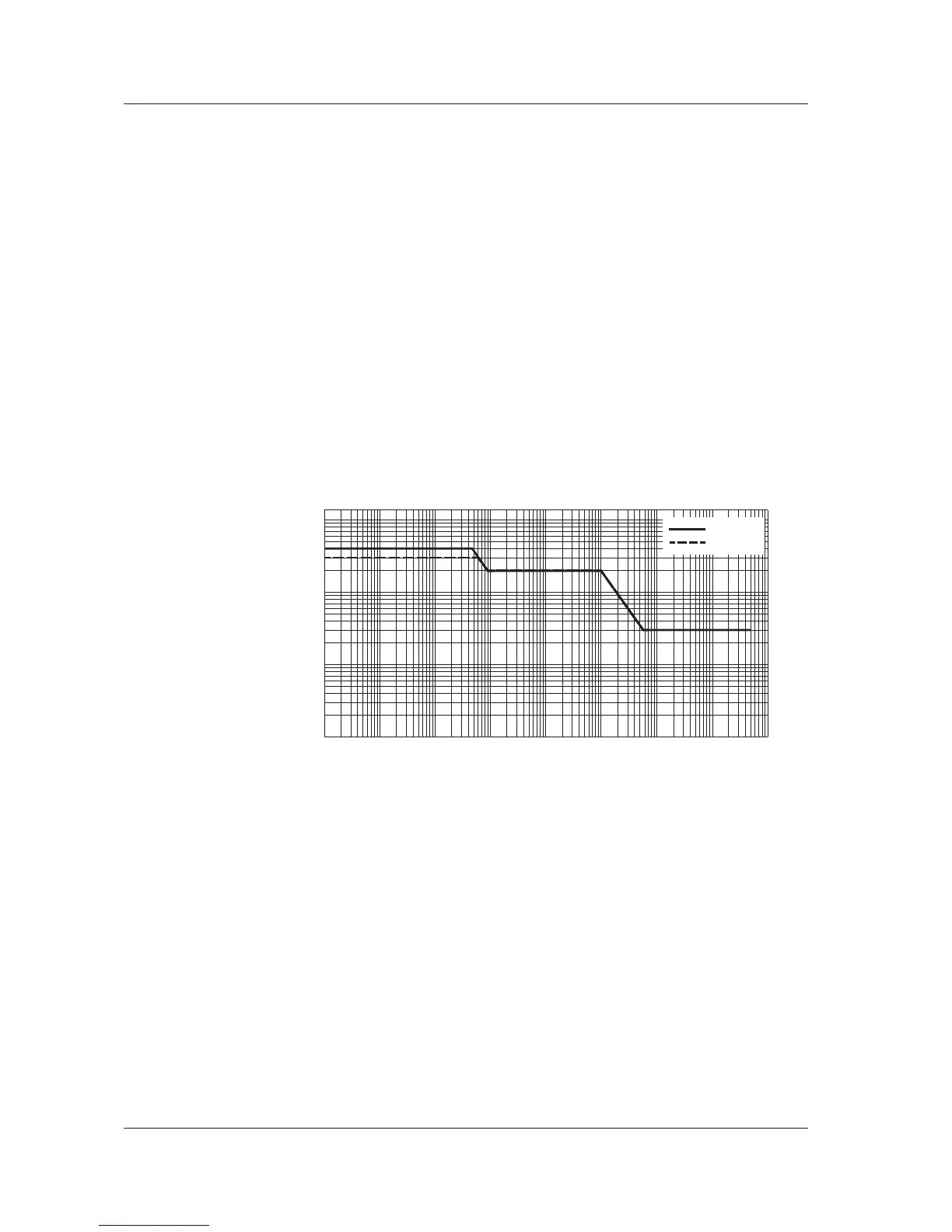

Depending on the frequency of the signal applied to the L input and the measurement
category, the maximum rated voltage to ground of the L input of the safety probe and
safety cable is as shown in the following graph.
10
100
1 10 100 1000 10000 100000
Frequency [Hz]
Maximum rated voltage to ground [Vrms]
720254
100000
1000
1000000
10000000
1
O(Other)
CAT II
Direct input (cable that does not comply with the safety standards)
6
42 V (DC + ACpeak) (CAT II, 30 Vrms)
