5-6
IM DLM3054-01EN

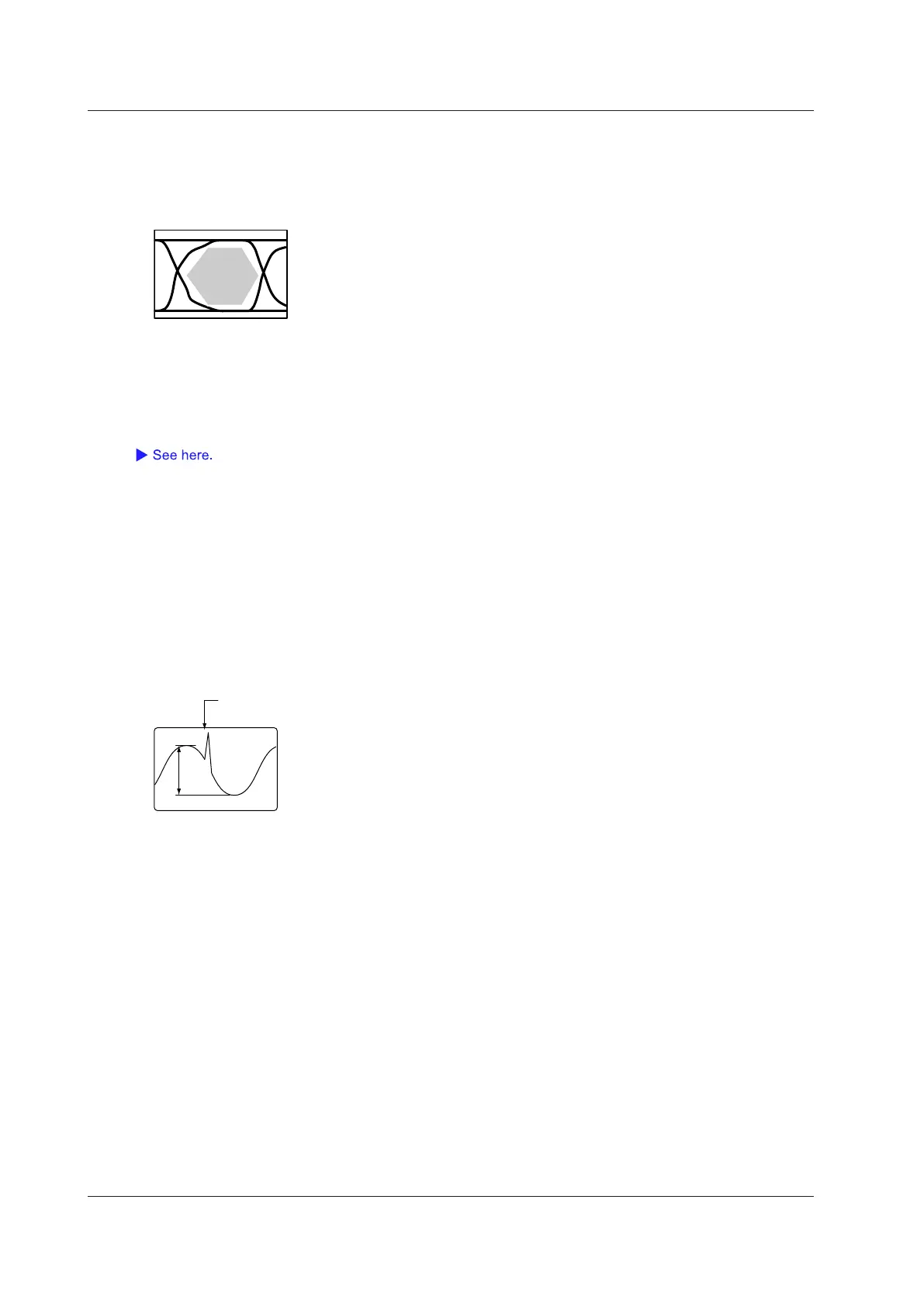

Creating a Polygonal Zone (PolygonZone)
You can use polygonal zones by using polygon images. You can create polygon images by using the Mask
Editor Software on a PC. You can create up to four polygonal zones and use one of them for GO/NO-GO
determination.
You can download the Mask Editor Software from the YOKOGAWA website.
Loading a Polygon Image
Using the FILE Menu, load a polygon image into the specified zone (Zone No.1 to 4).
Determination Source Window (Range)
Select the GO/NO-GO determination source window. The selection process is the same as with the rectangular
zone.
Selecting the Polygonal Zone (Zone No.)
Select the zone number that contains the polygon image that you want to use for determination.
Moving the Polygonal Zone (V-Position, H-Position)
You can move the loaded polygon image vertically or horizontally.
Selectable V-Position range: ±4 divisions
Selectable H-Position range: ±5 divisions
Setting the Reference Range Using a Waveform Parameter (Parameter)
Set upper and lower limits on a measured item obtained through the automated measurement of waveform
parameters.
P-P
When the NO-GO determination condition is set to OUT,
a no-go judgment is made here.
Selecting the Measured Item to Use for Determination (Item)
The selectable item varies depending on the determination source waveform (Trace) that you selected.
• CH1 to CH8, Math1 to Math4: All measurement items
• LOGIC: Freq, Period, Avg Freq, Duty, Pulse Count, Delay
• XY1, XY2: Integ only
• FFT1, FFT2: Peak cursor only
Reference Range (Upper/Lower)
Set the upper and lower limits of the reference range.
5 Executing Actions
To Next Page
