14-1
IM DLM3054-01EN
14 Searching Waveforms

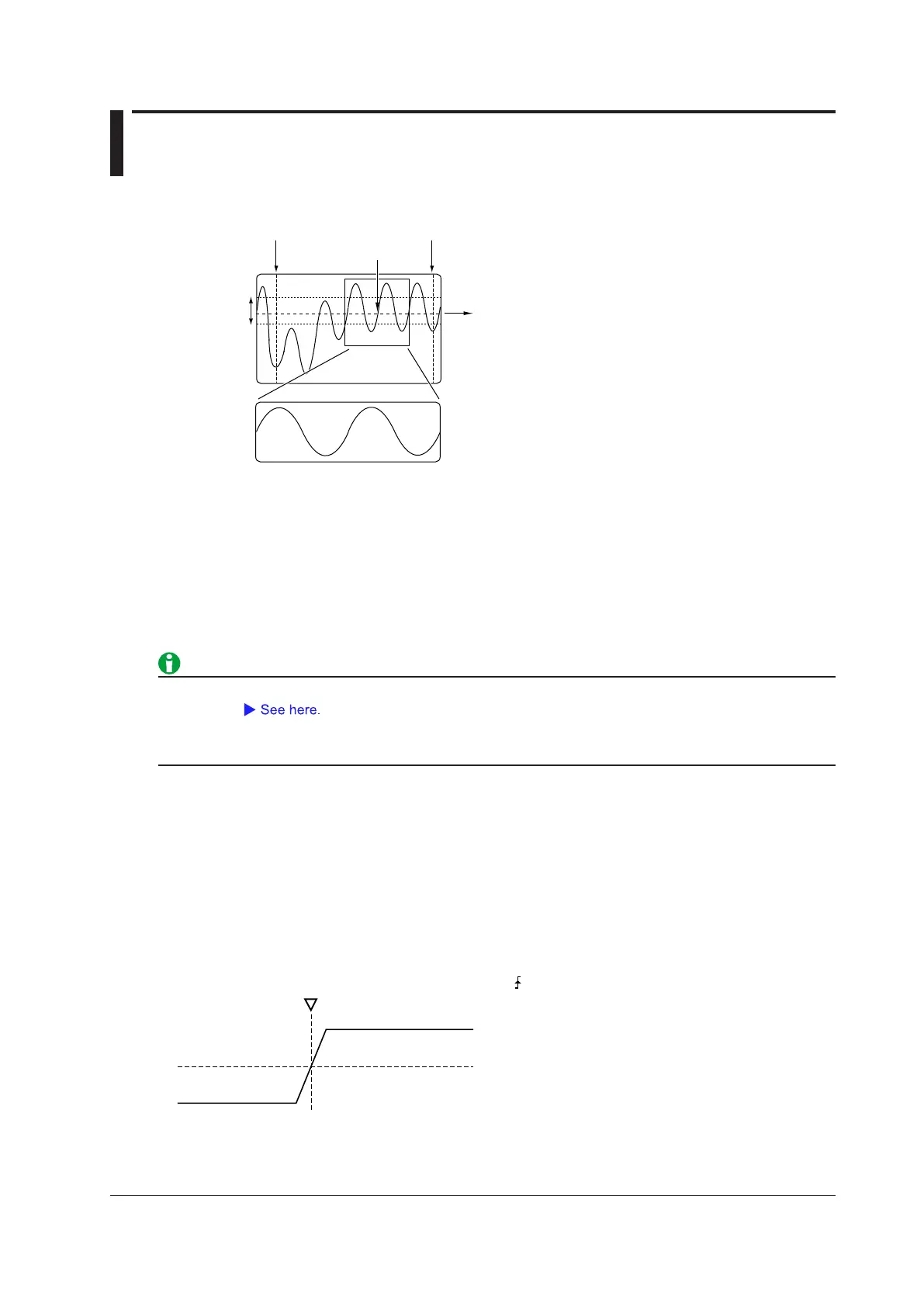

You can search the displayed waveforms for locations that match the specified conditions. You can zoom-in on
the detected locations. You can search the waveforms within the specified search range over up to 50000 points.
The specified level
Displays the detected section
expanded in the zoom window
Search start position Search end position
Detected Points
Search condition: Rising edge
Hysteresis
Search Source Waveform
You can search any of the following channel waveforms.
CH1 to CH4/LOGIC,* Math1 to Math4
* The selectable channels vary depending on the model. CH4 or LOGIC, whichever the corresponding key is
illuminated, can be selected. If you select LOGIC, select the source bit (bit 0 to bit 7).
• If you select a channel that a reference waveform has been loaded into, you can search the reference
waveform.
• If you set the source to a channel (CH1 to CH4) that a waveform has been loaded into, you can search the
loaded waveform.
Search Type (Type)
Set the search method to one of the settings below. The search method of each search type is the same as the
method of the corresponding trigger type.
Edge Search
Search for positions where the rising or falling slope of the specified waveform passes through the specified
level.
Search Example
Level
Detected point for rising edge ( )
Source
