4-1
IM 01F06A00-01E
4. BASIC OPERATING PROCEDURES
4. BASIC OPERATING PROCEDURES
Data setting can be performed with the three keys on the
front panel (SET,SHIFT and INC) or using a handheld
BRAIN(BT200) terminal and HART communicator.
4.1 Construction of the Display
Figure 4.1 shows the configuration of the digitalYEWFLO
display panel (if equipped).
SET
INCSHIFT
F040101.EPS
Data Display
(Upper)
1
Unit Display
4
Unit Display
4
Setting Keys
5
Alarm Display
3
Data Display
(Lower)
2

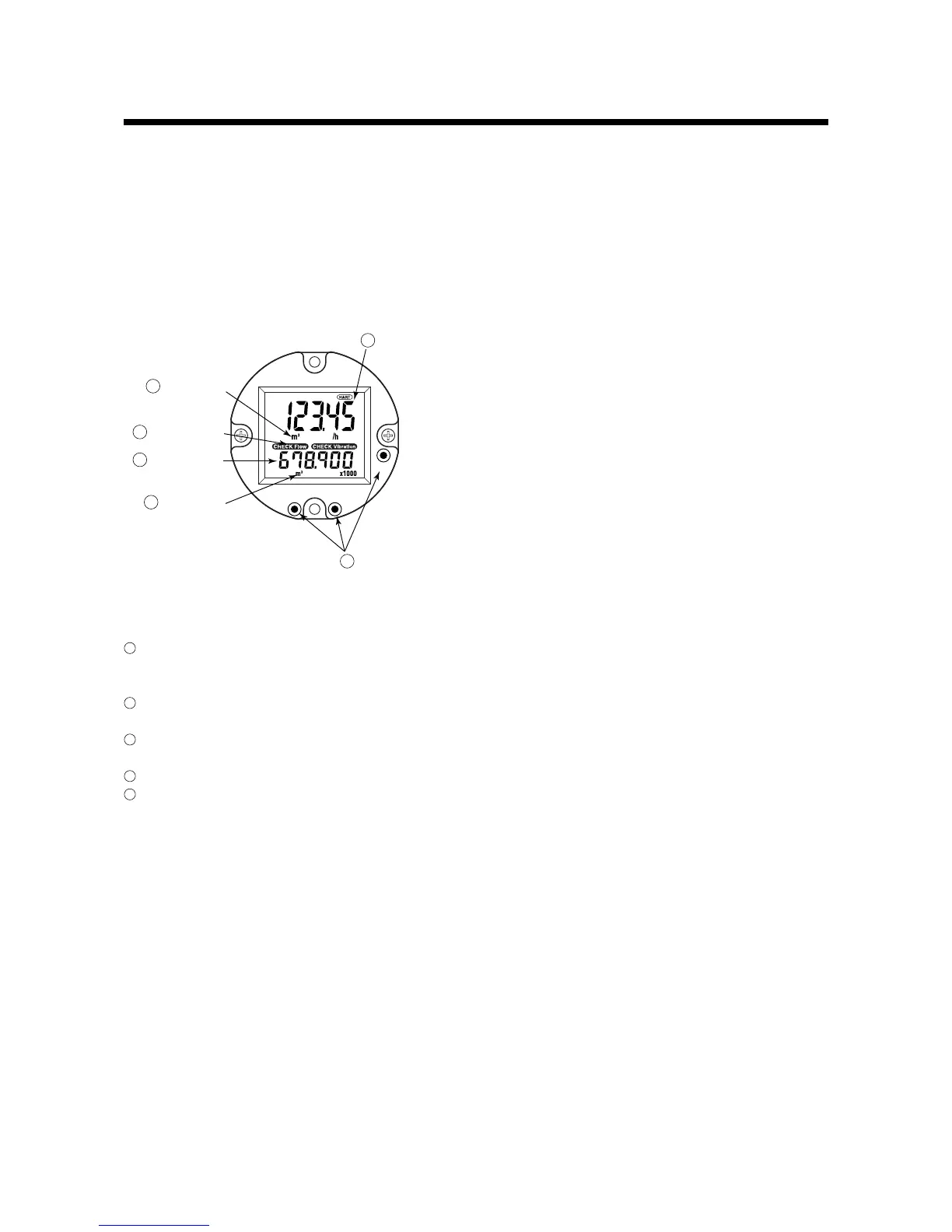

Figure 4.1 Construction of the Display
1
Data Display(Upper) : Flowrate data, setting data, total
data and temperature data
(/MV).
2
Data Display(Lower) : Total data, alarm data and
temperature data (/MV).
3
Alarm Display : Alarm of a flow error and a
vibration error.
4
Unit Display : Flowrate unit.
5
Setting Keys : These keys are used to change
flow rate data displays and
type of setting data.
To Next Page
