• Avarietyofprocesspiping-mountedstopvalvesare
availableaccordingtothetypeofconnection(anged,
screwed,welded),construction(globe,gate,orball
valve),temperatureandpressure.
Selectthetypeofvalvemostappropriateforthe
application.
Gas flow measurement
Liquid flow measurement
Union or flange
Union or flange
Stop valve
Stop valve
Manifold
Manifold
Process piping
Process piping
F0410.ai

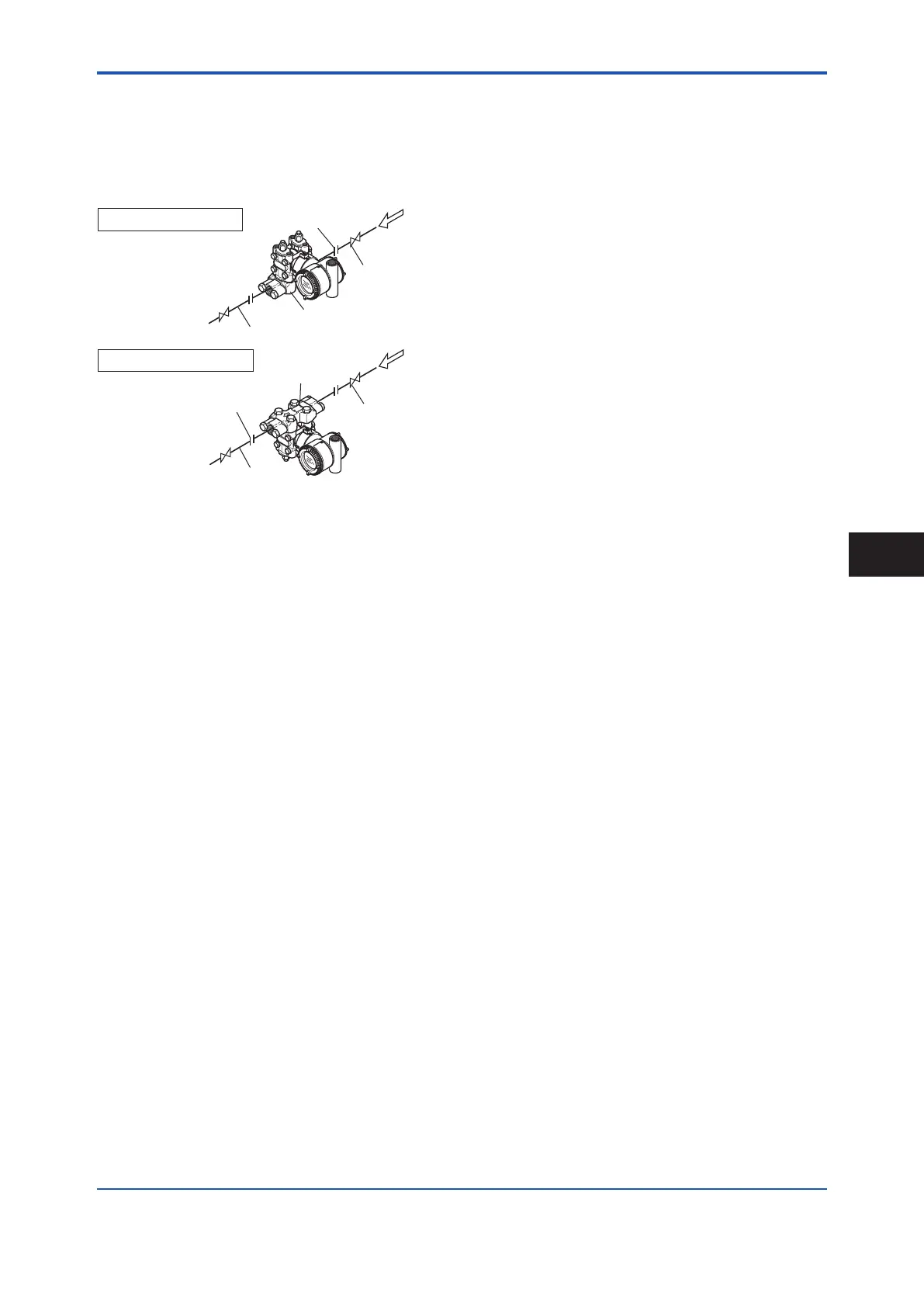

Figure4.10 ProcessPipingConnectionExamples
(EJ115)
