YOKOGAWA MuR10000 User Manual

10 IM 04P01B01-02E
Function Introduction/Names of Parts

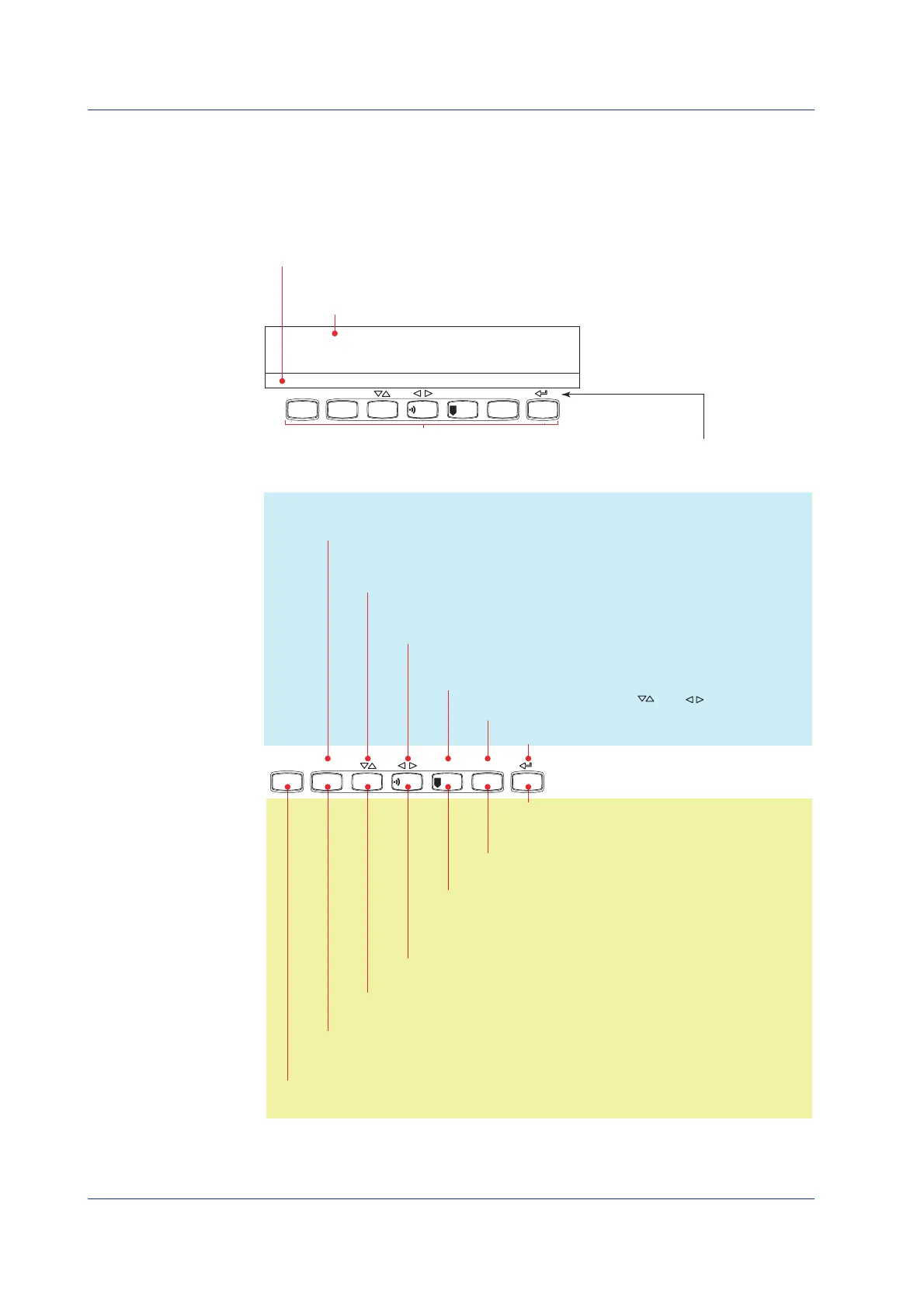

Display and Key Panel
RCD MENU FEED CH UP FUNC MENU DISP
1
CHARACTER
RECORD MATH CHART END ALARM
1 2 3 4 5 6KEY LOCK
ESC/?
SHIFT
Main display
Displays the measured values. Also, displays the setup screen when
setting functions.
Seven keys are available.
For all keys except RCD, functions marked above the keys are enabled when
setting functions or when the FUNC key or the DISP MENU key is pressed.
RCD key
Starts/stops recording.
MENU key
Hold this key down for 3 seconds to enter Setting mode. Hold this key down for
3 seconds also to exit from Setting mode.
DISP key
Switches the screen in the main display.
FUNC key
Used when executing manual printout, message printout, etc.
DISP MENU key
Hold this key down for 3 seconds to switch to the data display
setup screen. Hold this key down for 3 seconds also to exit
from the data display setup screen.
FEED key
Feeds the chart paper.
CHARACTER Key: Changes the character type when entering a character. Press
this key while holding down the SHIFT key to switch the character type in reverse
order.
UP/DOWN Key: Switches the setup item or the value.
Press this key while holding down the SHIFT key to switch the setup item
or the value in reverse order.
LEFT/RIGHT Key: Moves the cursor to the right when entering a value
or character. Press this key while holding down the SHIFT key to move
the cursor to the left.
SHIFT Key: Used with the key, key,
the CHARACTER key, or the ESC key.
ENTER Key: Confirms the setup item or value.
CH UP key
Switches the displayed channel.
(when manual switching is specified)
RCD MENU FEED CH UP FUNC MENU DISP
1
CHARACTER ESC/? SHIFT
<During normal operation>
Status display
Displays the following information.
RECORD Illuminates while recording measured values.
KEY LOCK Illuminates when key lock is enabled.
MATH Illuminates when computation on the computation function (/M1 option)
is in progress.
CHART END Illuminates when the chart paper is out (/F1 option).
ALARM 1 to 6 Illuminates when an alarm is occurring on channels 1 to 6.
ESC Key: Cancels the operation.
When pressed with the SHIFT key, the display of the comment
on the setting turns ON/OFF.
<While setting functions, when the FUNC key/DISP MENU key is pressed>
