Recording/Displaying Data
Switching the Display Screen
The screen switches each time the
DISP
key is pressed. Screen 01 through 15 are
switched in order. Screens that are set to “Skip” (See “Display Types” on the next page)
are skipped. Below is a display example.

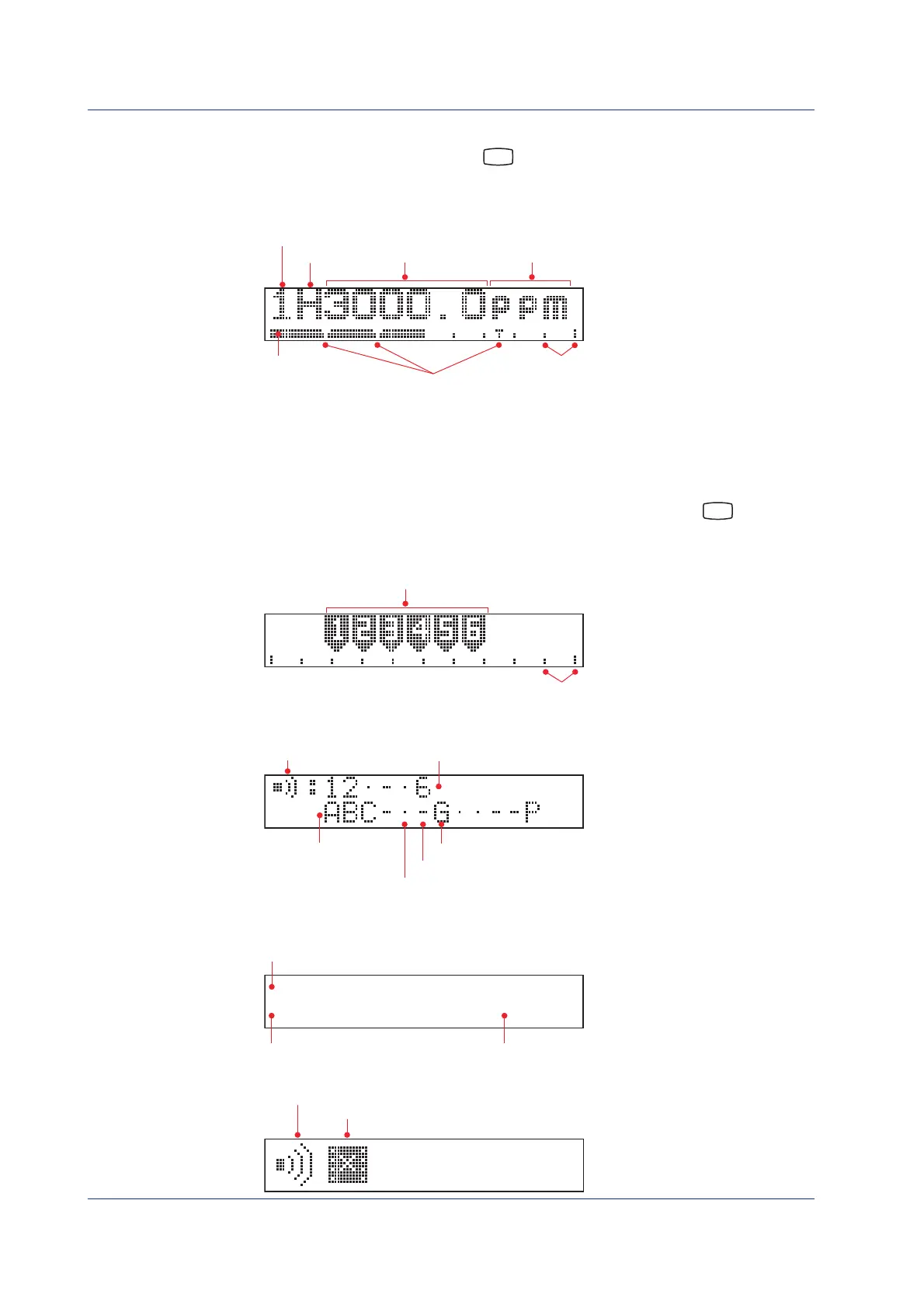

Display Example (1-channel digital + bar graph display)
Channel No.
Alarm point mark
Scale
Bar graph
UnitMeasured valueAlarm status
• Channel Auto Switching
On screens that show the measured values and computed values, the displayed
channel is automatically switched in ascending order. The switching interval can be
set to 1 s, 2 s, 3 s, 4 s, or 5 s.
• Switching the Displayed Channel Using Keys
If Manual switching is specified, the channel switches each time the
CH UP
key is
pressed in ascending order. All channels are displayed in order.
Display Example (Flag Display)
Scale
Flag (the number indicates the channel No.)
Display Example (Alarm Status Display)
Measurement channel
Symbol indicating
an alarm
Computation
channel
Channel on which an alarm is occurring
Channel on which an alarm is not occurring
Channel on which an alarm is not set
Display Example (Date/Time and Chart Speed Display)
The date format can be specified.
Date
Chart speedTime
Aug.31.2005 12000
11:26:37 mm/h
Display Example (Status Display)
Remaining amount of chart paper is less than approx. 2 cm (/F1 option)
Alarm status
