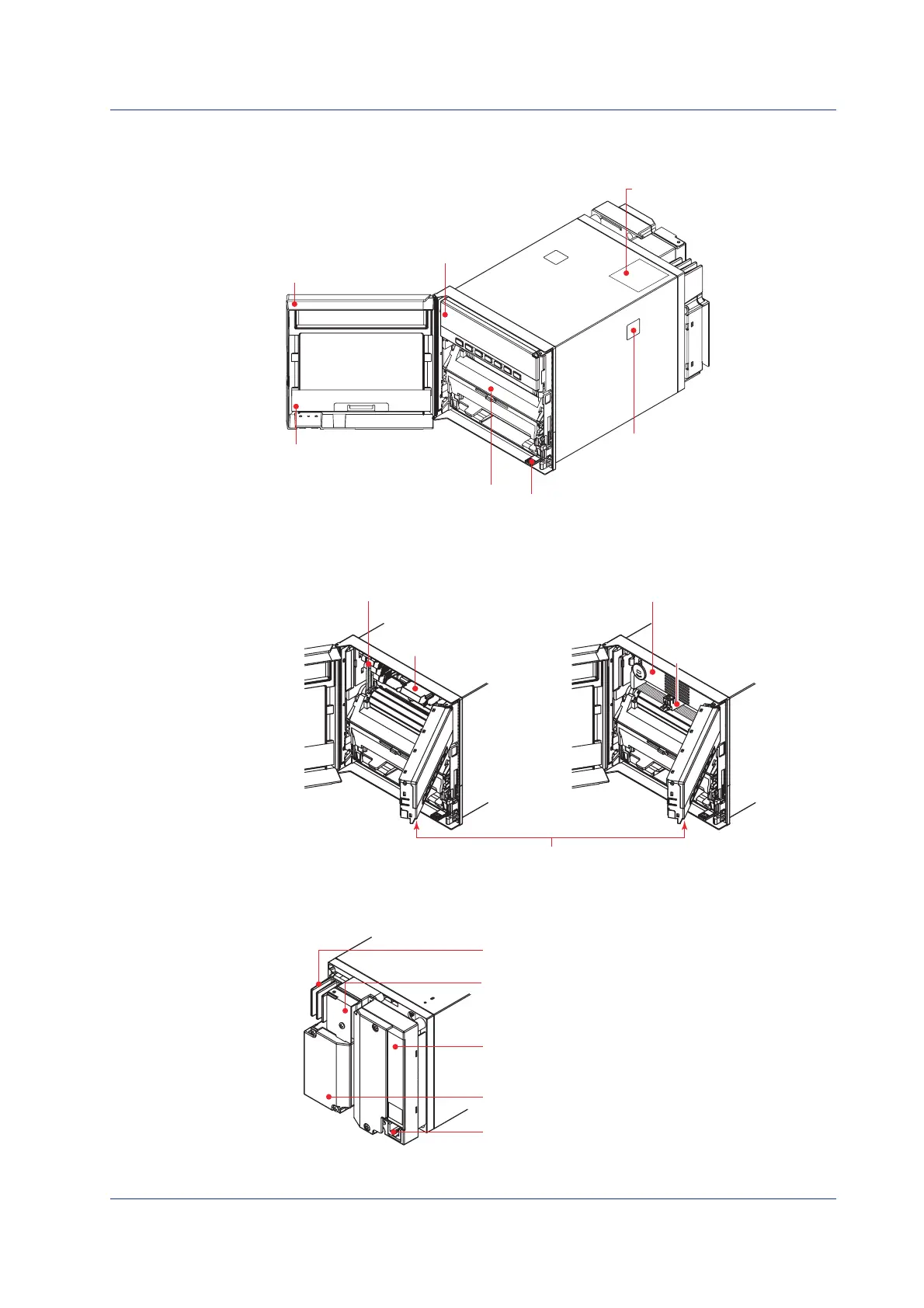

Names of Parts
Front
Door
Name plate
The model name is written
on the name plate.
Power switch
Turns ON/OFF the power each
time the switch is pressed.
Chart cassette
Holds the chart paper.
Tag plate
Used to write
channel names.
Display and key panel
Hold the tab at the lower
left and pull to open.
Mounting hole
There is one hole on each of the
top, bottom, left, and right panels.
The hole is covered with a seal.
Pen model Dot model
Display and key panel (see the next page)
There is an internal light on the bottom section
of the display and key panel. It lights up the
recording area of the chart paper.
Recording pen
Records the measured value.
Plotter pen
Prints various types
of information.
Printer carriage
Records measured values
and prints various types of
information.
Ink ribbon
Six-color ink.
Rear Panel
Measuring input terminal block
Measuring input terminals.
Heatsink
Dissipates the internal heat.
Optional terminal block
This is where terminals or ports used by options such
as alarm output relays and communication interface
are installed.
Ethernet port (/C7 option)
Power terminal block
The power terminal and protective ground terminal.
The portable type (/H5x option) comes with a handle, feet, and dedicated power supply
connector.
