YOKOGAWA MuR10000 User Manual

IM 04P01B01-02E 5

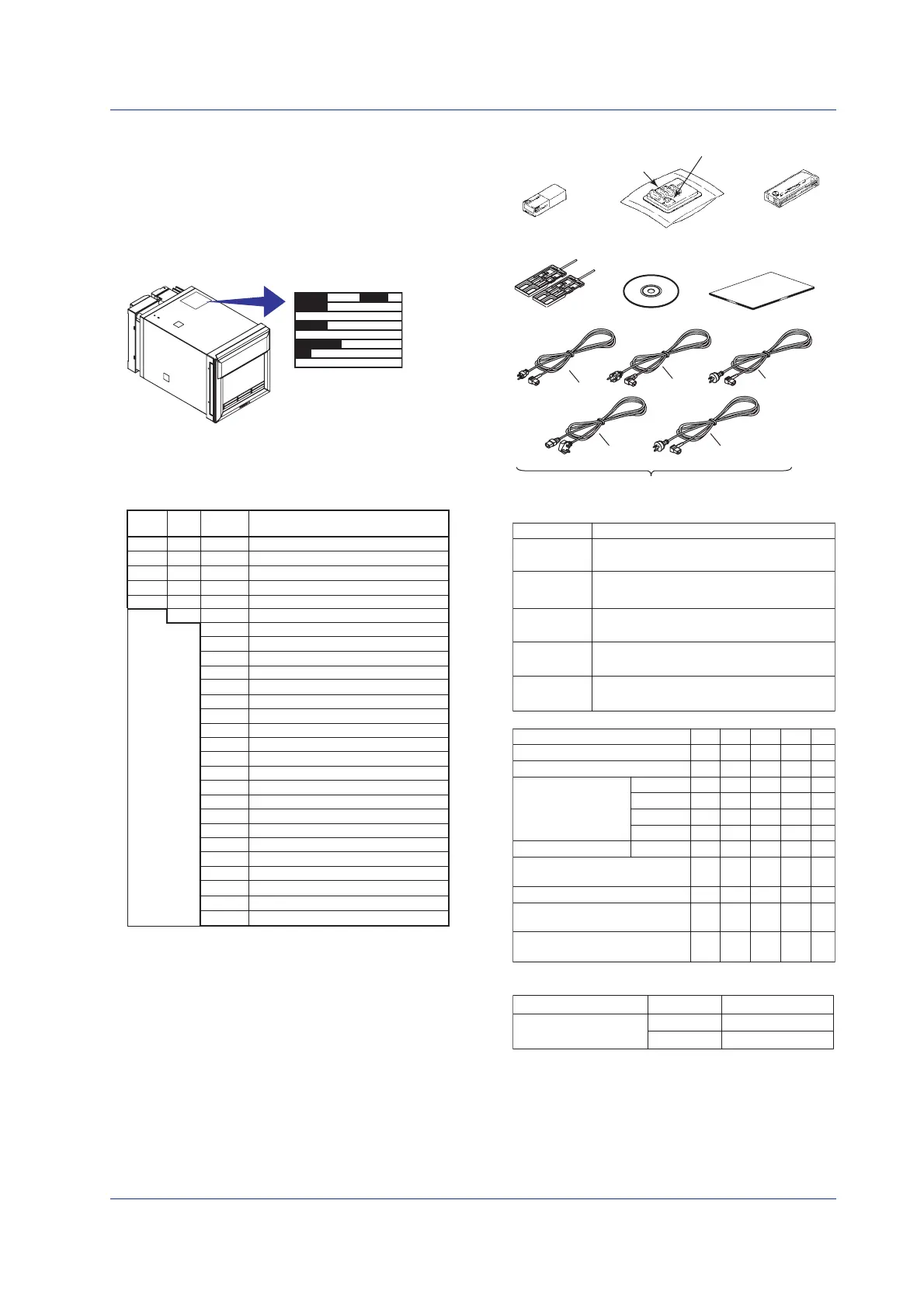

Checking the Contents of the Package
Unpack the box and check the contents before operating the
instrument. If some of the contents are not correct or missing or if
there is physical damage, contact the dealer from which you
purchased them.
µR10000 Recorder
A name plate is affixed to the case. Check that the model name
and suffix code given on the name plate on the rear panel match
those on your order.
MODEL
SUFFIX
SUPPLY
STYLE
FREQUENCY
NO.
NO. (Instrument Number)
When contacting the dealer from which you purchased the
instrument, please give them the instrument number.
MODEL and SUFFIX Code
Model
Suffix
Code
-2
Description
µR10000 1 pen recorder
µR10000 2 pen recorder
µR10000 3 pen recorder
µR10000 4 pen recorder
µR10000 6 dot recorder
English/German/French & deg F/DST
436101
436102
436103
436104
436106
1 /A1, /A2, and /A3 cannot be specified simultaneously.
2 /A3 and /F1 cannot be specified simultaneously.
3 /C3 and /C7 cannot be specified simultaneously.
4 /H2 and /N2 cannot be specified simultaneously.
5 Valid only on the model 436106.
6 14 types of input including Pt50 RTD, PR40-20, and
Platinel TC.
7 /H5x and /P1 cannot be specified simultaneously.
/A1 Alarm output relay 2 points
1
/A2 Alarm output relay 4 points
1
/A3 Alarm output relay 6 points
1, 2
/C3 RS-422A/485 interface
3
/C7 Ethernet (10BASE-T) interface
3
/F1 Fail/Chart end detection and output
2
/H2 Clamped input terminal
4
/H3 Non-glare door glass
/H5D Portable type Power cord UL, CSA st’d
7
/H5F Portable type Power cord VDE st’d
7
/H5R Portable type Power cord AS st’d
7
/H5J Portable type Power cord BS st’d
7
/H5H Portable type Power cord GB st’d
7
/M1 Mathematical function
/N1 Cu10, Cu25 RTD input
/N2 3 legs isolated RTD
4, 5
/N3 Expansion inputs
6
/P1 24 VDC/AC power supply
7
/R1 Remote control 5 points
/CC1 Calibration Correction
/BT1 Header printout
Optional
Code
Standard Accessories
Z-fold chart
paper
Ribbon
cassette
Disposable
felt pen
Plotter pen
Mounting
bracket
µR10000 Recorder
Operation Guide
IM 04P01B01-02E
Manuals for
the µR10000/µR20000
(CD-ROM)
One of these power cord types is supplied
according to the instrument’s suffix code
/H5F
/H5D
/H5R
/H5H/H5J
Part Number Note
A1006WD Provided when optional code /H5D is specified.
Maximum rated power voltage: 125V
A1009WD Provided when optional code /H5F is specified.
Maximum rated power voltage: 250V
A1024WD Provided when optional code /H5R is specified.
Maximum rated power voltage: 250V
A1023WD Provided when optional code /H5J is specified.
Maximum rated power voltage: 250V
A1064WD Provided when optional code /H5H is specified.
Maximum rated power voltage: 250V
Item 1 -Pen 2 -Pen 3 -Pen 4 -Pen Dot
Red
Green
Blue
Violet
Purple
Z-fold chart paper 1 1 1 1 1
----1
1111-
-111-
--11-
---1-
1111-
22222
11111
11111
11111
Ribbon cassette
Disposable felt pen
Plotter pen
Mounting bracket (included with
models without /H5x)
Power cord (included with /H5x)
Manuals for the µR10000/µR20000
(CD-ROM)
µR10000 Recorder Operation
Guide IM 04P01B01-02E
Software (Sold Separately, see page 7)
Item
Configuration software
RXA10-01
RXA10-02 With interface unit*
Note
Model
* You can use the Configuration Software if you install the interface
unit to a recorder does not include the communication function.
