Preparing to Record
Loading or Replacing the Chart Paper
CAUTION
• Do not install or remove the chart cassette with the chart paper guide open. This
may damage the stopper.
• Continuing to record or print without the chart paper on the dot model can cause
damage to the chart cassette platen (the cylindrical section that holds the paper
during the recording operation). Be sure to replace the chart paper ahead of
time.

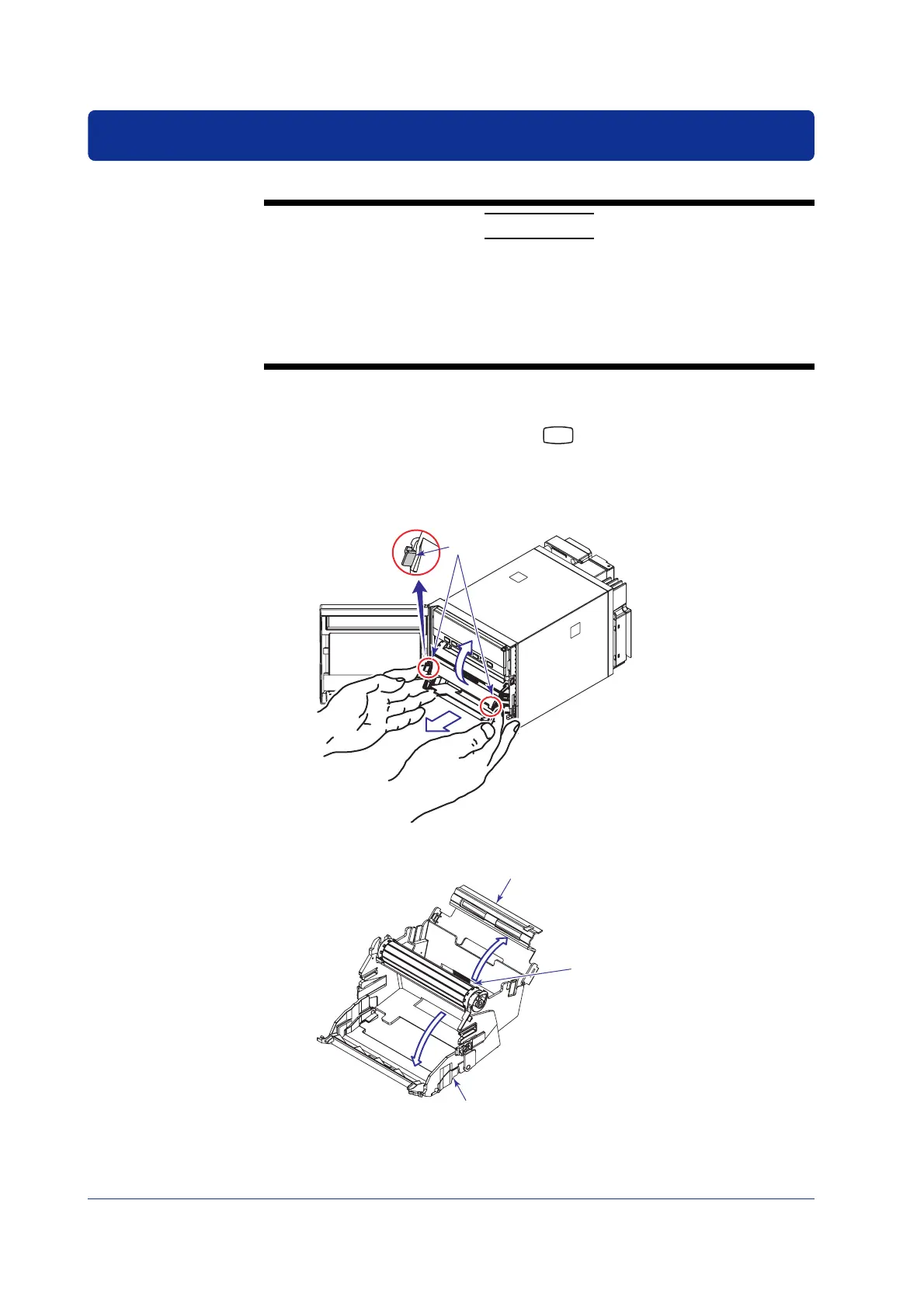

Loading the Chart Paper
1.
Open the door.
If recording is in progress, press the
RCD
key to stop the recording.
2.
Remove the chart cassette.
Gently pressing the left and right stoppers inward. The bottom section of the
chart cassette comes out. Gently lift the chart cassette and pull it out from the
recorder case.
Stopper
3.
Open the chart holder and the chart paper guide.
Chart holder
This sheet is provided on models
with the chart end detection
function (/F1 option).
Do not remove or bend this sheet.
Chart paper guide
To Next Page
