27IM 04P01B01-02E
4.

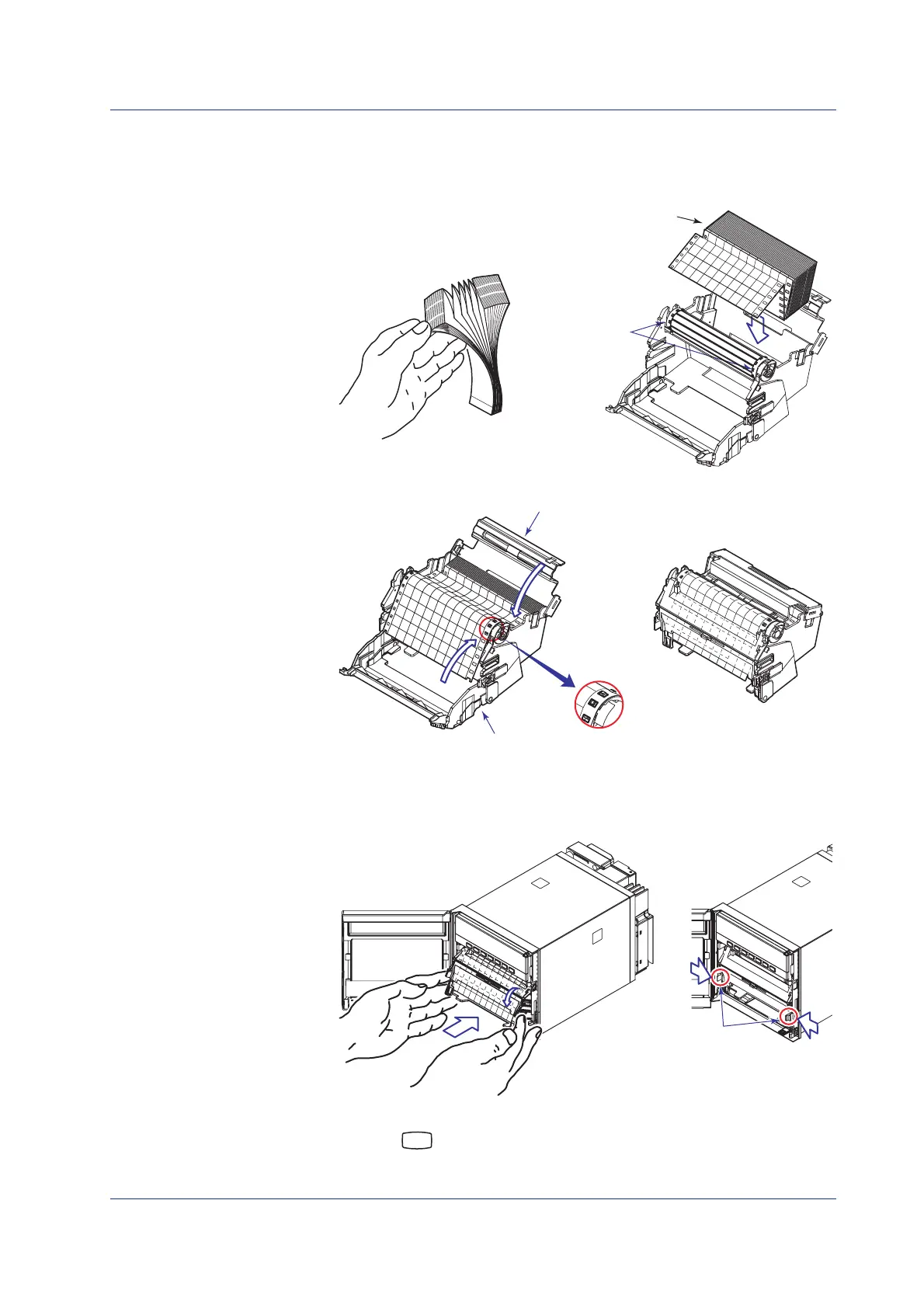

Load the chart paper.
Riffle the chart thoroughly before loading. Make sure that the sprocket teeth of
the chart drives are properly engaged in the chart paper perforations. Make sure
not to load the chart paper backwards.
Z-fold chart paper
Sprocket teeth
5.
Close the chart holder and close the chart paper guide.
Chart holder
Chart paper guide
The side with the
long rectangular
holes is the right side.
6.
Replace the chart cassette back into the recorder.
Align the left and right projections with the guide grooves of the recorder and
press the entire chart cassette into the recorder case. The chart cassette is fixed
in place with the stoppers.
Stopper
Feeding the Chart Paper
7.
Press the
FEED
key to assure that the chart moves two or more folds smoothly
into the chart receiver.
If it moves unsteadily, do the installing procedure again.
Preparing to Record
