22 IM 04P01B01-02E
Common Operations and Menu Structure

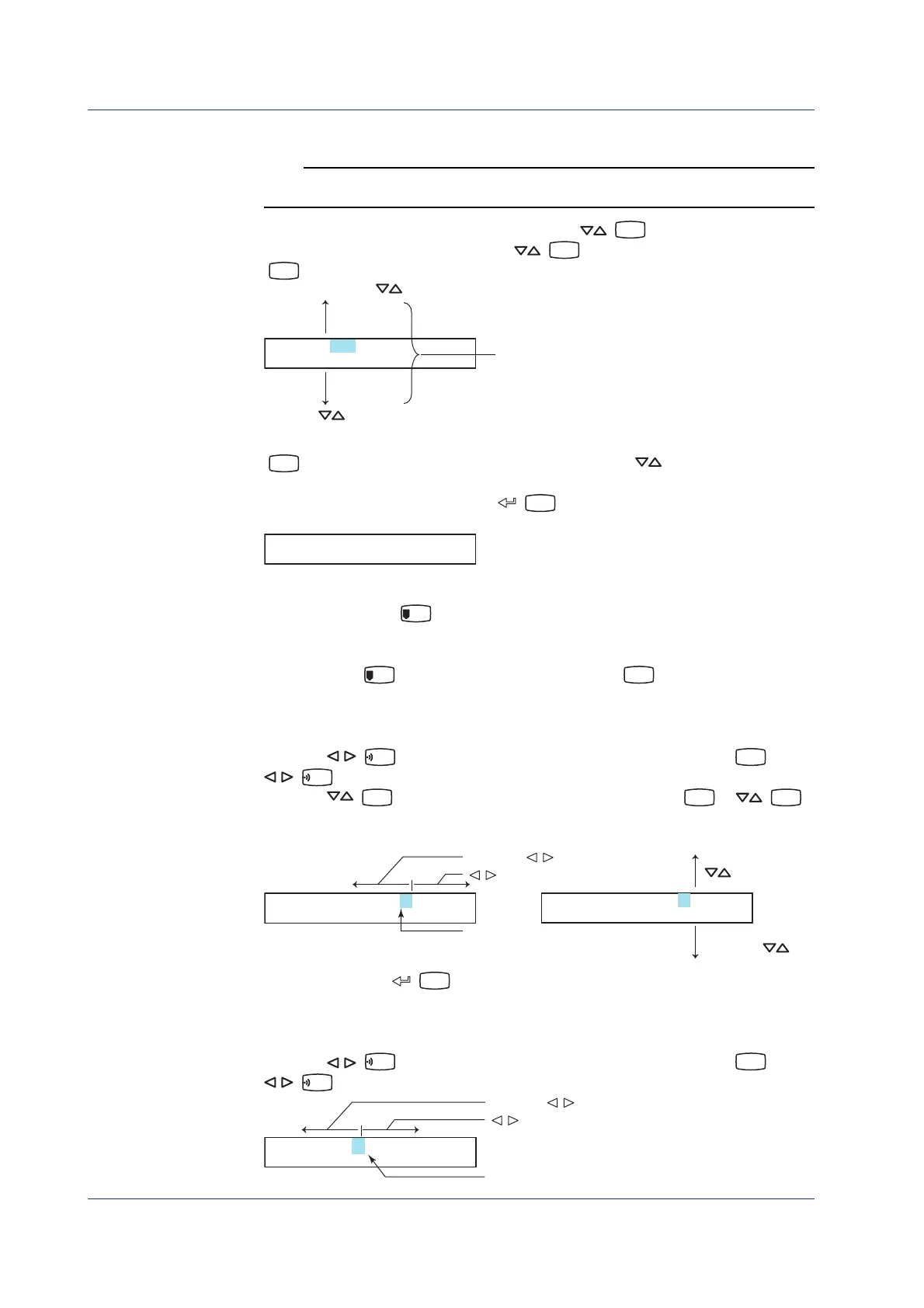

Changing the Settings
Note
The comment line shows useful information such as a description of the setup item and the
range of selectable values. Read the comment and change the items as necessary.
The selected item change each time you press the (
DISP
) key. The selected item
change in reverse order if you press the
(
DISP
) while holding down the SHIFT
(
FEED
) key.
SHIFT key + key
key
Mode=TC
Skip
Volt
RTD
1-5V
Possible choices
This manual denotes the operation of pressing a key while holding down the SHIFT
(
FEED
) key as SHIFT + the other key (for example: SHIFT + key).
After you make a selection, press the
(
CH UP
) key. The next screen appears.
When the Setting complete screen is displayed, the changed item is applied.
01-01 Channel
Setting complete
Using the ESC Key
If you press the ESC (
MENU
1
) key, the operation is cancelled, and the display returns to a
higher level menu. In other words, if you do not show the Setting complete screen, the
changes you made up to that point are discarded.
Press the ESC (
MENU
1
) key while holding down the SHIFT (
FEED
) key to show or hide the
comment that is displayed at the bottom half of the screen.
Entering Values
Press the (
FUNC
) key to move the cursor to the right. Press the SHIFT (
FEED
) +
(
FUNC
) to move the cursor to the left.
Press the
(
DISP
) key to increment the value. Press the SHIFT (
FEED
) + (
DISP
)
key to decrement the value.
You repeat these steps to enter the value.
SHIFT key + key
key
Cursor
Span_L= -2.000
-2.000/ 2.000V
SHIFT key + key
key
Span_L= -1.500
-2.000/
8
7
6
4
3
2
When you press the (
CH UP
) key, the change is applied and the next screen is
displayed.
Entering Characters
Press the (
FUNC
) key to move the cursor to the right. Press the SHIFT (
FEED
) +
(
FUNC
) to move the cursor to the left.
SHIFT key + key
key
Cursor
Unit=ppm
CHR:a-z
To Next Page
