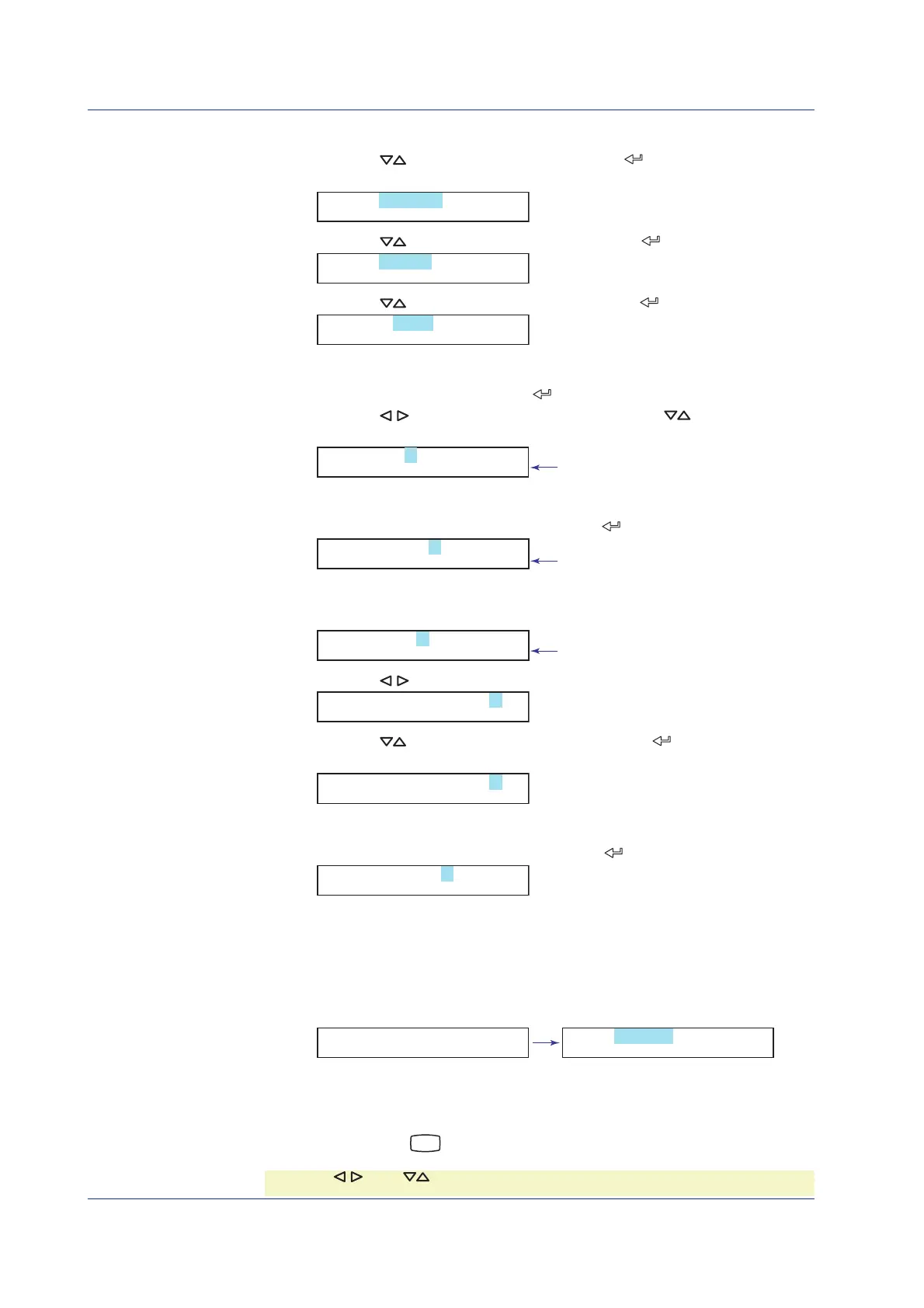

36 IM 04P01B01-02E
Selecting the Input Type
5.
Press the key to select Scale, and press the key (for the selectable
settings, see “Explanation” on page 37).
Mode=Scale
Scales and record
6.
Press the key to select Volt and then press the key.
Type=Volt
DC Voltage
7.
Press the key to select 20V and then press the key.
Range=20V
20mV-50V
Setting Span Left
8.
Set Span_L to 0.00, and press the key.
Press the key to select the desired digit. Press the key to select the
value.
Span_L= 0.00
-20.00/ 20.00V
Displays the range of Span_L.
Setting Span Right
9.
Likewise, set Span_R to 10.00, and press the key.
Span_R= 10.00
-20.00/ 20.00V
Displays the range of Span_R.
Setting the Decimal Position and Scale Left
10.
Display Scale_L.
Scale_L= 0.00
-200.00/ 300.00
Displays the scaling range.
11.
Press the key to select the desired digit.
Scale_L= 0.00
-200.00/ 300.00
12.
Press the key to select space and then press the key (Scale_L is set to
0.0).
Scale_L= 0.0
-200.00/ 300.00
Setting Scale Right
13.
Likewise, set Scale_R to 400.0, and press the key.
Scale_R= 400.0
-2000.0/ 3000.0
The Setting complete screen is displayed. When this screen is displayed, the
settings entered up to then are applied.
Finishing the Settings
14.
When the Setting complete screen is displayed, press the ESC key.
The Set=Range screen is displayed.
04-04 Channel
Setting complete
Set=Range
Input range and
Setting the Unit and Finishing the Unit Settings
See steps 13 to 16 in Setup Example (2).
15.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Setting the Input Range and Alarm on Measurement Channels
* When the key or key is pressed while holding down the SHIFT key, the operation is
reversed as when the respective key is pressed by itself.
To Next Page
