3 INSTALLATION
3-2
All Rights Reserved. Copyright © 2006, Rota Yokogawa
IM 01R01B02-01E-E 5th edition October 01, 2020-00
ConnectionassignmentinRAMChousing:
Connect the cable conductors of the eldbus cable to the eldbus terminals 2 and 3.
3 2 1
Figure 3.2 Connector at transmitter

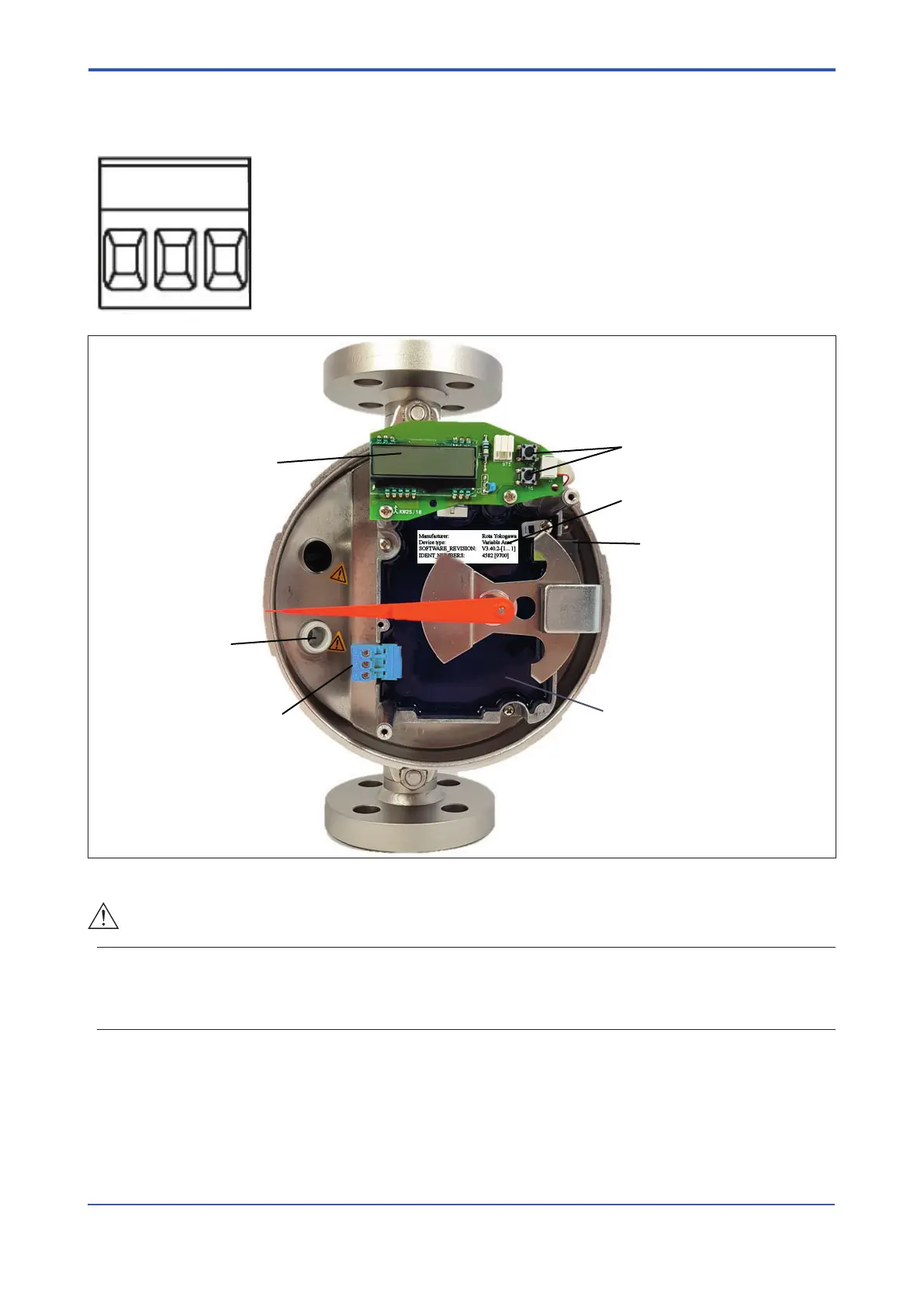

Figure 3.3 RAMC PA Overview
CAUTION
•If the eldbus device is operated at ambient temperatures above +50 °C, the supply voltage of the device
must be above 9.5 V.
•For installation in hazardous area chapter 7 must be regarded.
Operation keys
Calibration-EEPROM
Electronic transmitter
LC-display
Cable gland
Connector acc. figure 3.2
Profibus Label
