York DNH018 - Typical Duct Applications; Unit Center of Gravity; Unit Weights and Center of Gravity

036-21233-002-A-0903
24 Unitary Products Group

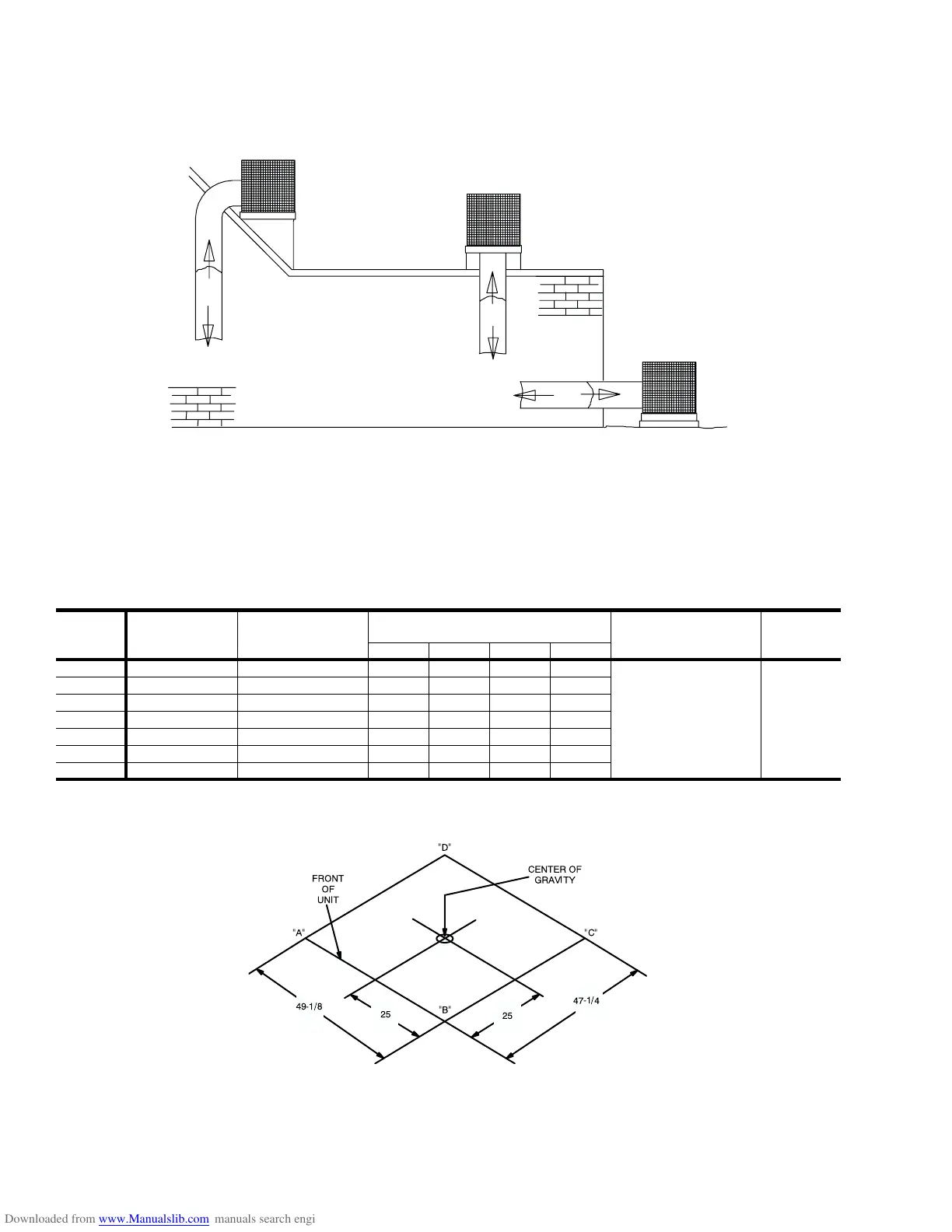

FIGURE 9 - TYPICAL DUCT APPLICATIONS
FIGURE 10 - UNIT CENTER OF GRAVITY
ROOF CURB
INSTALLATIO N
REAR DUCT
ROOF CURB
INSTALLATIO N
BOTTOM DUCT
SLAB ON GRO UND
INSTALLATIO N
TABLE 19: UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
SIZE
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
CORNER WEIGHTS
(location, lbs.)
ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.)
“A”“B”“C”“D”
018 365 360 91 88 89 92
40
8” - 70
14” - 75
024 365 360 91 88 89 92
030 395 390 98 95 96 99
036 400 395 100 96 98 101
042 470 465 131 129 101 103
048 475 470 133 130 102 104
060 485 480 136 133 105 107
"A"
"B"
"C"
"D"
49-1/8
25
25
47-1/4
FRONT
OF
UNIT
CENTER OF
GRAVITY
