York YCAE065 - DIP SWITCH SETTINGS

DIP SWITCH SETTING

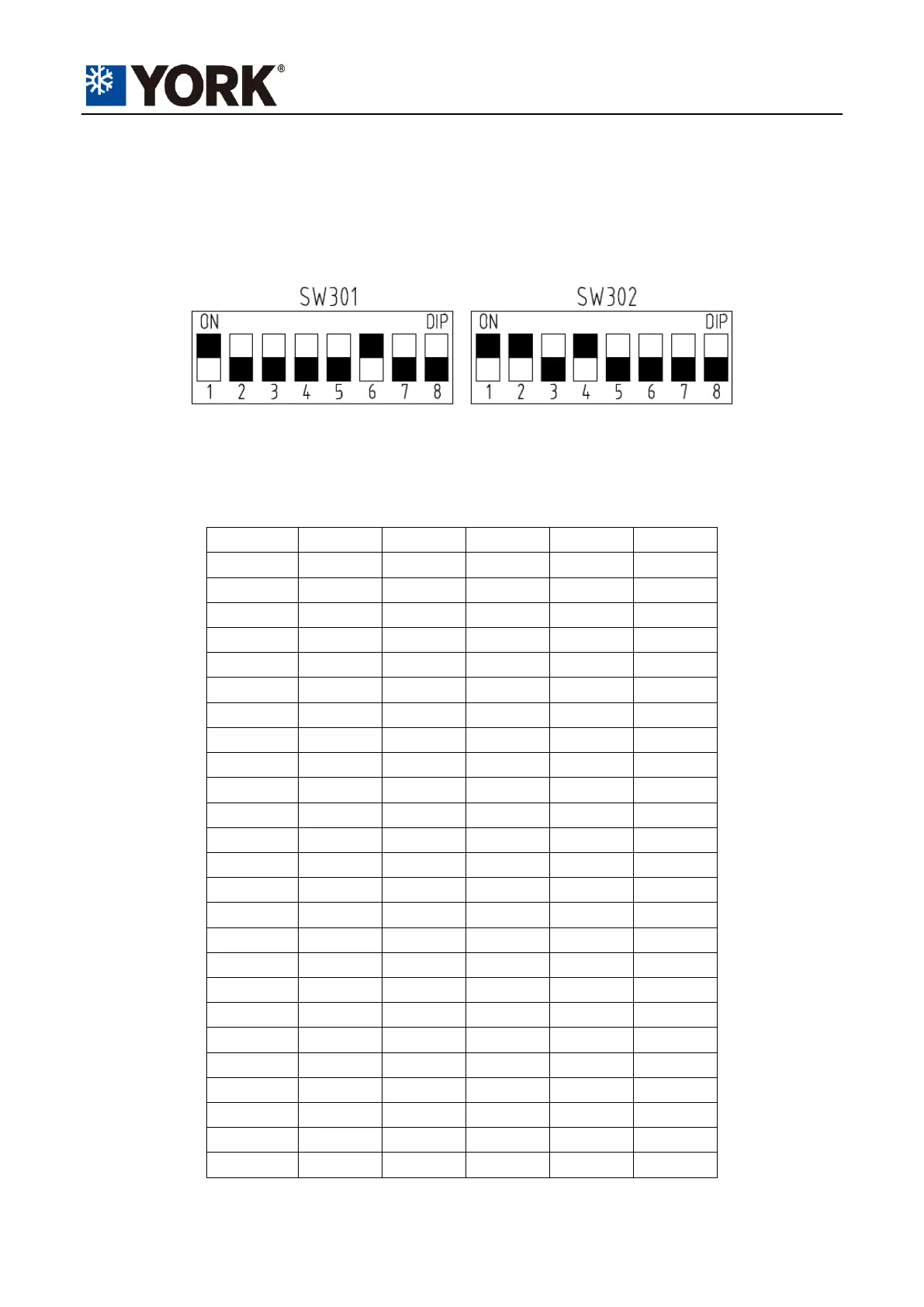

Microboard DIP Switch
Two DIP switches, SW301 and SW302, are located on the IPU3 micro board. SW301 is an eight-digit
switch and the first five digits are used to set communication addresses for each module. It is
converted from decimalism to binary.
Address Setting
The control system allows a maximum of 32 micro boards combined as a communication network.
The addresses are set as follows.
MODULE
SW301-1
SW301-2
SW301-3
SW301-4
SW301-5
1#
ON
OFF
OFF
OFF
OFF
2#
OFF
ON
OFF
OFF
OFF
3#
ON
ON
OFF
OFF
OFF
4#
OFF
OFF
ON
OFF
OFF
5#
ON
OFF
ON
OFF
OFF
6#
OFF
ON
ON
OFF
OFF
7#
ON
ON
ON
OFF
OFF
8#
OFF
OFF
OFF
ON
OFF
9#
ON
OFF
OFF
ON
OFF
10#
OFF
ON
OFF
ON
OFF
11#
ON
ON
OFF
ON
OFF
12#
OFF
OFF
ON
ON
OFF
13#
ON
OFF
ON
ON
OFF
14#
OFF
ON
ON
ON
OFF
15#
ON
ON
ON
ON
OFF
16#
OFF
OFF
OFF
OFF
ON
17#
ON
OFF
OFF
OFF
ON
18#
OFF
ON
OFF
OFF
ON
19#
ON
ON
OFF
OFF
ON
20#
OFF
OFF
ON
OFF
ON
21#
ON
OFF
ON
OFF
ON
22#
OFF
ON
ON
OFF
ON
23#
ON
ON
ON
OFF
ON
24#
OFF
OFF
OFF
ON
ON
25#
ON
OFF
OFF
ON
ON
