York YVAA - Table 1 - Unit Lifting Point Locations

SECTION 3 - RIGGING, HANDLING, AND STORAGE
JOHNSON CONTROLS
25
Form 201.47-ICOM1
Issue date: 17/11/2022
3
YVAA-B
Model
English
YVAA-B
Model
Metric
#1 #2 #3 #4
in. mm in. mm in. mm in. mm
YVAA0161 YVAA0571 13.67 347.3 59.7 1516.5 133.42 3389 188.00 4776.0
YVAA0201 YVAA0701 13.67 347.3 59.7 1516.5 133.42 3389 188.00 4776.0
YVAA0166 YVAA0586 13.67 347.3 59.7 1516.5 133.42 3389 237.59 6034.7
YVAA0211 YVAA0741 13.67 347.3 59.7 1516.5 133.42 3389 237.59 6034.7
YVAA0191 YVAA0671 13.67 347.3 59.7 1516.5 133.42 3389 237.59 6034.7
Table 1 - Unit lifting point locations

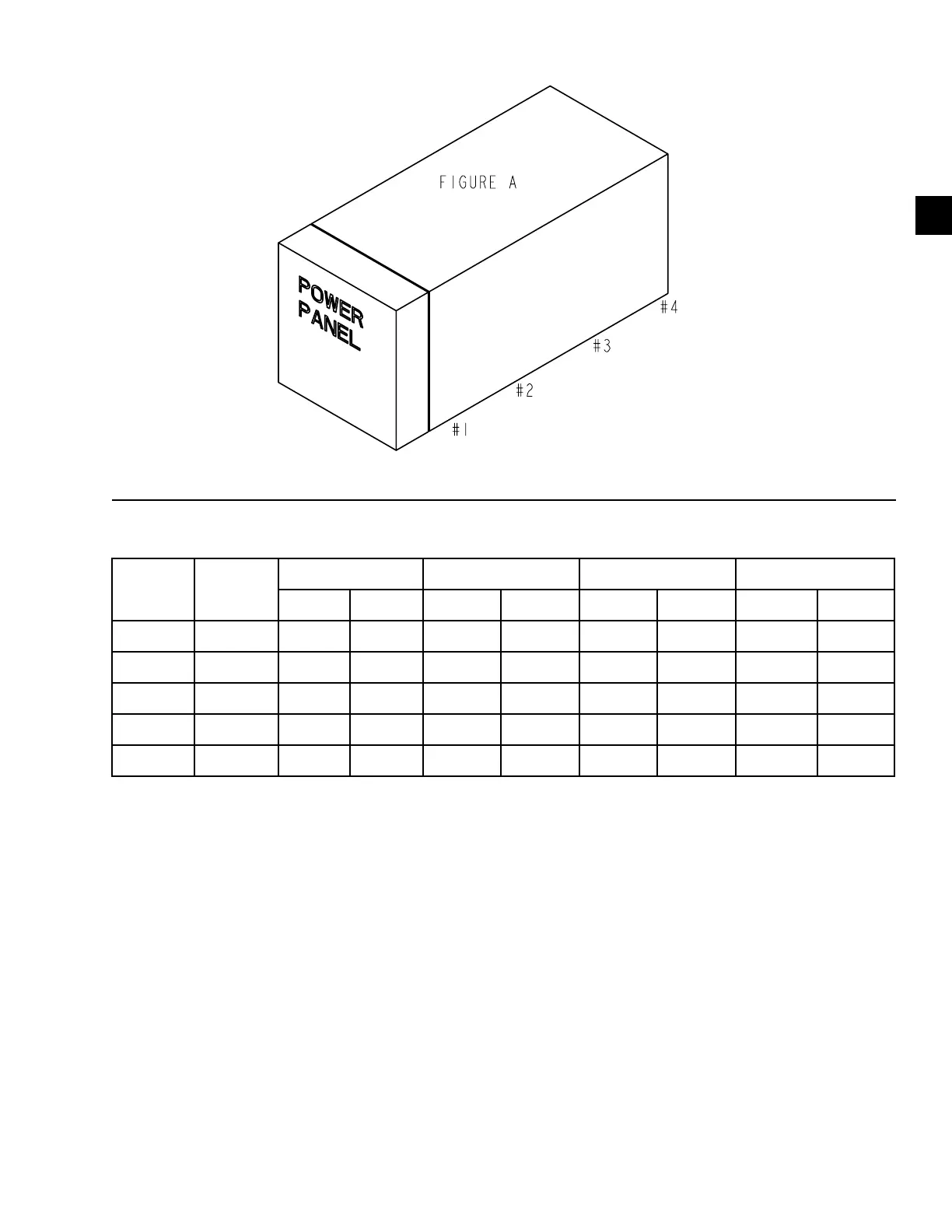

Figure 5 - Power panel, 1 to 4
