York YVAA - Figure 6 - Power Panel, 1 to 5

JOHNSON CONTROLS
26
SECTION 3 - RIGGING, HANDLING, AND STORAGE
Form 201.47-ICOM1
Issue date: 17/11/2022
YVAA-B
Model
English
YVAA-B
Model
Metric
#1 #2 #3 #4 #5
in. mm in. mm in. mm in. mm in. mm
YVAA0169 YVAA0599 13.67 347.3 59.7 1516.5 133.42 3389.0 230.58 5856.7 276.0 7010.2
YVAA0176 YVAA0616 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.6
YVAA0214 YVAA0754 13.67 347.3 59.7 1516.5 133.42 3389.0 230.58 5856.7 276.0 7010.2
YVAA0224 YVAA0782 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.2
YVAA0254 YVAA0894 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.2
YVAA0261 YVAA0921 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.2
YVAA0196 YVAA0686 13.67 347.3 59.7 1516.5 133.42 3389.0 230.58 5856.7 276.0 7010.2
YVAA0199 YVAA0699 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.2
YVAA0234 YVAA0824 13.67 347.3 47.1 1196.5 118.23 3003.0 199.49 5067.0 261.5 6642.2
YVAA0219 YVAA0769 13.67 347.3 113.3 2878.1 167.42 4252.5 253.22 6431.9 349.41 8874.9
YVAA0229 YVAA0809 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
YVAA0264 YVAA0924 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
YVAA0269 YVAA0949 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
YVAA0246 YVAA0866 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
YVAA0216 YVAA0756 13.67 347.3 113.31 2878.1 167.42 4252.5 253.22 6431.9 305.43 7757.9
YVAA0226 YVAA0796 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 305.43 7757.9
YVAA0259 YVAA0919 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 305.43 7757.9
YVAA0266 YVAA0936 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 305.43 7757.9
YVAA0294 YVAA1034 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
YVAA0324 YVAA1134 13.67 347.3 101.5 2578.1 159.55 4052.5 253.22 6431.9 349.41 8874.9
Table 1 - Unit lifting point locations (cont'd)

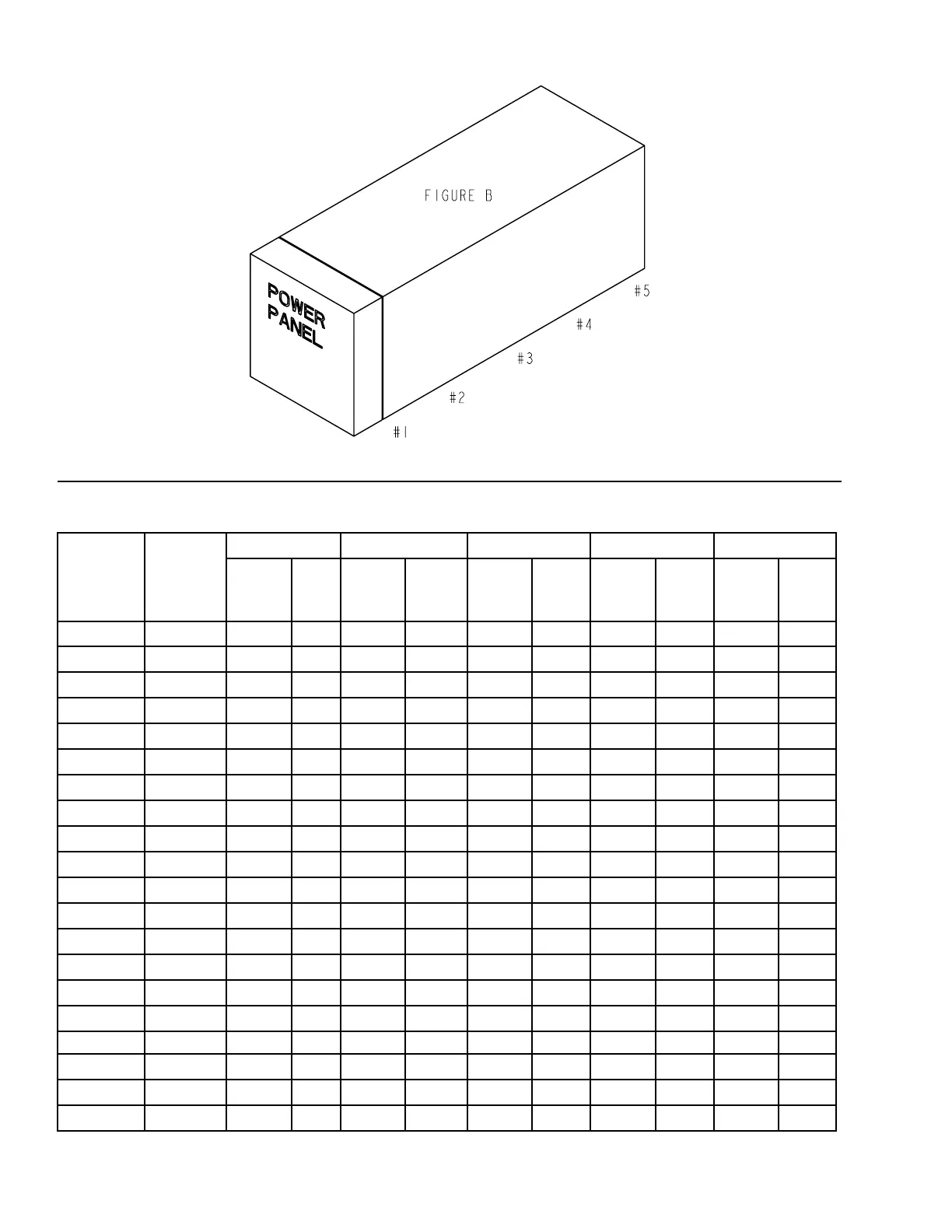

Figure 6 - Power panel, 1 to 5
