Page 22
3.8 "HARDWARE SETTING" MENU
Set current Adjust the bottom of the scale setting of the current
reading visualised on the console.

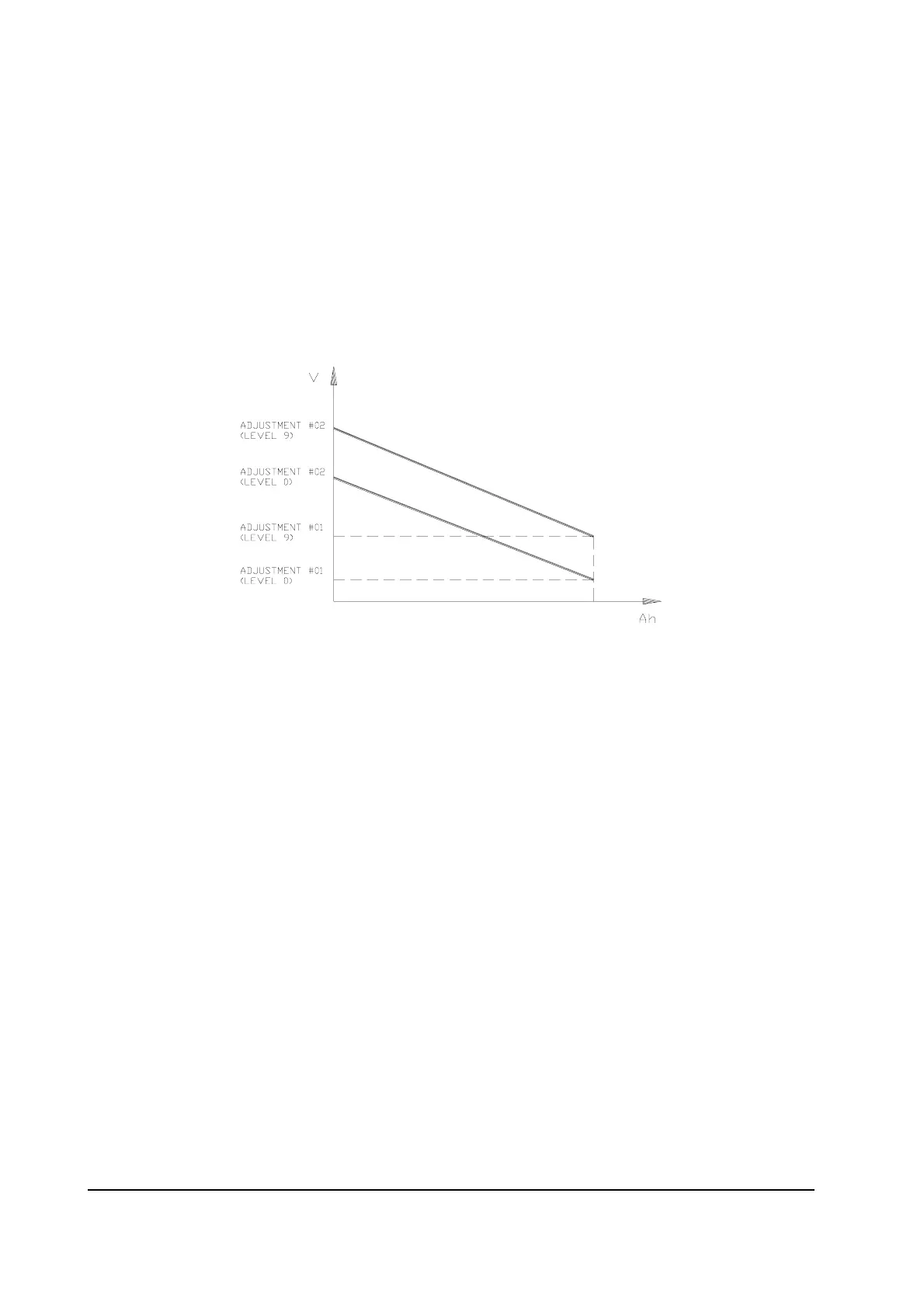

Adjustment #01 Adjust the maximum value of the low battery curve.
Adjustment #02 Adjust the minimum value of the low battery curve.
Aux function #1
On The hour counter of the chopper loads the MDI hour
counter.
Off If the hour counter of the chopper and the MDI have
different values, alarm “98” is displayed for one minute; if
the option is not set to “On” within the minute then the
chopper hour counter overwrites the MDI hour counter (0
hours if the chopper is new).
Check up done
On the programmed check-up has been carried out; the
maintenance hour counter and the “Check up needed”
alarm are reset.
Off checkup not done.
