Page 26

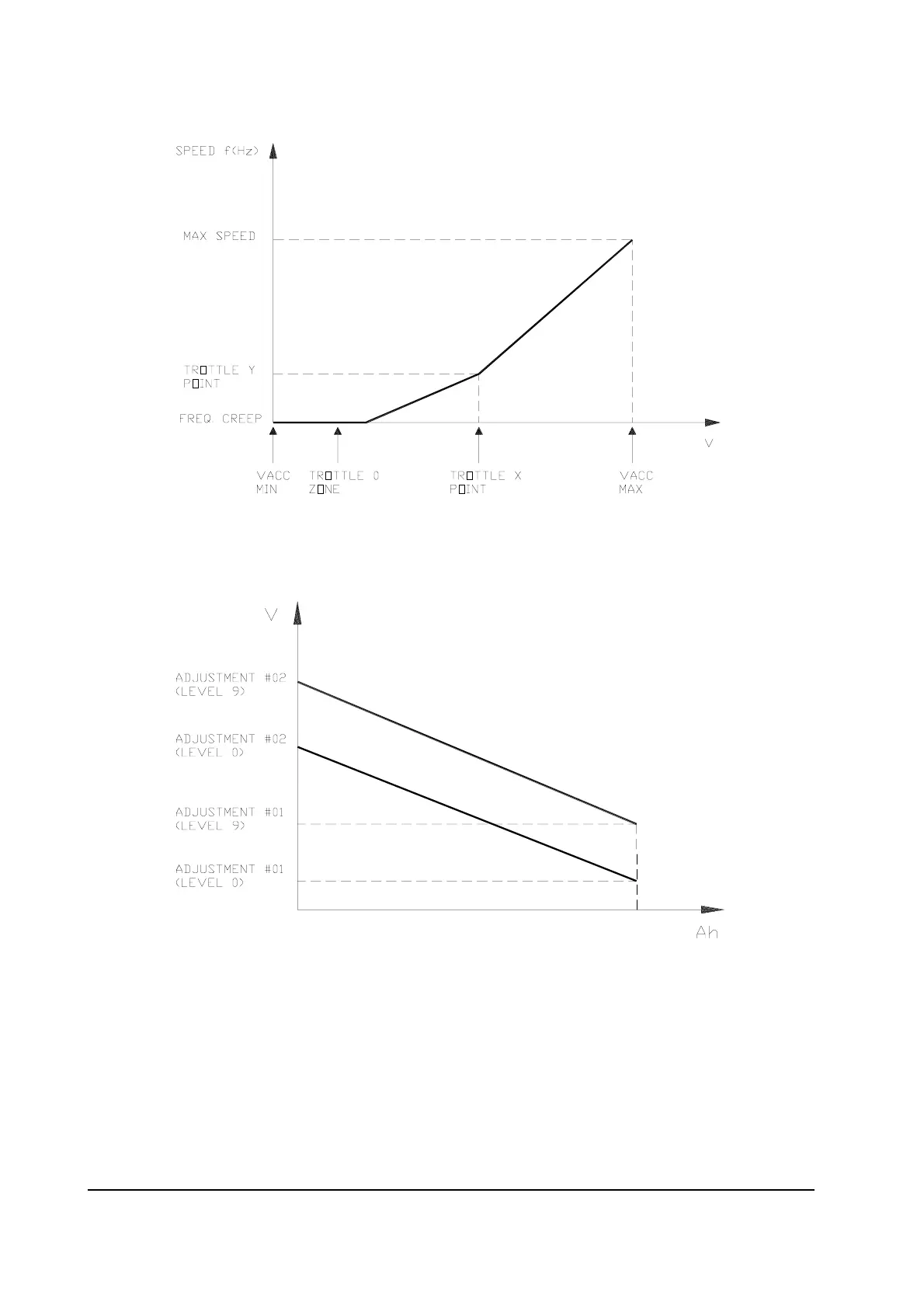

9 THROTTLE Y POINT: These parameter change the characteristic of the accelerator
input curve.
VACC MIN and VACC MAX are values programmable by the "Program Vacc" function.
10 ADJUSTMENT #01: adjust the upper level of the battery discharge table.
11 ADJUSTMENT #02: adjust the lower level of the battery discharge table.
12 LOAD HM FROM MDI: for an explanation of this point see the MDI instrument
handbook
13 CHECK UP DONE: for an explanation of this point see the MDI instrument
handbook
14 CHECK UP TYPE: for an explanation of this point see the MDI instrument
handbook
