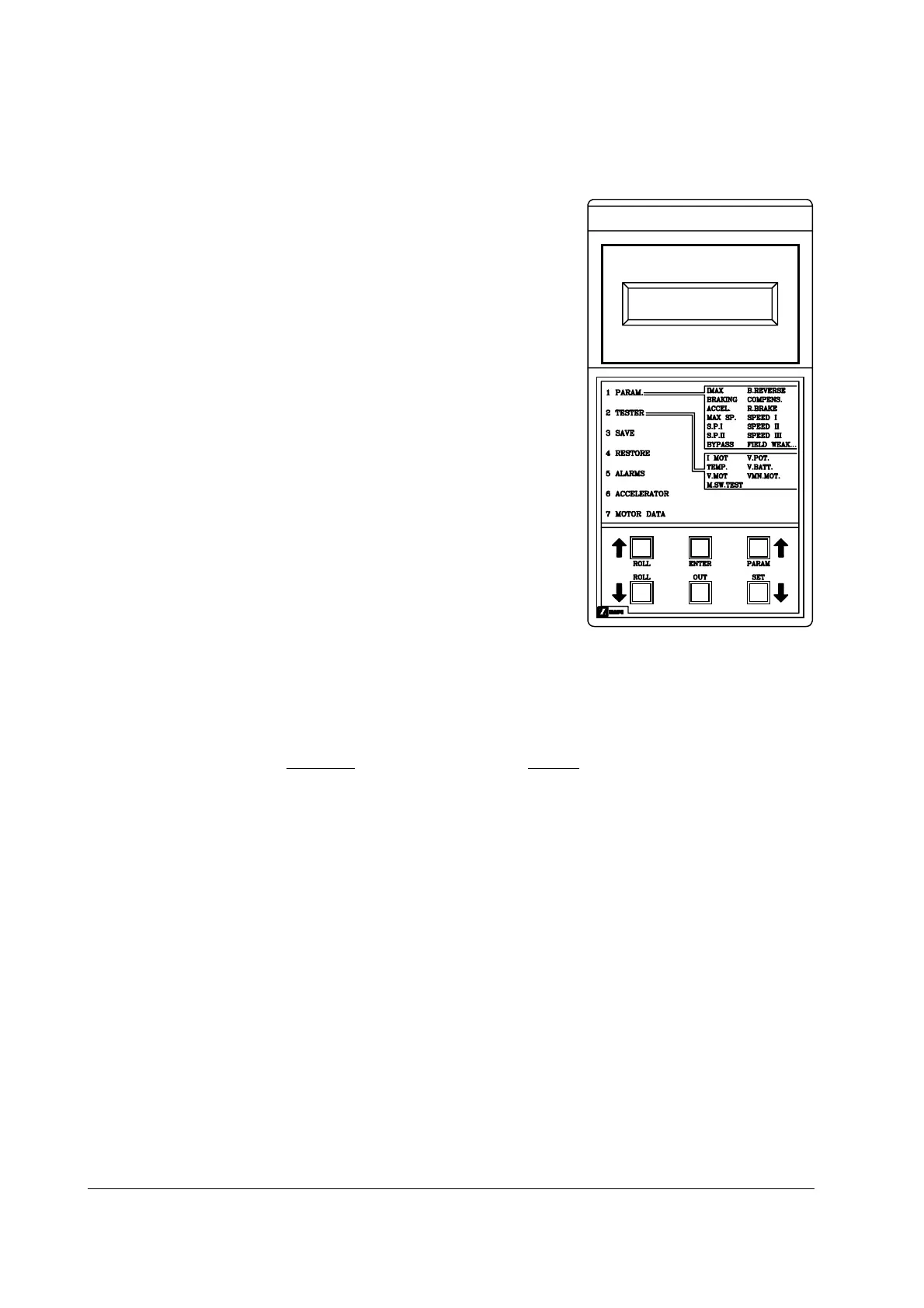

4.2 MODIFYING PARAMETERS USING THE DIGITAL-CONSOLE
The digital console displays the model type and its built-in hourmeter.
- SEL MODEL REGENER
STANDARD TR.
STANDARD PUMP
PUMP + HYDRO
- SEL OPTION: PIN G3 bypass / weak
SPEED free / check
BATTERY free / check
ARB free / check
RELEASE free / braking
HOURS running / keyon
PIN E1 cut b. 3 / quick I
PIN E4 seat / handle
PIN E2 cut b. 2 / backing
BRAKING normal / soft
- SEL BATTERY: 24V, 36/40/48V, 60/72/80V, 96V
fine adjustment
- AUX FUNCTION: CURRENT GAIN
HYDRO CONTACTOR
BIMOTOR CONTACT.
traction pump
- PROGRAM: ACCELERATION DELAY ACCELERATION DELAY
INVERS. BRAKING EV. ACCELER DELAY
RELEASE BRAKING DECELER. DELAY
PEDAL BRAKING EV. DECELER DELAY
CUTBACK SP1/SP2/SP3 I MAX.
AUXILIARY TIME HYD SPEED COARSE
COMPENSATION HYD SPEED FINE
BRAKING MODULATION HYDRO COMPENS.
I MAX. CREEP SPEED
MAX SPEED FORW WEAK DROPOUT
MAX SPEED BACK HYDRO TIME
CREEP SPEED SPEED COARSE 1/2/3/4
WEAK DROPOUT SPEED FINE 1/2/3/4
CURVE BRAKING SPEED COMP. 1/2/3/4
CURVE TIME MIN VALVE VOLT
BACKING TIME MAX VALVE VOLT
