Operations
Load Media in Rewind Mode
60
P1009874-001 Xi4 User Guide 3/12/09
To set up the printer in Rewind mode, complete these steps:
1. Remove the rewind plate from its storage location inside the printer.
2. Position the rewind plate so that the lip on the attached hook plate points down.
3. Insert the hook plate lip 1/2 in. (13 mm) into the lower slot in the side plate.
4. Align the upper end of the rewind plate with the matching upper slot in the side plate.
5. Slide in the rewind plate until it stops against the printer’s main frame.
6. Set the printer to Rewind mode. See Select Print Mode on page 93 for instructions.
Caution • While performing any tasks near an open printhead, remove all rings, watches,
hanging necklaces, identification badges, or other metallic objects that could touch the
printhead. You are not required to turn off the printer power when working near an open
printhead, but Zebra recommends it as a precaution. If you turn off the power, you will lose
all temporary settings, such as label formats, and you must reload them before you resume
printing.

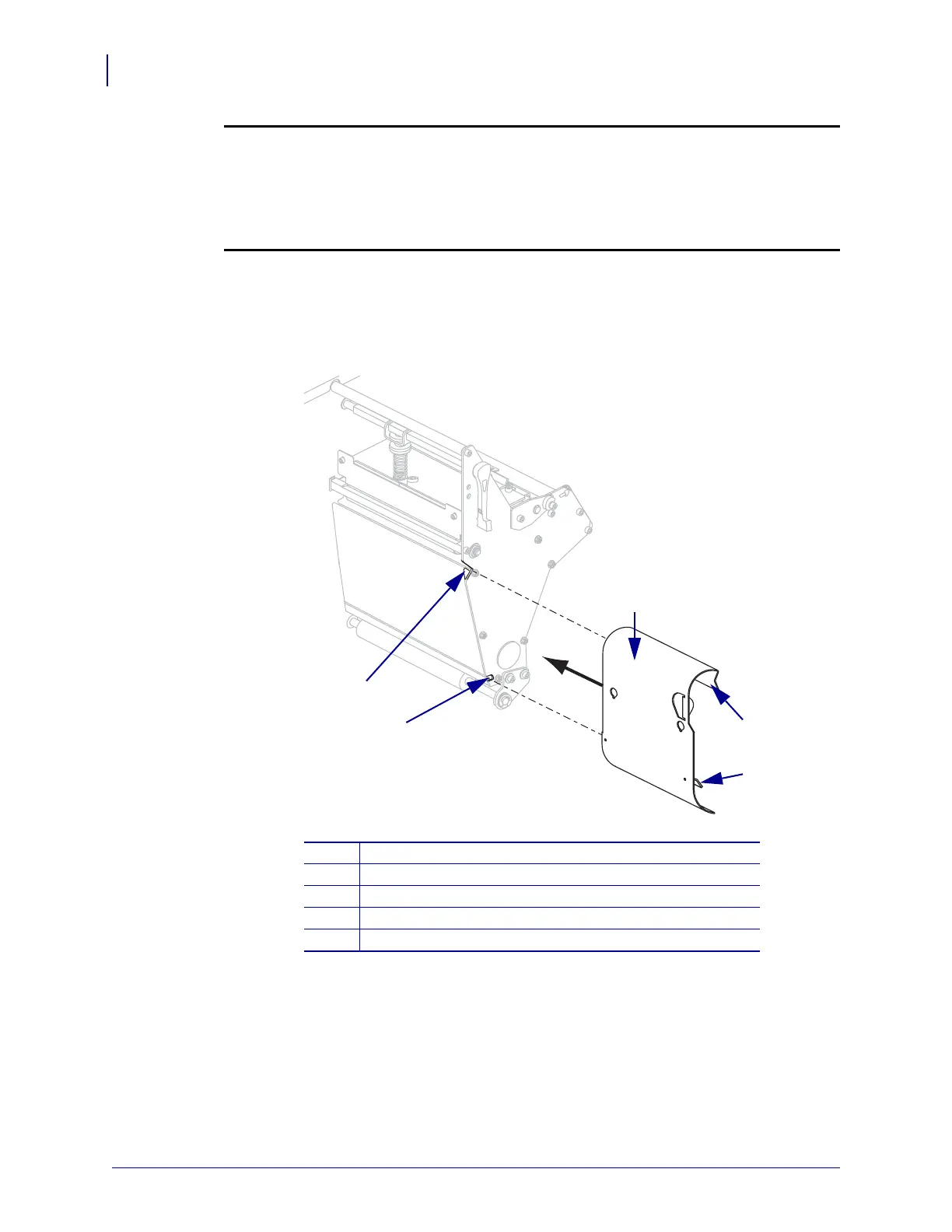

1
Upper slot
2
Lower slot
3
Rewind plate
4
Lip
5
Adjustable hook plate
