Operations
Load Ribbon
3/12/09 Xi4 User Guide P1009874-001

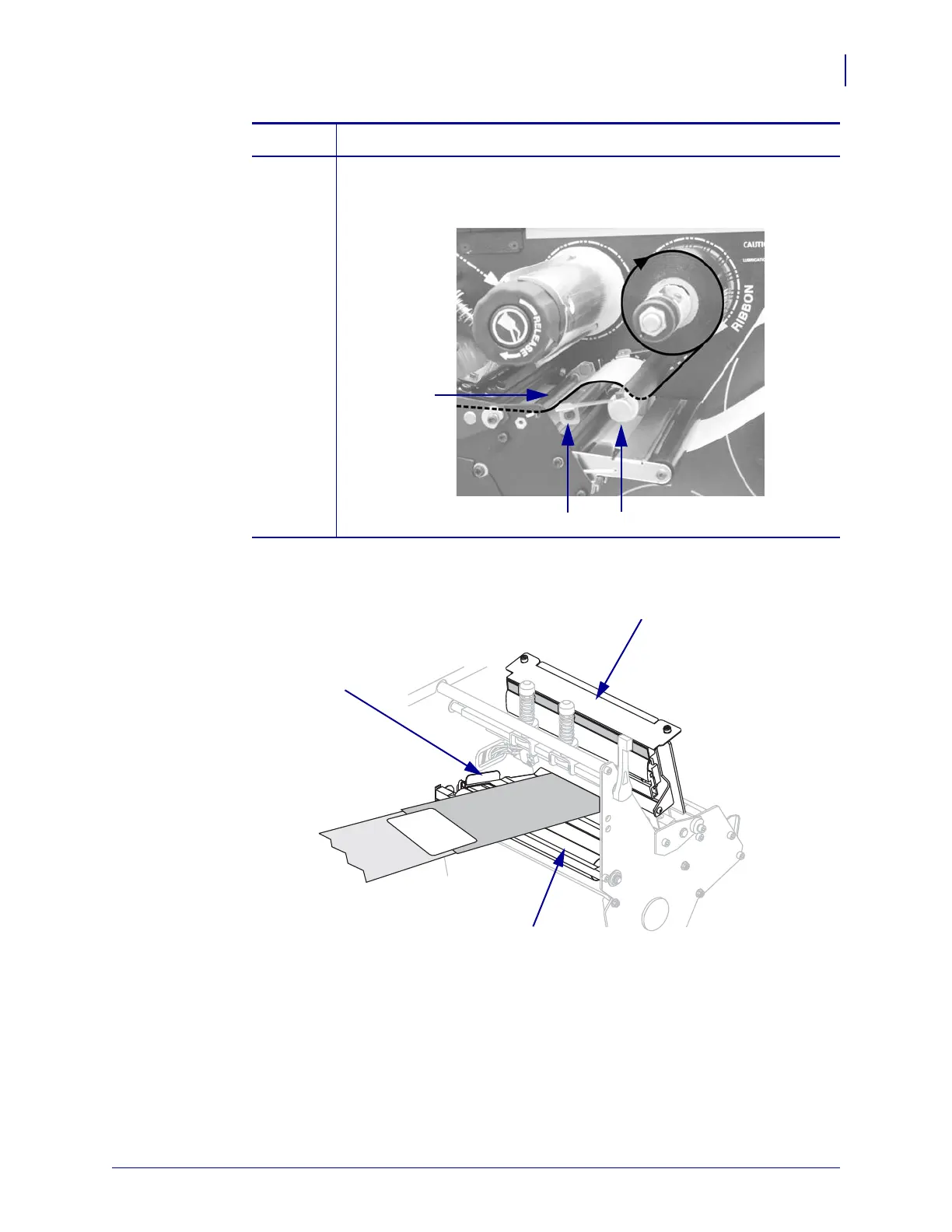

8. Push the ribbon leader forward until it passes under the printhead assembly (1), over the
snap plate (2), and then over the platen roller (3).
Yes
a. Thread the ribbon through the ribbon dancer. The ribbon must go
under the upper roller (
1) and then over the lower roller (2).
b. Thread the ribbon under the ribbon guide roller (3).
If... Then...
3
2
1
1
3
2
