Operations
Select or Adjust the Media Sensors
60
13290L-004 Rev. A S4M User Guide 6/15/09

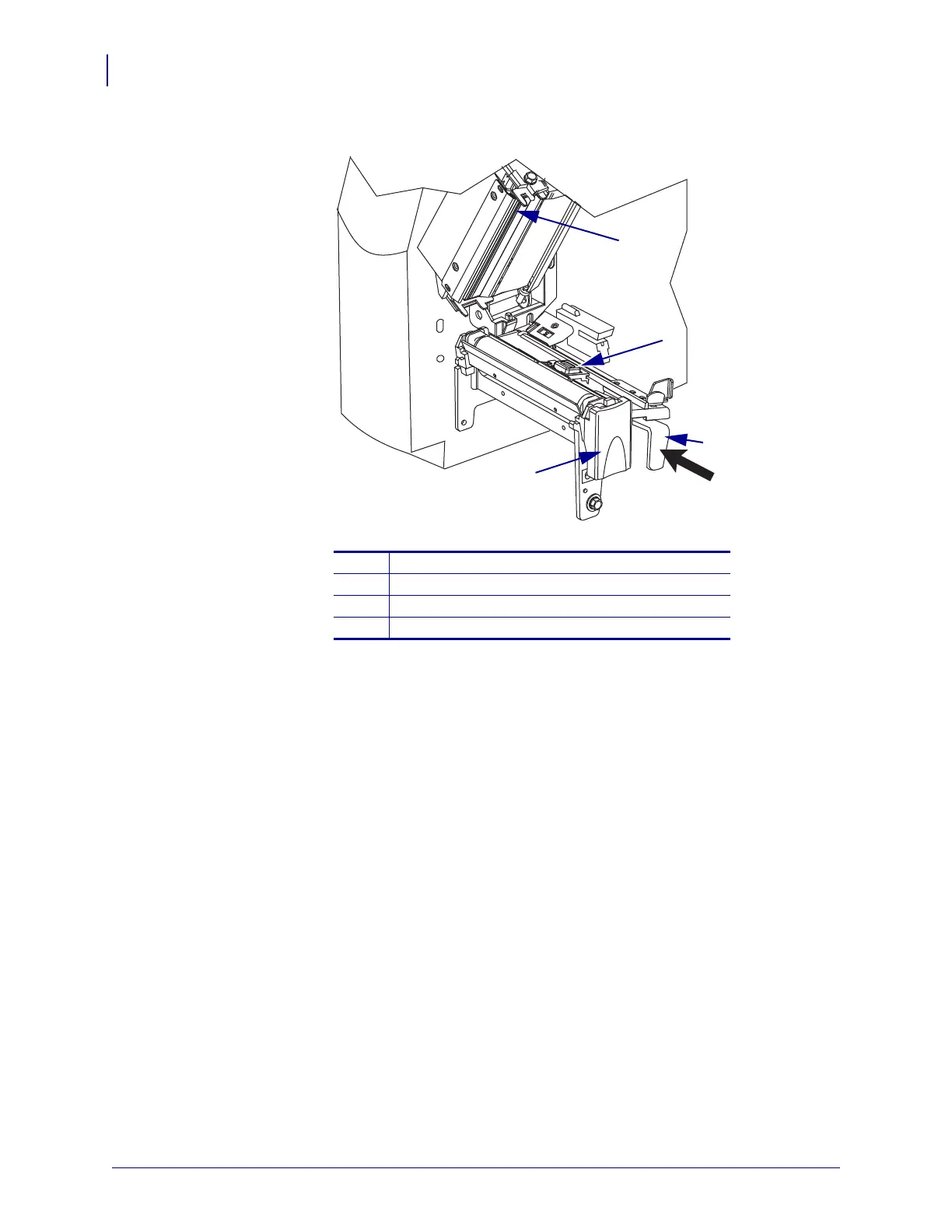

Figure 15 • Adjusting the Reflective Sensor
To adjust the reflective sensor, complete these steps:
1. See Figure 15. Press the printhead release latch.
2. Lift the printhead until it latches open.
3. Locate the reflective sensor positioning lever.
4. Move the reflective sensor positioning lever across the width of the media until the
reflective sensor aligns with the gap or notch.
5. Close the printhead assembly.
1
Printhead assembly
2
Reflective sensor
3
Reflective sensor positioning lever
4
Printhead release latch
1
2
3
4

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
