Zebra WT6000 - Page 20

Getting Started
20
1. Press the Power button to place the WT6000 in suspend mode.
2. Using finger tip, press the battery release latch toward the end of the battery.

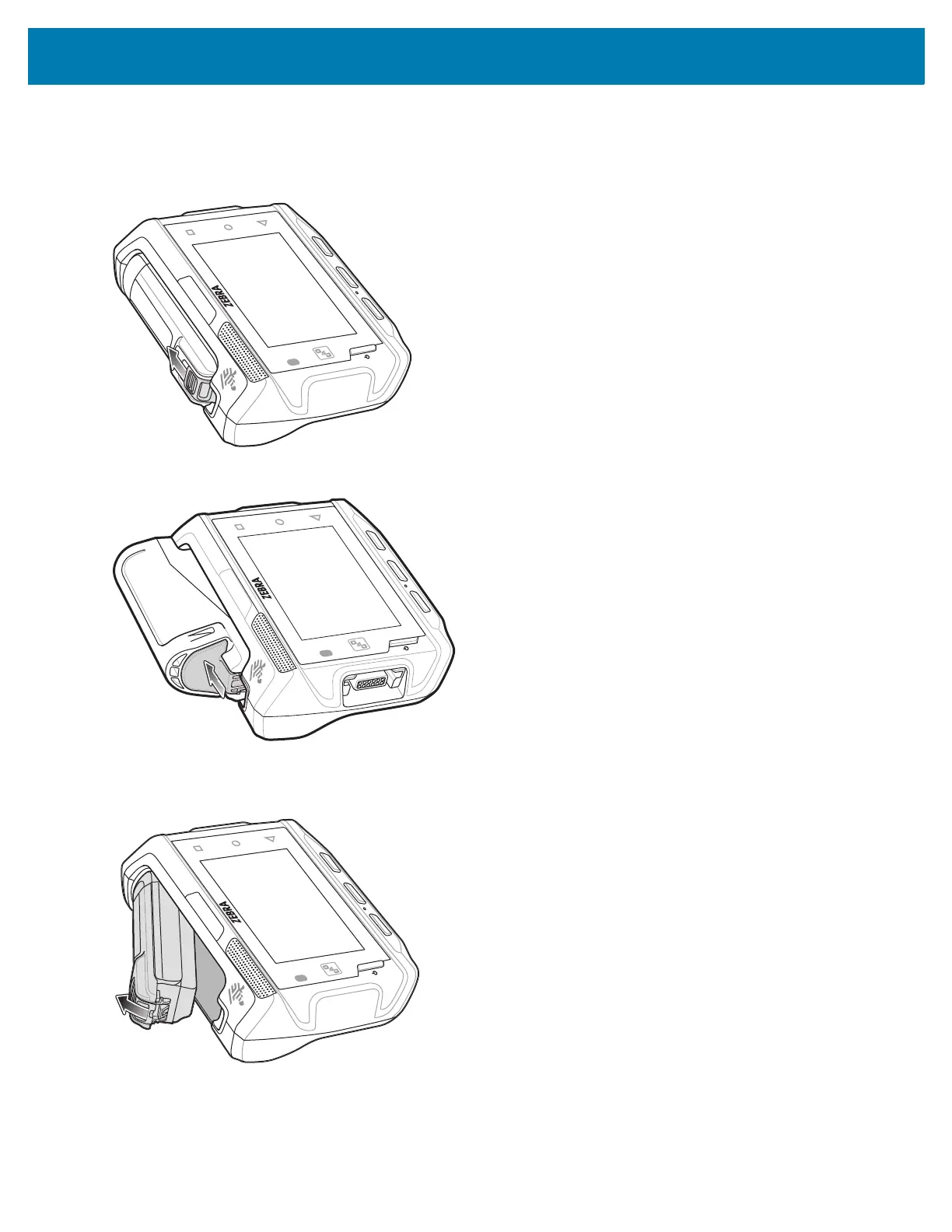

Figure 11 Pull Release Latch Back on Standard Battery
Figure 12 Pull Release Latch Back on Extended Battery
3. Lift the battery out of the battery well.
Figure 13 Standard Battery Removal
