NOTE: These functions are only usable if a multifunction steering wheel is present in the
vehicle and the ZENEC system is connected via an analogue LFB adapter cable + LIN bus or a
vehicle-specific CAN/Stalk interface.

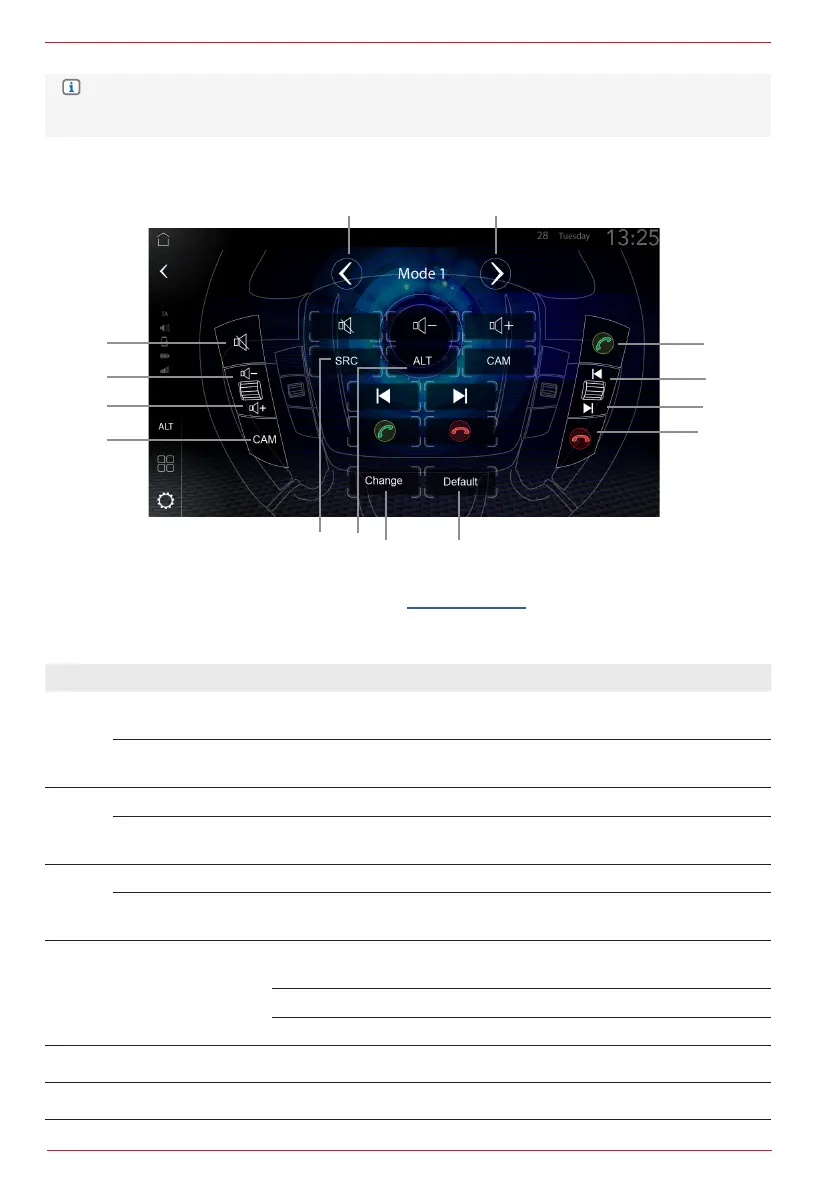

STEERING WHEEL REMOTE CONTROL TEACH-IN MODE 1 – MODE 1
Fiat Ducato III Series 7 (old platform)
8
A1 10 11
7
6
5
4
3
2
1 1
9
A2
The ZENEC system is also preconfigured with a CAN-IR Stalk interfaces for vehicles in the Fiat
Ducato III Series 7 platform, see compatibility list www.zenec.com, but the LFB connection must be
changed from “Mode 2” to “Mode 1”, since Mode 2 is preset as standard in the factory settings, for
direct use of new vehicles based on the Fiat Ducato III Series 8 & 9.
Number Description / function
Mode changeover
buttons:
Tap to change the analogue mode.
Possible
settings:
Mode 1 = Fiat Ducato III Series 7;
Mode 2 = Fiat Ducato III Series 8 and 9.
Radio source Press to jump forward a radio station.
Media source
Press to jump forward a track.
Hold down to start fast forwarding of the track.
Radio source Press to jump back a radio station.
Media source
Press to jump back a track.
Hold down to start fast rewinding of the track.
with LFB (Key1/Key2 - mini-ISO) use: Press to call up the camera
source.
CAM Press again to switch between camera 1, camera 2 and camera 3.
Hold down to start the Android Auto or CarPlay voice control.
Press to increase the volume.
Press to reduce the volume.
To Next Page
