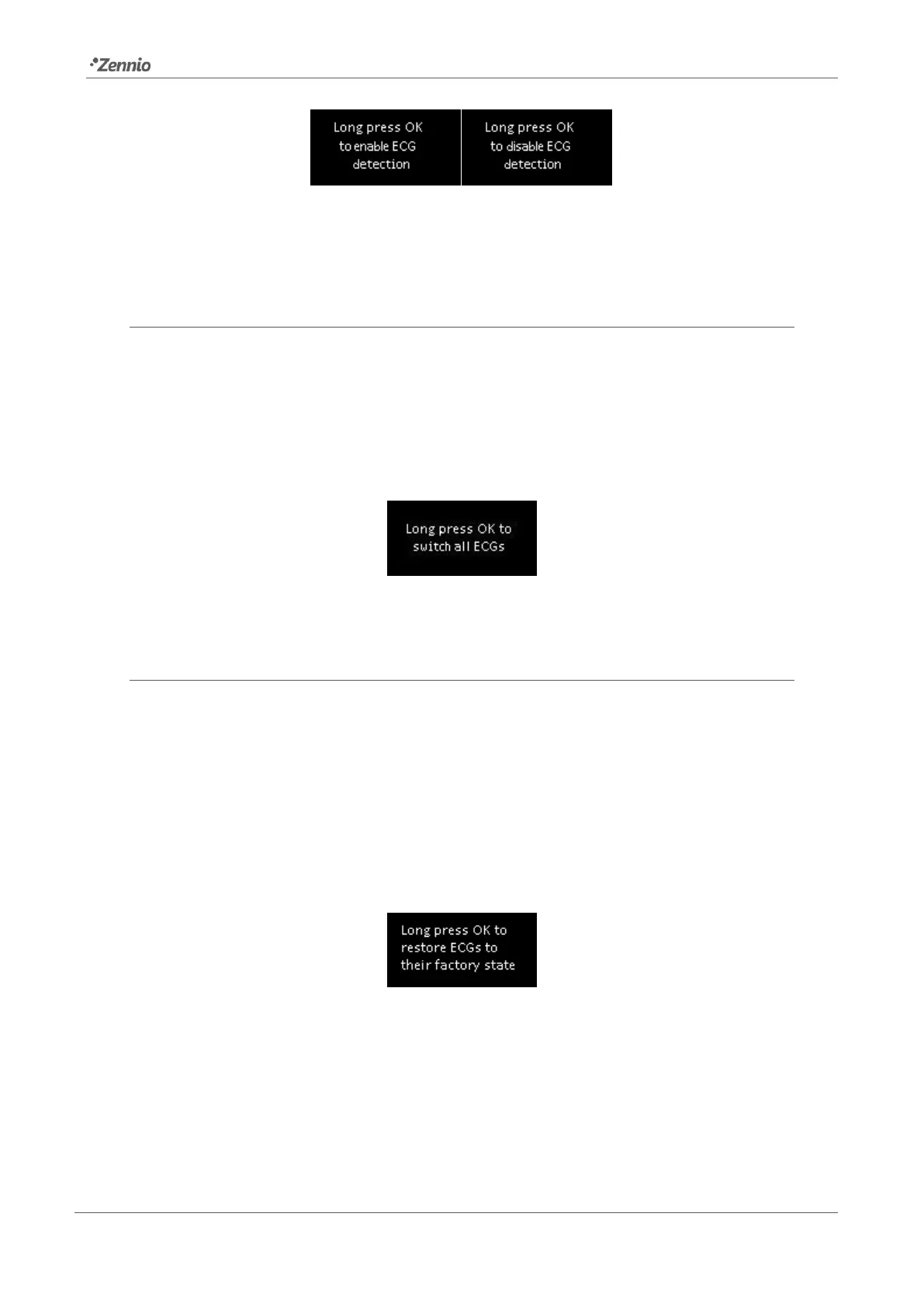

Figure 37 ECG Detection
Thus, a long press on the OK button will apply the opposite state to the one detected.
2.8.4 SWITCH ALL ECGS
This submenu allows switching on/off all the ballasts connected to the installation with a
long press of the OK button.
If all groups are switched on, ECGs will switch off. In other case, all groups will switch
on. ECGs with no group assignment or no assigned address will not be switched.
Figure 38 Switch All ECGs
2.8.5 RESET ALL ECGS
This submenu allows resetting all the ballasts connected to the bus to their defaults, thus
removing their address assignments, after which DALIBOX Interface 64/32 will proceed
with the automatic ECG detection and address assignment process after one
minute. This delay allows the integrator disconnect from the DALI bus any ballasts that
may not need to be assigned a new address.
This process does not alter the group assignments.
Figure 39. Reset All ECGs Submenu
After a long press on OK, the “Restore ECGs?” message will show. To confirm, please
short-press OK and the process will start. Otherwise, please press on any other button.
