Zida TX98-3D - CPU Installation

Motherboard Installation
Page 4
CPU Installation
The motherboard provides a 321-pins, type-7, ZIP socket. The CPU should have a fan attached to it to
prevent overheating. If this is not the case then purchase a fan before you turn-on the system.
1
90
Socket 7
Intel
Pentium
2
45 degree Index
corner
CPU
COOLING
FAN
+12V (Red)
Ground (Black)

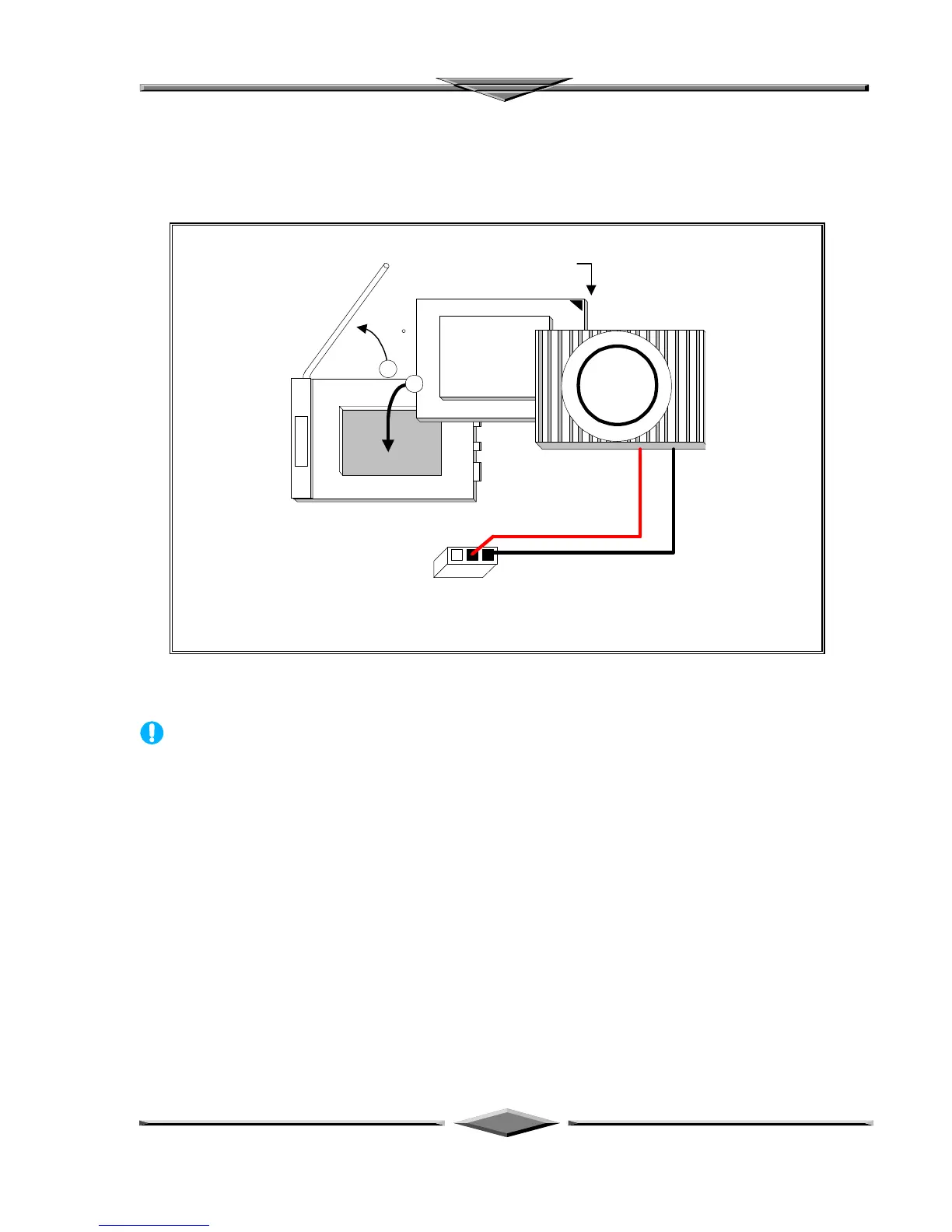

CPU Installation Diagram
CAUTION
Without a effective cooling fan, the CPU can overheat and cause damage to both the CPU
and the motherboard.
