Motherboard Installation
Page 5
INSTALLING SYSTEM MEMORY (RAM)
The motherboard supports two 72-pin SIMMs (Single-In-Line Memory Modules) from 8MB up to 256MB
memory size and two 168-pin DIMM. The four 72-pin SIMMs sockets are divided into two memory
banks, Bank 0 and Bank 1, and each bank has two SIMM sockets which accept either FPM or EDO
DRAM module.
1
3
1
3
2
Push upward
to lock
45 degree
insert into
the socket
To remove the
SIMM/s, pull the
retaining latch on
both ends
Notched end towards
the Keyboard
connector side
Retaining latch

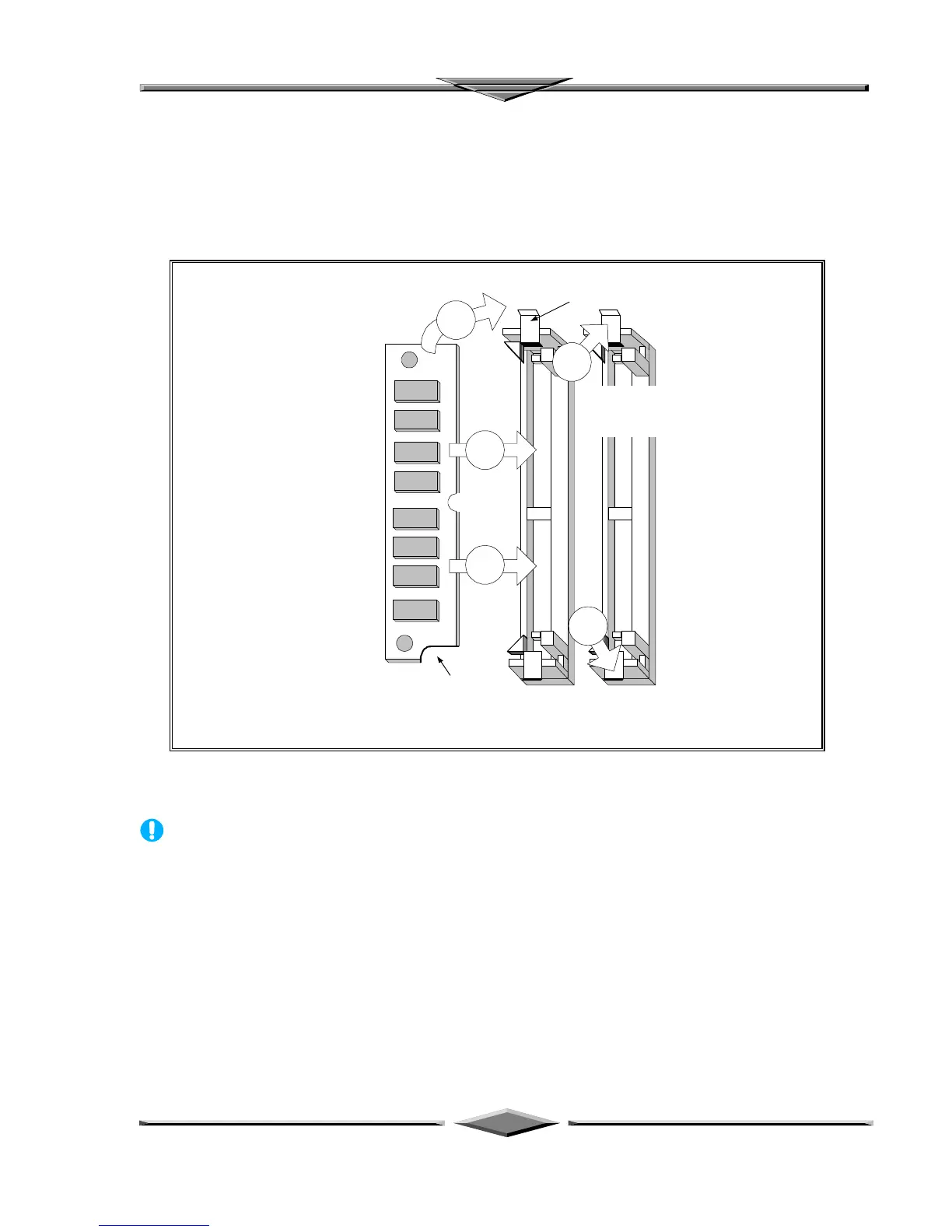

SIMM Module Installation Diagram
CAUTION
Each bank must have the same size and type of memory module installed in pairs.
