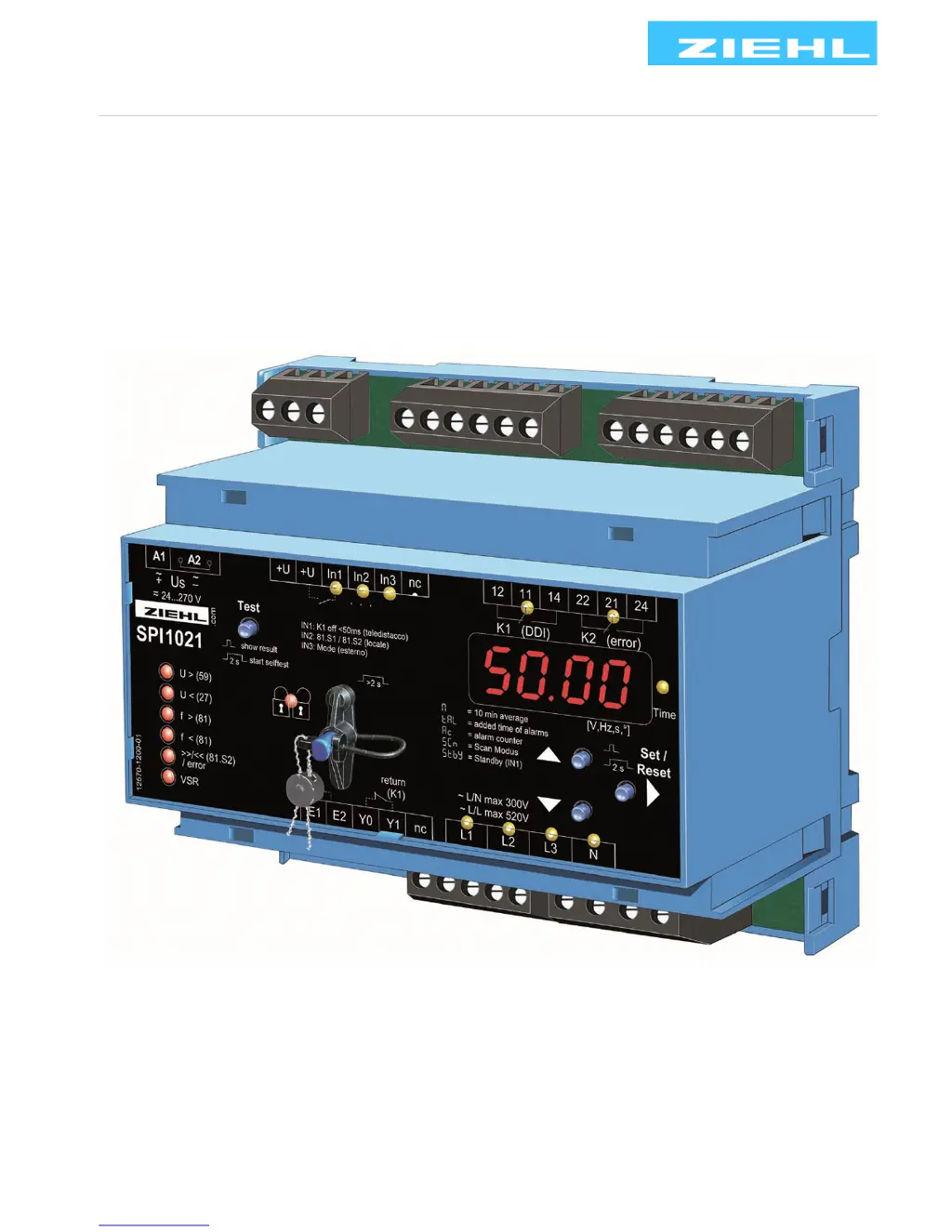

To Next PageTo Next PageWhat to do if 8EEEE8 or 8-EEE8 appears on my ZIEHL Relays display?
If the ZIEHL Relays display shows 8EEEE8 or 8-EEE8, it means the measured voltage, frequency, or vector surge is either too high or too low. Ensure that you comply with the specified measurement range.
What to do if ZIEHL SPI1021 Relays show 8Err78, LED K1 flashes, and K2 is released?
If the ZIEHL Relays display shows 8Err78 after 2 automatic reconnection attempts, and LED K1 flashes while K2 is released, it indicates an error with the section switch. This could be due to incorrect connection, a faulty switch, or operation by a third-party switch. If feedback contacts are not connected, set - 8rel .8 8trel.8 8 off8. If feedback contacts are connected, check for correct connection. Set the turn-on time of the section switch under 8trel.8. Perform a reset interrupt control voltage for >5s.
Why does 8Err88 appear on my ZIEHL Relays display?
If the ZIEHL Relays display shows 8Err88, it indicates a hysteresis error. The upper threshold value must be higher than the lower threshold value. Check the threshold values.
How to fix 8fail8 error on ZIEHL Relays?
If the ZIEHL Relays display shows 8fail8 as a self-test result, it means the self-test has failed. Check all measured voltages and the feedback contact (see 8Err78).
What does 8Err58 mean on my ZIEHL SPI1021 Relays and how to fix it?
If the ZIEHL Relays display shows 8Err58, it indicates an error with the internal interface. Reset interrupt control voltage for >5s.
How to resolve 8Err98 error on ZIEHL Relays?
If the ZIEHL Relays display shows 8Err98, it indicates a parameter error. Reset to factory settings; see 'Program setup'.
What to do if my ZIEHL SPI1021 device cannot be configured?
If the ZIEHL Relays cannot be configured or only the limits can be configured, it means the code lock or sealing is activated. If you have problems with the code lock (pin forgotten), switch off the lock and reset the pin to 504 by keeping the Set key pressed while switching on the mains until 8Code8 / 8 off8 appears in the display.
Why does 'A time expires' show on my ZIEHL SPI1021 display?
If 'A time expires' appears on the ZIEHL Relays display, it indicates that an OFF-delay time 8dof 8 is running and being counted down (shortest one first). Wait until the time has expired; depending on the setting, several times may elapse one after the other.
What does 8stby8 mean on my ZIEHL Relays display?
If the ZIEHL Relays display shows 8stby8, it indicates standby mode because E1-E2 is closed. Check parameter 8 vsr.8.
Why are the voltage values implausible on my ZIEHL SPI1021?
If the ZIEHL Relays show implausible voltage values, it means Pr is selected with N, but N is not connected. Select Pr without N or connect N.
General| Input Voltage | 24 V DC |
|---|---|
| Mounting | DIN Rail |
| Switching voltage | 250 V AC |
| Coil voltage | 24 V DC |
| Insulation resistance | 100 MΩ |
| Functions | Monitoring |
| Contact form | 1 CO (SPDT) |
| Operating temperature | -25 to 60 °C |
| Electrical life | 100, 000 operations |
| Dielectric strength | 4 kV |
Details on the Test, Set/Reset, and Up/Down buttons for device operation.
Detailed breakdown of the device's input and output terminal connections.
Guide to selecting and setting the appropriate operating program for the device.
Procedures for enabling code lock and sealing to protect device settings.
