ZIEHL SPI1021 User Manual

SPI1021 12570-0701-07 Page
7
/ 24 www.ziehl.de

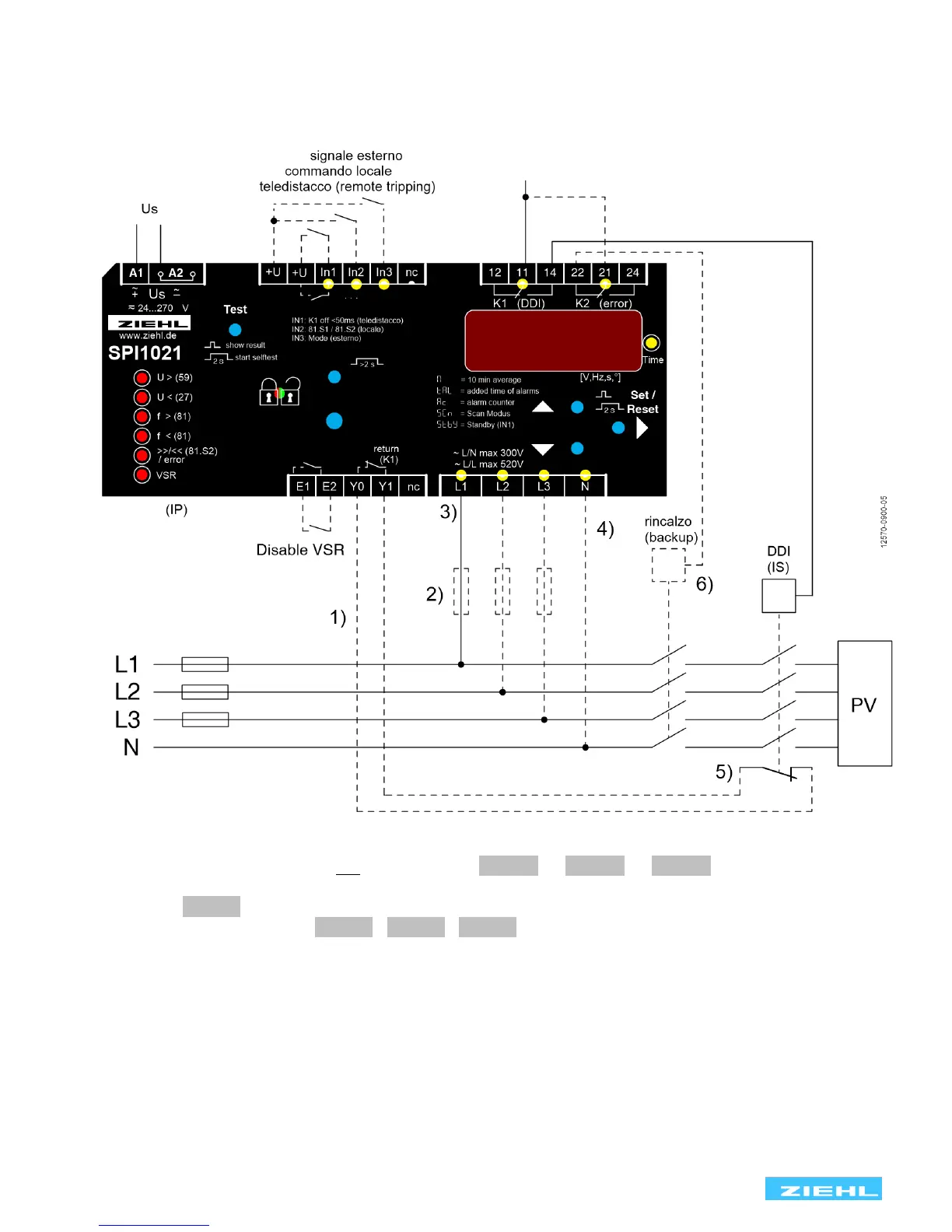

5 Connection diagram
1x PV, 2x section switch
1) Feedback contacts not connected set 8rel .8  8trel.8  8 off.8
2) Fuses only when line protection necessary, e.g. 3x16A
3) 8Pr 38 Phase connect to L1, L2 and L3 are not connected
4) N connected set 8Pr 18 , 8Pr 38 , 8Pr 48
5) NC- or NO-contacts can be connected, automatic detection when switching on
6) must be connected for plants ≥ 20kW
