ZKTeco F18 User Manual

F18 User Manual V1.0
- 18 -

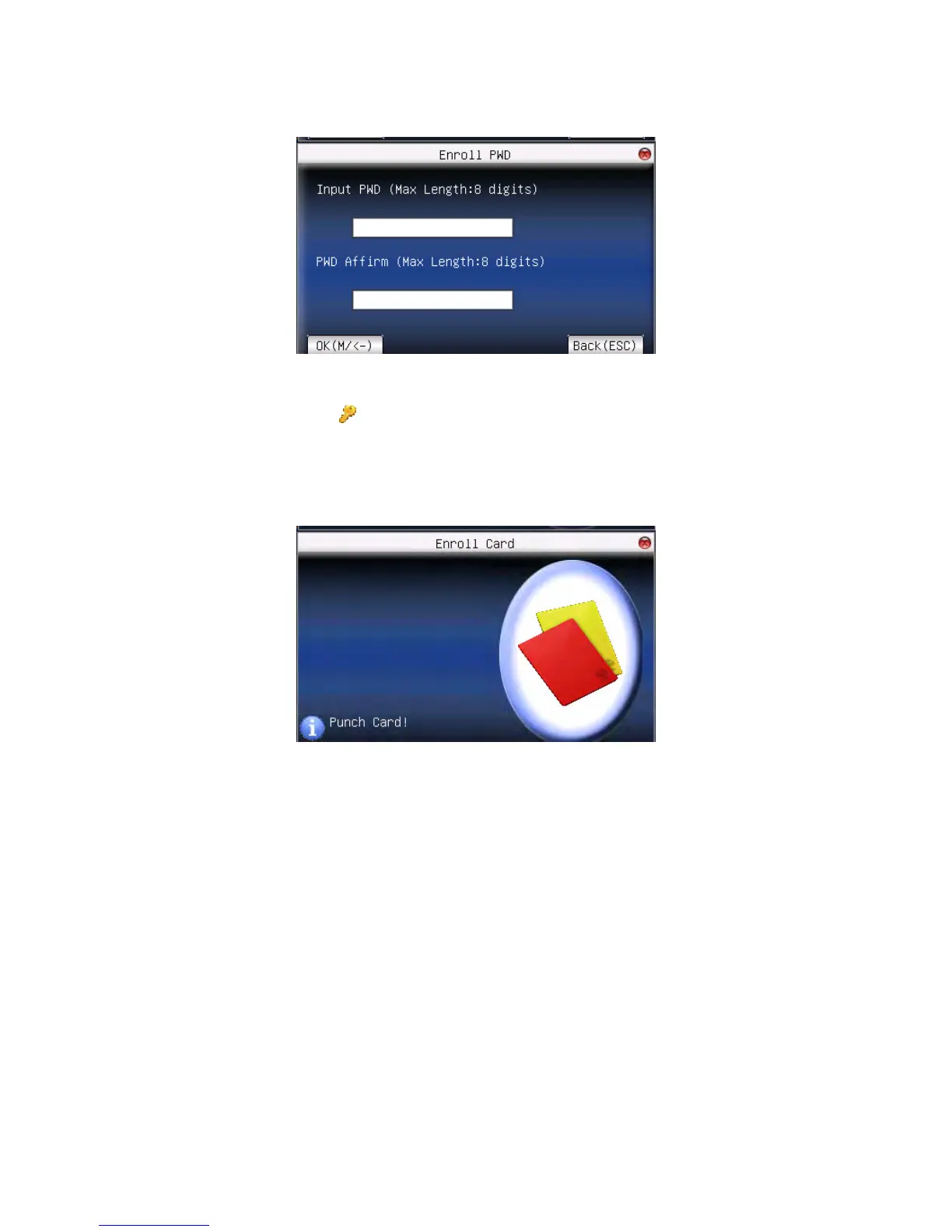

Enroll password
Input password (1～8) according to device’s prompt, and press OK to
verify it. Then press OK save it or press ESC to exit without saving it.
After saving,
display will be on the device, which means the
password has been set.
Enroll card
★
Scroll ▲ / ▼keys to locate the cursor on "enroll card" button, and press
"OK" to enter the registration card
Slight ware the card near the induction area, after the equipment found
the card number, press OK key to save, press to give up, then remove
the card from the equipment, after the "Enroll successfully" the card

ZKTeco F18 Specifications

General

Type	Basic access control reader
Product color	Gray
Number of users	1 user(s)
Access code reader	-
Fingerprint reader	Yes
Authentication type	Biometric
Display type	TFT-LCD
DC voltage range	0 - 12 V
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	183 mm
Width	80 mm
Height	42 mm
