TS5000A Tripod Turnstile
User Manual
Page | 14 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Functions introduction of wiring and terminal 3.3

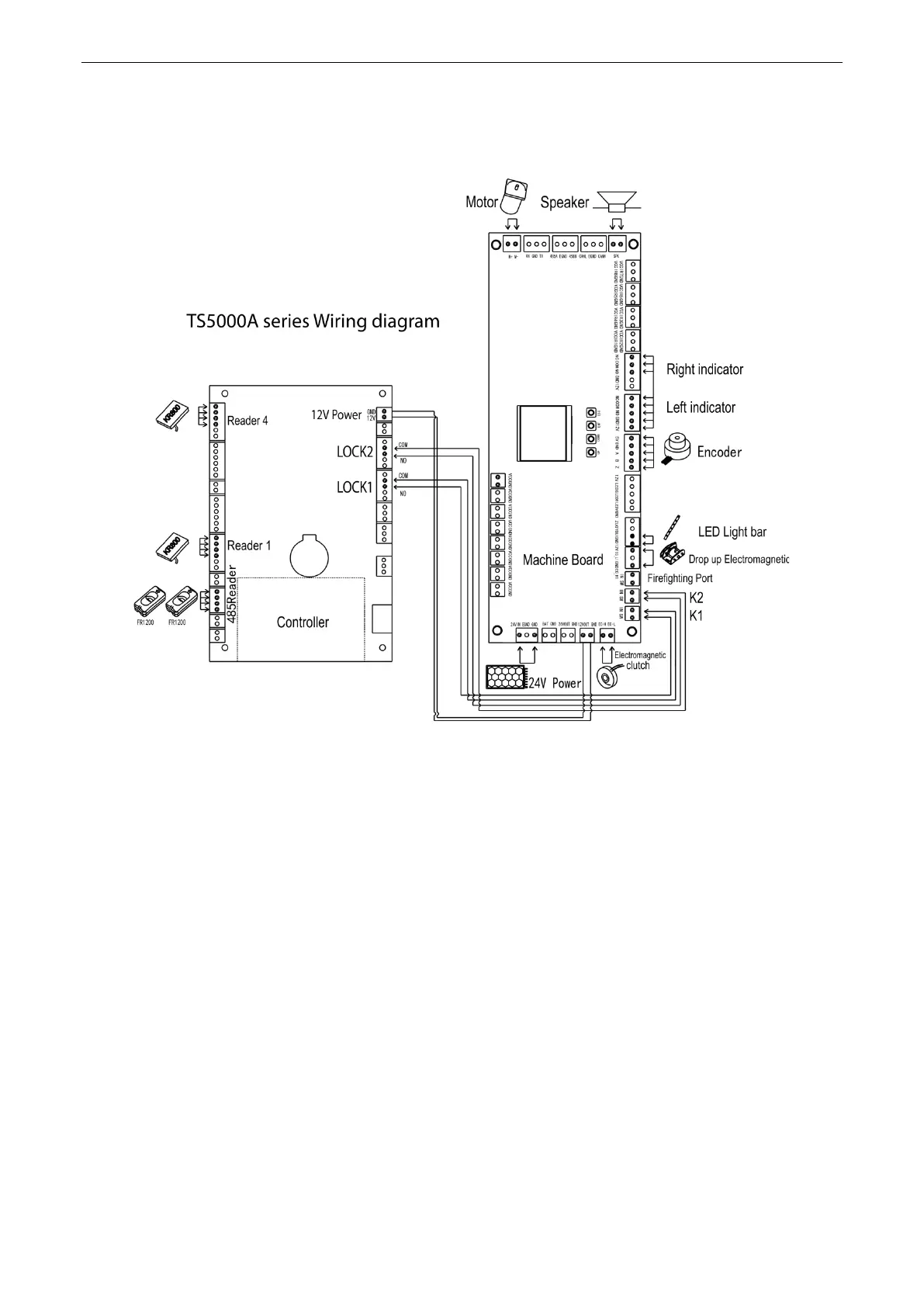

1. Wiring diagram
Figure 3-1
2. Functions of terminals at each zone:
System power input: The city power provides a 24V voltage to the master panel through the power
adapter.
Access control power supply: The city power provides a 12V voltage to the access controller through the
power adapter.
Right open (DOWN button), left open (UP button): Controls the barrier to open to left or right side.
Connecting cable of the motor: It is connected to the motor and supplies power to the motor.
Electromagnetic clutch: It is connected to the electromagnet inside the core component to prevent
collision and pinch.
Speaker: Used for alarm notification.
Drop up Electromagnetic: Controls the barrier to up and down.
